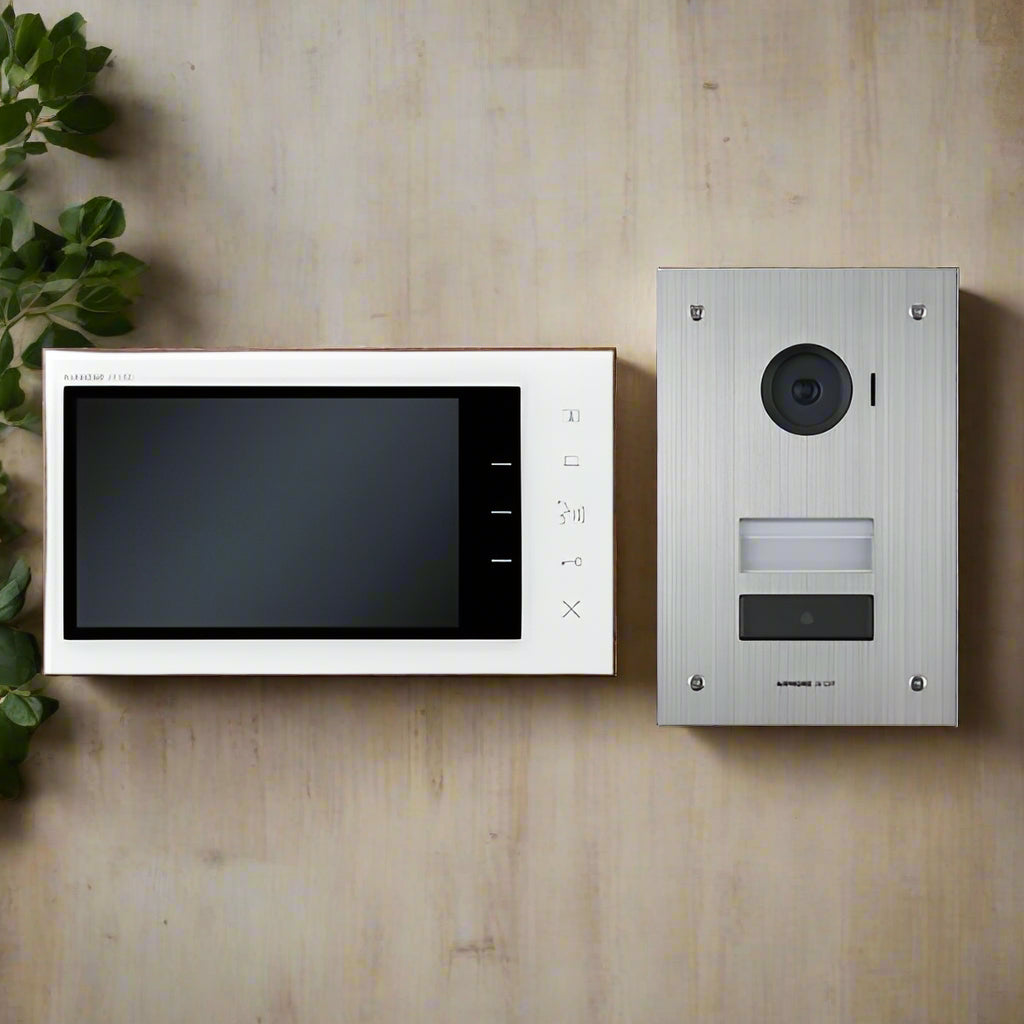

Aiphone Intercom Kit Flush Mounted Door, JVS-1F

Enhance the security and convenience of your home or office with the Aiphone JVS-1F Intercom Kit. Featuring a sleek, slim design, this high-quality system provides hands-free communication and video identification for seamless access control.

The fixed camera ensures clear visuals on the internal screen for reliable monitoring. Designed for durability, the flush-mounted stainless steel door station offers a modern, secure, and weather-resistant solution, making it ideal for any environment.

In the Aiphone Video Intercom Kit:

• 1 x 7" Touch Screen Monitor, JS-DV
• 1 x Flush Mounted Mounted Door Station, JV-DVF
• 1 x Power supply, PS-2420UL

Supports up to 2 intercom monitor screens

Aiphone JVS-1F Intercom Kit – 7” Hands-Free Video System

Key Features:

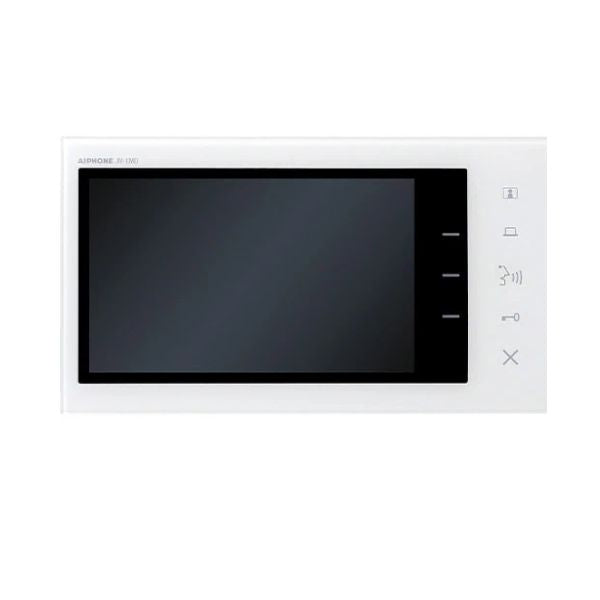

✅ Intercom Internal Monitor Station (JV-1MD)

• 7” screen for clear video identification and monitoring
• Slim, modern design to complement any space
• Hands-free communication with push-to-talk (simplex) option

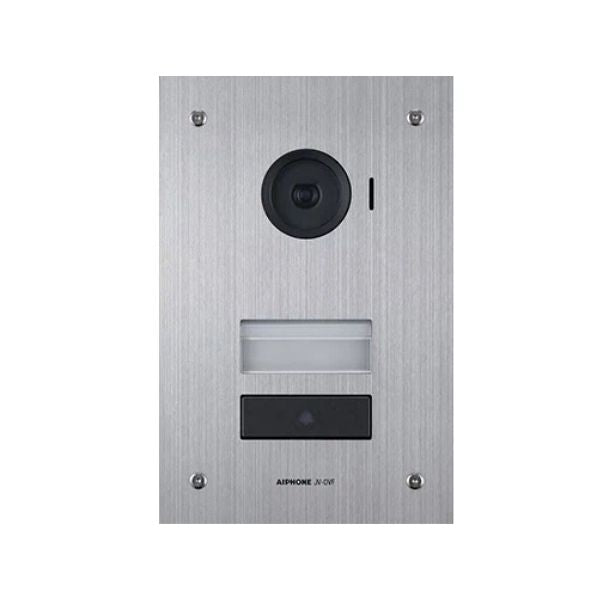

✅ Intercom Door Station (JV-DVF)

• Fixed camera for clear video feed
• Weather and vandal-resistant for enhanced durability
• Durable stainless steel
• Flush mount with back box (included), or surface mount with SBX-DVF
• LED illumination activates in low-light conditions
• Backlit call button and nameplate for easy visibility

✅ Power Supply (PS-2420UL)

• Reliable 24V DC power source

✅ Optional Expansion

• Supports up to 2 additional intercom monitor room stations

Technical Specifications:

🔹 Power Source: 24V DC (PS-2420UL)
🔹 Door Release Options:

• Master/Expansion Station & Door Station: N/O dry contact, 24V AC/DC, 1A
• Second Door Station Output: N/O wet contact, 500mA (max), 12V DC

🔹 Communication Modes:

• Hands-free (VOX) or push-to-talk (simplex)

🔹 Wiring Requirements:

• Door Station to Master Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
• Door Station to Expansion Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
• Expansion to Master Station (without door release): 4-conductor, mid-cap, solid, non-shielded (Aiphone #871804 OR 2 runs of Aiphone #871802)
• Expansion to Master Station (with door release): 6-conductor, mid-cap, solid, non-shielded (Aiphone #871802 + #871804 OR 3 runs of Aiphone #871802)

🔹 Maximum Distance:

• Door Station to Master Station: 165' (22AWG) / 330' (18AWG)
• Door Station to Expansion Station: 165' (22AWG) / 330' (18AWG)
• Expansion Station to Master Station: 165' (22AWG) / 330' (18AWG)
• Power Supply to Master Station: 16' (22AWG) / 33' (18AWG)

Designed for both residential and commercial environments, the Aiphone JVS-1F Intercom Kit provides a reliable and user-friendly solution for secure communication, complete with video monitoring and access control features.
