Description

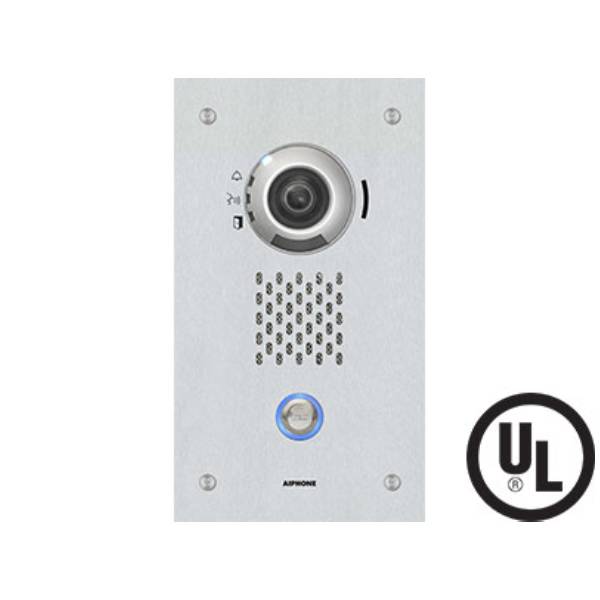

The IX-DVF is a SIP compatible IP Video door station, it is vandal resistant, features a stainless steel faceplate and is a flush mounted design.
Model: IX-DVF Door Station
The Aiphone IP Video Door station is compatible with the IX series, It is UL certified.
SIP - Peer to Peer- Backwards Compatible- ONVIF®
Door Station Features
- Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
- ONVIF® Profile S Compliant
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- 1.23 megapixel fixed color video camera
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- IP65 rated, weather resistant
- Stainless steel faceplate
- 2 contact outputs
- 6 trigger inputs
- 2-year warranty!
Shop CTC Security for best deals on Aiphone Door Stations
Specifications
- Power Source
- PoE (IEEE 802.3af class 0)
- Power Draw
- 5.28 Watts
- Camera
- ⅓" CMOS 1.23 megapixel
- Min. illumination
- 5 lux
- Audio Codec
- G.711 (μ-law, A law), G.722
- Video Codec
- H.264/AVC, motion JPEG
- Protocols
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security
- IEEE 802.1X
- Operating Temp
- -40° - 140°F (-40° - 60°C)
- Protection Rating
- IP65, IK08
- Dimensions
- 10-7⁄16" H x 5-⅞" W
- Mounting
- Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless Steel surface mount box
Downloads
Aiphone IP Video Door Station Installation Manual
Warranty
Aiphone Door Stations are covered by a 2 years Manufacturer Warranty from the date of purchase.
CTC Security will cover postage for all replacement parts, but will not cover labour for installation cost.
CTC Security offers a 1 year warranty on labour when the system is installed by us.
