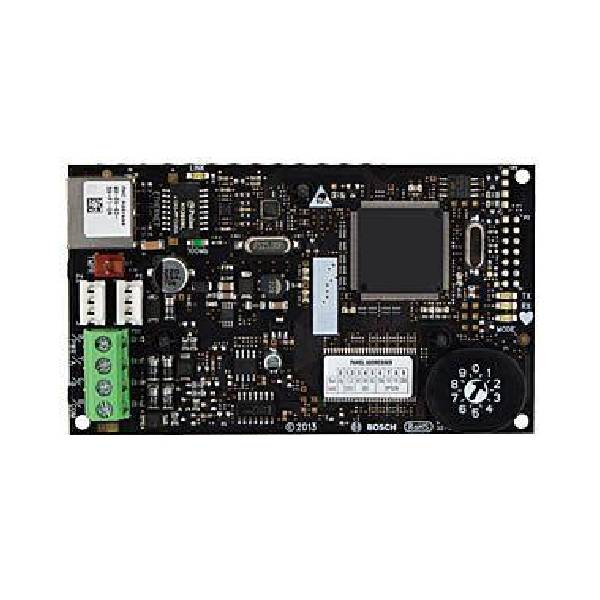

Bosch B426-M Cloud Enabled Ethernet Communication Module for Bosch 2000/3000

BoschSKU: F.01U.332.307 B426-M

Sale price$177.69


Bosch 3000 ethernet communication module B426 for Bosch alarm system Solution 2000 & 3000, connection of alarm system to wireless internet within your home, allow you to arm/disarm via a mobile app.

Model : B426M

Remote Security Control Plus (RSC+) is a new app available for the Solution 2000 & 3000 panels with Arming and disarming from your mobile phone.

The B426M Module will send you a Push notification if an alarm event was to occur.

You can set the B426M up to let you know when the system has been armed and disarmed.

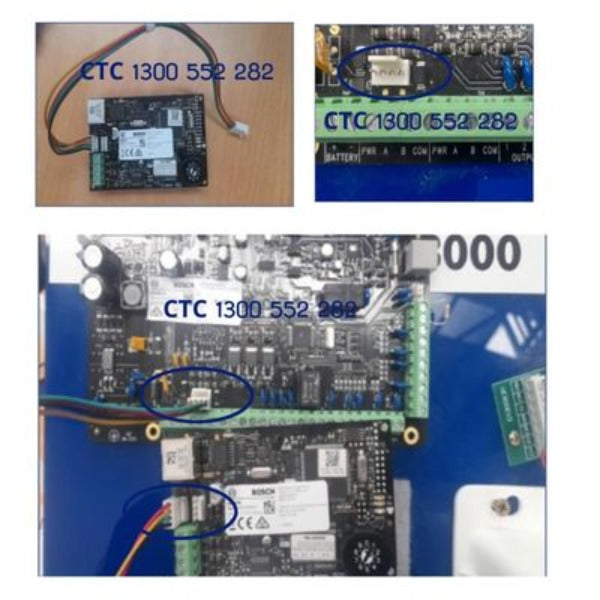

The B426M Module is a hard wired connection from your Router to the Alarm panel.

When used with the new B426M Cloud Connect communications modules, the RSC+ app becomes simple to setup .

Simply plug the panel into an existing network connection, enable cloud connect, then scan the onboard QR code to get the panel online.

There is no need for IP addressing or complicated configuration of ports on the router if there's an internet connection, you'll be able to get online instantly.

To add more users, it's simply a case of scanning a QR code and entering your code.


  • Full two-way IP event reporting with remote control panel programming support.
  • 10/100 Base-T Ethernet communication for IPv6 and IPv4 networks.
  • NIST-FIPS197 Certified for 128-bit to 256-bit AES Encrypted Line Security.
  • Plug and Play installation.
  • Advanced configuration by browser or RPS with compatible Bosch control panels
  • The latest module in the Bosch 3000 line up allows easy connectivity and notifications to the Bosch RSC+ app.
  • No port-forwarding or network management required

How to Enable B426-M IP Module in 6 Steps from Keypad

  1. Enter installer code followed by the # key to enter programming mode (1234#)
  2. Enter 0081 followed by the # key.
  3. Enter 3 followed by * then #.
  4. Enter 4456 followed by the # key.
  5. Enter 4 followed by * then #.
  6. Enter 960 followed by the # key

The module is now enabled on the system, please create account through Bosch RSC+ app and proceed to scan QR code located with supplied module to add device.

Panel Must be version 2.0 to Run this B426M, if you Panel is a version 1 or 1.2 please contract us to find out how you can have your firmware upgraded.

App Specification

Remote Security Control Plus (RSC+) is the latest app available on IOS and Android OS for the Solution 2000 & 3000 panels. The app, cloud connection and push notifications are all free.

Each user of RSC+ app is able to receive push notifications from one or multiple panels which you can configure so that you are only see what matters to you.

Receive alarm notifications while you are on holidays or simply get an update when the kids get home from school and disarm the panel.

Remotely arm or disarm your alarm panel, see the status of your sensors and isolate them if required, or control up to 20 outputs devices connected to your panel such as garage doors or air – all of these things are available within the RSC+ app the moment your panel is connected.

Whenever you are logged in to the panel via the app, you can also read the full panel history and see what’s been going on while you’re not around.


Bosch 3000 Brochure

Bosch 3000 Installation Manual
