Description

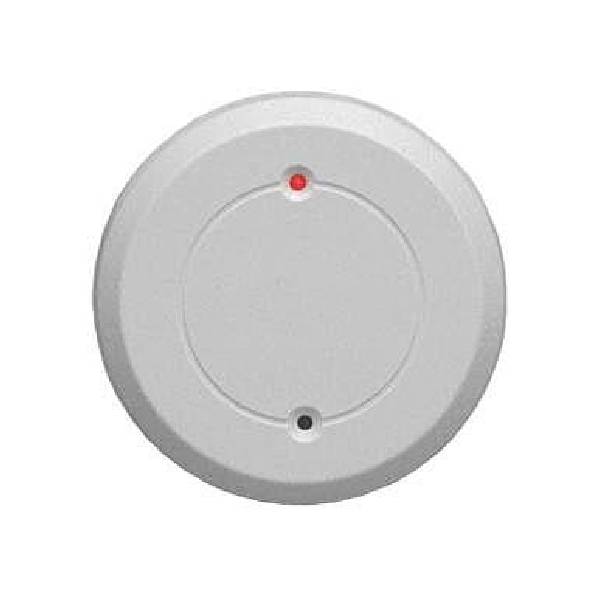

Bosch Breakglass sensor DS1101i with microprocessor-based sound analysis technology (SAT), automatic environmental test circuitry and sound check.
Model: DS1101i
| Current: | 23 mA at 12 VDC |
| Voltage: | 6 VDC to 15 VDC |
| Operating Temperature: | -29°C to +49°C (-20°F to +120°F)For UL Certificated installations, 0°C to +49°C (+32°F to +120°F) |
| Radio Frequency Interference (RFI) Immunity: | No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m. |
| Dimensions (Hx Diameter): | 2.1 cm x 8.6 cm(0.83 in. x 3.4 in.) |
| Material: | High impact ABS plastic enclosure |
| Alarm: | Form C reed relay rated 3.5 W, 125 mA at 28 VDC for resistive loads. |
| Tamper: | Normally-closed (NC) cover activated tamper switch with separate terminals. Contacts rated at 28 VDC, 125 mA maximum. |
Bosch Solution 6000 features
Downloads
Bosch Break Glass Sensor, DS1101i Datasheet
