Description

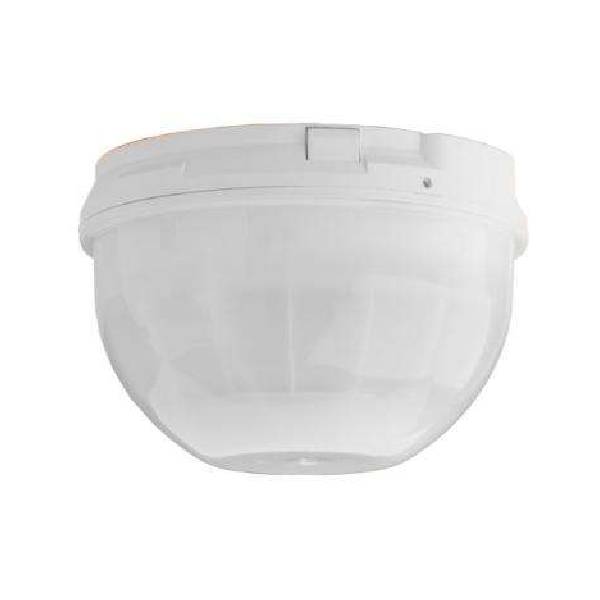

Bosch DS9360 is a ceiling mount panoramic motion detector, with motion analyzer II processing microwave adaptive processing and self-test supervision systems, changeable mirrors (two mirrors provided) 360° x 18 m (60 ft) diameter pattern 2.5 m to 6 m (8 ft to 18 ft) mounting height.
Model: DS9360
- Motion Analyzer II processing
- Microwave adaptive processing
- Self-test supervision systems
- Changeable mirrors (two mirrors provided)
- 360° x 18 m (60 ft) diameter pattern
- 2.5 m to 6 m (8 ft to 18 ft) mounting height
Shop CTC Security for best deals on Bosch Security products & accessories.
Specifications
| Design: | Modular high impact ABS electronic head and mounting/wiring base design with rugged polyethylene dome provides easy access to field setup switches. |
| Dimensions: | 8.5 cm x 13.3 cm(3.5 in. x 5.25 in.) |
| Material: | High impact ABS plastic enclosure |
| Operating Temperature: | -40°C to +49°C (-40°F to +120°F)For UL Certificated installations, 0°C to +49°C (+32°F to +120° F) |
| Radio Frequency Interference (RFI) Immunity: | No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m. |
| Complies with Environmental Class II (EN50130-5) | |
| Height Range: | 2.5 m to 6 m (8 ft to 18 ft) recommended |
| Location: | Mounts directly to ceiling or to standard 10.2 cm (4 in.) octagonal electrical box. |
| Alarm: | Form C reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads. |
| Tamper: | Normally-closed (with cover in place) tamper switch. Contacts rated at 28 VDC, 125 mA maximum. |
| Current: | 18 mA standby; 75 mA in alarm |
| Voltage: | 6 VDC to 15 VDC |
| TriTech® is a registered trademark of Bosch Security Systems, Inc. in the United States. |
Downloads
Brochure Detector Comparison Guide
Bosch Panoramic PIR Detector Ceiling Mount, DS9360 Datasheet
