Bosch Pro Series Motion Detector W-Anti-Mask, ISC-PDL1-WA18G

Save $35.59
BoschSKU: F.01U.381.621 ISC-PDL1-WA18G

Price:
Sale price$222.94 Regular price$258.53

Description

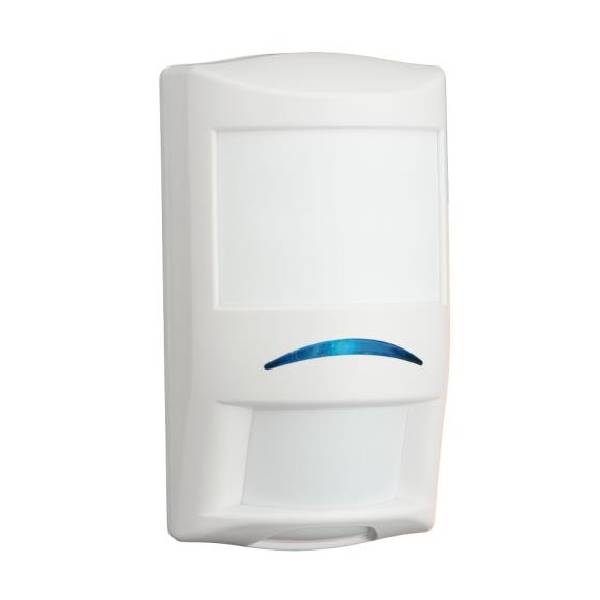

The Bosch ISC-PDL1-WA18G Professional motion detector Tritech with Anti-mask is a commercial grade detector delivers superior catch performance and virtually eliminates false alarms.

Model: ISC-PDL1-WA18G

This device is exceptionally suited for commercial indoor applications. MANTIS anti-mask technology makes obscuring the detector view nearly impossible for intruders. Sensor data fusion technology ensures that the detector sends alarm conditions based on precise information. Tri?focus optics eliminate coverage gaps and respond efficiently to intruders.

The powerful combination of unique features in the Professional Series delivers superior catch performance and virtually eliminates false alarms. The self-locking two-piece enclosure, built-in bubble level, flexible mounting height, and three optional mounting brackets simplify installation and reduce service time.

Shop CTC Security for best deals on Bosch Security products & accessories.

Commercial Alarm System Detectors

  • 18 m x 25 m (60 ft x 80 ft) standard coverage, 8 m x 10 m (25 ft x 33 ft) selectable short range coverage
  • EN50131-2-4 Grade 3 compliant
  • Sensor data fusion technology
  • Tri-focus optics technology
  • Range adaptive radar
  • MANTIS anti-mask
  • Active white light suppression
  • Dynamic temperature compensation
  • Remote walk test
  • Alarm memory
  • Draft and insect immunity

Specifications

Power Requirements
Voltage (Operating): 9 VDC to 15 VDC
Current (Maximum): < 26 mA with alarm, trouble, and LEDs active.
Current (Standby): 18 mA at 12 VDC
Outputs for All Models
Tamper: Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum.Connect tamper circuit to 24-hour protection circuit.
Trouble: Solid state relay normally-closed (NC) contacts.
Outputs for ISC-PDL1-WA18G and ISC-PDL1-WA18H
Alarm Relay: Solid state relay, normally-closed (NC) contacts, power supervised.3 W, 125 mA, 25 VDC, resistance
Outputs for ISC-PDL1-WA18GB
Alarm Relay: Solid state relay, normally-open (NO) contacts, power supervised.3 W, 125 mA, 25 VDC, resistance
Enclosure Design
Color: White
Dimensions: 127 mm x 69 mm x 58 mm(5 in. x 2.75 in. x 2.25 in.)
Material: High-impact ABS plastic


Indicators
Alarm Indicator: Blue LED for TriTech+ alarms
Yellow LED for microwave detection
Red LED for PIR detection
Zones
Zones: 86
Relative Humidity: 0 to 95%, non-condensing
Temperature (Operating and Storage): -30°C to +55°C (-22°F to +130°F)For AFNOR certificated installations,-10°C to +55°C (+14°F to +130°F)For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Environmental Rating (EN 50130-5): Class II
Protection Rating (EN 60529, EN 50102): IP 41, IK04

 Downloads

Bosch Pro Series PIR W-Anti-Mask, ISC-PDL1-WA18G Datasheet

Brochure Detector Comparison Guide
