Description

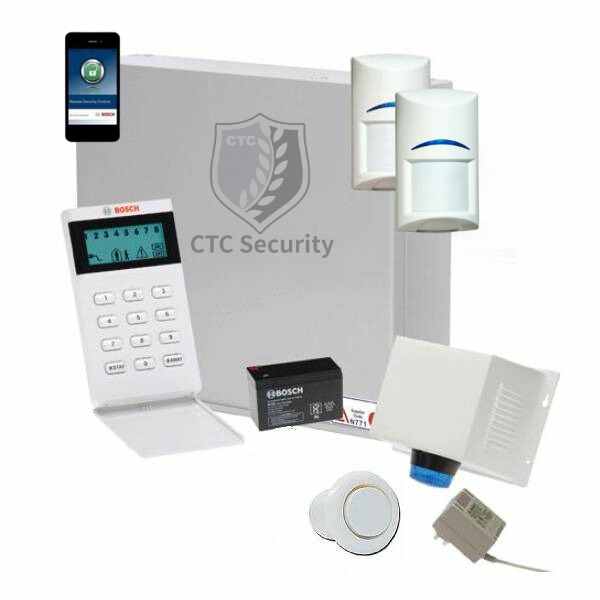

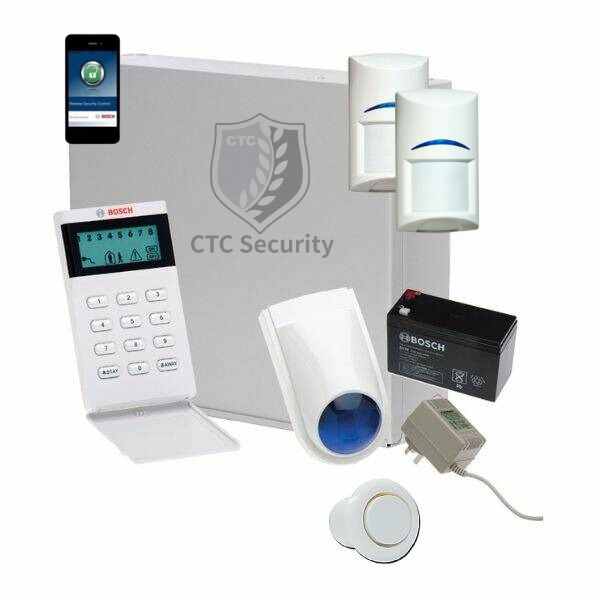

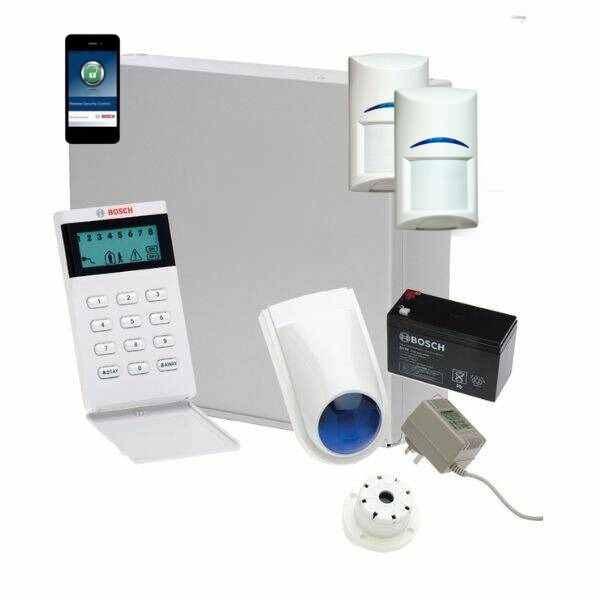

Bosch Solution 2000 Alarm Kit with 2 Gen 2 Quad Detectors, New Icon Keypad and IP Module
The Bosch Solution 2000 Alarm System with 2 × Gen 2 Quad Detectors combines a Solution 2000 control panel with the updated IUI-SOL-ICON-2 LCD Icon Keypad, internal and external sirens, backup battery and plug pack.
Two wired Bosch Gen 2 Quad PIR detectors provide motion detection for selected rooms and access routes. These detectors do not offer pet immunity, so this kit suits areas where pets will not move through the detection zones while the alarm is armed.
What's Included
- 1 × Bosch Solution 2000 control panel in a metal cabinet
- 1 × Bosch IUI-SOL-ICON-2 LCD Icon Keypad
- 2 × Bosch Gen 2 Quad PIR detectors (ISC-BPQ2-W12)
- 1 × External siren assembly in the selected standard or slimline style
- 1 × Internal piezo siren in the selected Top Hat or flush-mounted style
- 1 × 12V 7Ah backup battery
- 1 × Plug pack
- 1 × Bosch B426M IP module
- User manual and resistors
- 3 × CTC Security warning stickers
Installation cable is not included. Installation and programming are required.
Choose Your Siren Configuration
Select a standard or slimline external siren enclosure and a Top Hat or flush-mounted internal siren using the product options. The supplied siren hardware follows your selected variant.
SKU F.01U.305.344+F.01U.332.307FMSL: Slimline external siren enclosure with flush-mounted internal siren.
Updated IUI-SOL-ICON-2 Keypad
The new Icon keypad replaces the earlier IUI-SOL-ICON in this kit. Its LCD interface uses icons, words and numerical zone indicators to make everyday system status easy to check.
- Backlit buttons for low-light operation
- Adjustable keypad volume
- Night-light dim mode
- Magnetic protective cover
- Display supporting up to 16 zone indicators
- Fire, medical and panic functions when correctly programmed
The keypad's display capacity does not increase the Solution 2000 panel's zone capacity. Available functions depend on the panel and programming.
Bosch Gen 2 Quad PIR Detectors
The two included detectors sense movement within their installed coverage areas. Each offers coverage of up to 12m × 12m, subject to mounting position and room layout.
- Quad passive infrared motion detection using two individual sensors
- Separate signal processing requires both sensors to activate before an alarm is generated
- Dynamic temperature compensation
- Self-locking enclosure with integrated bubble level
- Wired connection to the alarm panel
- No pet immunity
Kit Specifications
| Brand | Bosch |
|---|---|
| Control panel | Solution 2000 |
| Kit reference | S2K-LCD-PIR-3 |
| Keypad | IUI-SOL-ICON-2 wired LCD Icon Keypad |
| Detectors | 2 × Gen 2 Quad PIR, ISC-BPQ2-W12 |
| Detector coverage | Up to 12m × 12m per detector |
| Pet immunity | No |
| External siren | Standard or slimline, according to selection |
| Internal siren | Top Hat or flush-mounted, according to selection |
| Backup battery | 12V 7Ah |
| Plug pack | Included |
| Installation cable | Not included |
| IP / cellular communicator | Not included |
Installation and Connectivity
A suitably qualified security technician should install and program the system, position the detectors and configure STAY and AWAY operation to suit the property.
The included Bosch B426M IP module connects the alarm to a compatible wired network. With a supported app, compatible panel firmware and correct configuration, it enables remote arming and disarming and notifications for supported alarm events, system troubles and arming activity. A working internet connection is required. Confirm app compatibility, account requirements and any applicable service charges with your installer. Professional monitoring requires a separate service arrangement. This kit does not include a cellular communicator or mobile-network backup.
Downloads
Datasheet IUI-SOL-ICON-2 LCD icon keypad
Installation Manual IUI-SOL-ICON-2 LCD icon keypad
Bosch B426 IP module datasheet
Bosch Solution 2000 / 3000 brochure
Bosch Gen 2 detector comparison guide
