Description

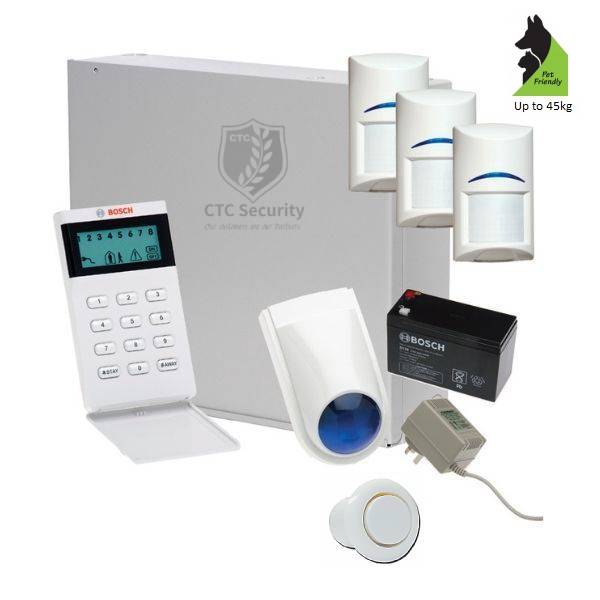

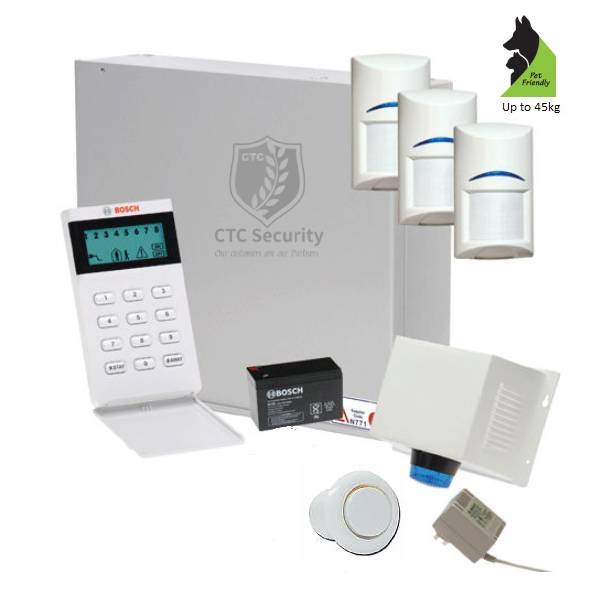

Bosch Solution 2000 Alarm Kit with 3 Gen 2 TriTech Detectors and New Icon Keypad
The Bosch Solution 2000 Alarm System with 3 × Gen 2 TriTech Detectors combines a Solution 2000 control panel with the updated IUI-SOL-ICON-2 LCD Icon Keypad, internal and external sirens, backup battery and plug pack.
Three wired Bosch Gen 2 TriTech detectors provide motion detection for selected rooms and access routes. Selectable pet immunity supports pets up to 45kg when enabled and installed according to the manufacturer's requirements. Your installer should assess pet size, movement, mounting position and furniture access when planning detector locations.
What's Included
- 1 × Bosch Solution 2000 control panel in a metal cabinet
- 1 × Bosch IUI-SOL-ICON-2 LCD Icon Keypad
- 3 × Bosch Gen 2 TriTech detectors (ISC-BDL2-WP12G)
- 1 × External siren assembly in the selected standard or slimline style
- 1 × Internal piezo siren in the selected Top Hat or flush-mounted style
- 1 × 12V 7Ah backup battery
- 1 × Plug pack
- Instruction manual, user guide and resistors
- Tampers for the siren and control panel
- 3 × CTC Security warning stickers
Installation cable is not included. Installation and programming are required.
Choose Your Siren Configuration
Select a standard or slimline external siren enclosure and a Top Hat or flush-mounted internal siren using the product options. The supplied siren hardware follows your selected variant.
SKU F.01U.305.345+F.01U.364.820THS: Standard box with Top Hat internal siren.
Updated IUI-SOL-ICON-2 Keypad
The new Icon keypad replaces the earlier IUI-SOL-ICON in this kit. Its LCD interface uses icons, words and numerical zone indicators to make everyday system status easy to check.
- Backlit buttons for low-light operation
- Adjustable keypad volume
- Night-light dim mode
- Magnetic protective cover
- Display supporting up to 16 zone indicators
- Fire, medical and panic functions when correctly programmed
The keypad's display capacity does not increase the Solution 2000 panel's zone capacity. Available functions depend on the panel and programming.
Bosch Gen 2 TriTech Detectors
The three included detectors sense movement within their installed coverage areas. Each offers coverage of up to 12m × 12m, subject to mounting position and room layout.
- Selectable pet immunity up to 45kg, subject to correct installation
- Dynamic temperature compensation
- Self-locking enclosure with integrated bubble level
- Wired connection to the alarm panel
- Pet immunity can be enabled or disabled by the installer
Kit Specifications
| Brand | Bosch |
|---|---|
| Control panel | Solution 2000 |
| Kit reference | S2K-LCD-PIR-3 |
| Keypad | IUI-SOL-ICON-2 wired LCD Icon Keypad |
| Detectors | 3 × Gen 2 TriTech, ISC-BDL2-WP12G |
| Detector coverage | Up to 12m × 12m per detector |
| Pet immunity | No |
| External siren | Standard or slimline, according to selection |
| Internal siren | Top Hat or flush-mounted, according to selection |
| Backup battery | 12V 7Ah |
| Plug pack | Included |
| Installation cable | Not included |
| IP / cellular communicator | Not included |
Installation and Connectivity
A suitably qualified security technician should install and program the system, position the detectors and configure STAY and AWAY operation to suit the property.
This kit does not include an IP or cellular communicator. Smartphone access, internet reporting and professional monitoring require suitable additional equipment, configuration and any applicable service arrangements.
Downloads
Datasheet IUI-SOL-ICON-2 LCD icon keypad
Installation Manual IUI-SOL-ICON-2 LCD icon keypad
Bosch Solution 2000 / 3000 brochure
Bosch TriTech detector datasheet
Bosch Gen 2 detector comparison guide
