Bosch Solution 6000 Alarm System, 3 x Gen 2 Quad Detectors

Save $549.31
BoschSKU: F.01U.297.672THST

External Siren Choice: Standard
Internal Siren Choice: Top Hat
Sale price$720.78 Regular price$1,270.09


Bosch Solution 6000 alarm system with 3 x quad motion detectors an ideal security alarm system for home or business, nbn ready.
Simple and easy to use security alarm system with sixteen zones for hard wired or wireless motion detection devices.

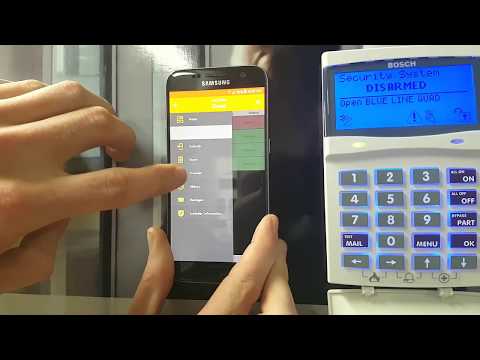

The Bosch Solution 6000 is fully expandable with options for smartphone control.

The motion detectors in this package uses two individual sensors that operate like two PIRs in one, they are not suitable for pets. Should you require pet friendly detectors, the Tritech motion sensors are a better choice.

Model: K6000-GFX-3Q

In the Kit

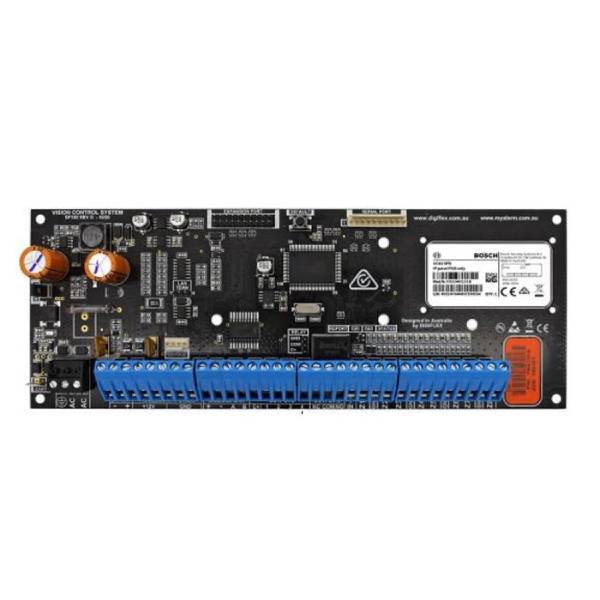

  • 1 x Control Panel in Metal box
  • 1 x Bosch Solution 6000 Smartcard Keypad, CP736B
  • 3 x Gen 2 Quad Detectors,ISC-BPQ2-W12
  • Accessory Kit: Standard or Slimline
  • 1 x External Siren, horn & blue strobe, tamper
  • 1 x Internal Piezo screamer
  • 1 x Plug pack ,12 volt Back up battery
  • 3 x CTC Alarm stickers for your windows

Bosch White 3.5" Colour Screen Keypad Features :

  • Built-in 40bit MI Fare Smartcard reader
  • Large graphical display with LED backlight, with real time clock and temperature display, adjustable volume, backlight and contrast
  • Up to 4 lines of 20 characters and icons, with dedicated ON, OFF and PART keys
  • Alpha-numeric text prompting/programming
  • Terminal block connections
  • 3.5” Color graphical display with LED backlight
  • Customizable Installer banner display.
  • Review attached datasheet for more information on CP736B
  • Firmware version 2.53.67 required on PCB
  • Firmware version 2.53.67 upgrade is only suitable for Solution 6000 panels, which have serial numbers larger than 240000

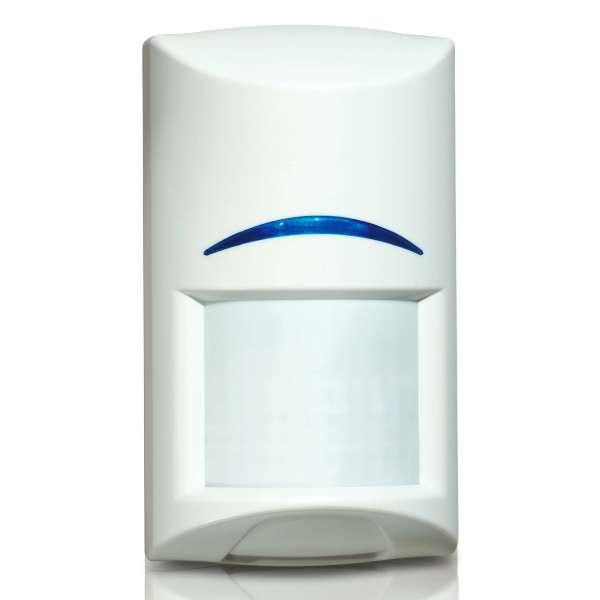

    Bosch Gen2 Quad Detector

    • Wall to Wall coverage
    • Superior catch performance within 12m x 12m (40ft x 40ft) coverage area
    • Dual Sensor
    • The Quad PIR Detector uses two individual sensors that operate like two PIRs in one.
    • Each sensor processes signals separately. Both must activate to cause an alarm.
    • This increases reliability, because false alarm sources such as noise spikes and small animals are ignored.
    • Quad detectors combine an unsurpassed level of catch performance with the highest level of false alarm immunity.
    • Dynamic Temperature Compensation
    • Superior catch performance in any environment
    • Flexible Mounting Height, No Adjustments
    • Reduce installation time and false alarms, improve catch performance
    • Self-locking Enclosure with Integrated Bubble Level
    • Reduce installation time

    Siren Kits

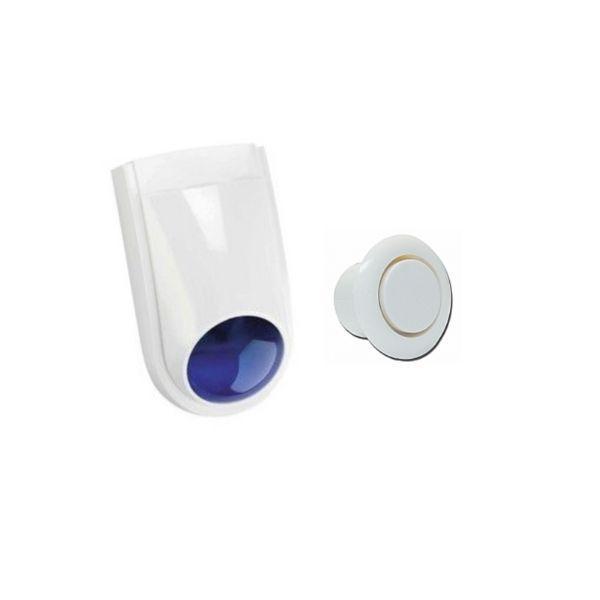

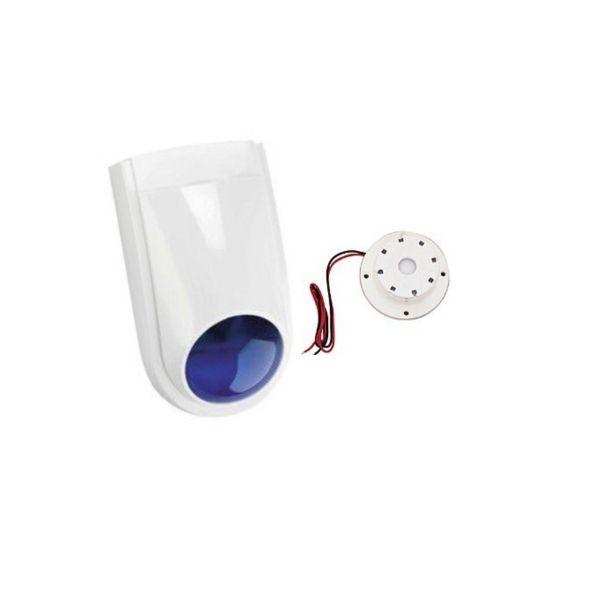

    • Bosch Slimline siren kit Ideal for apartments

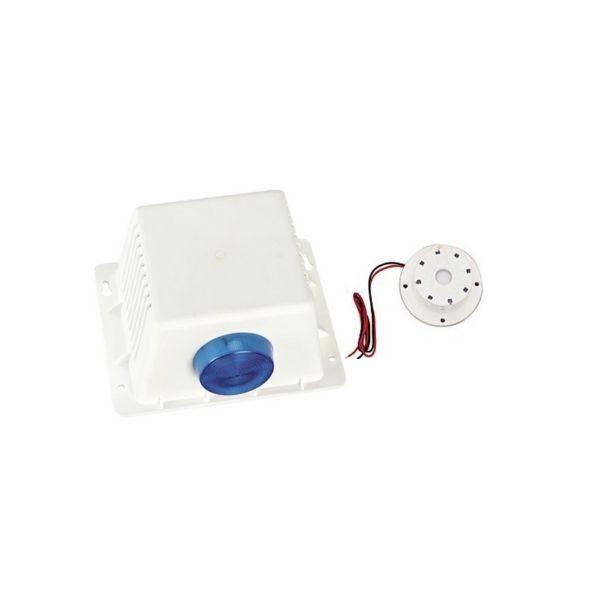

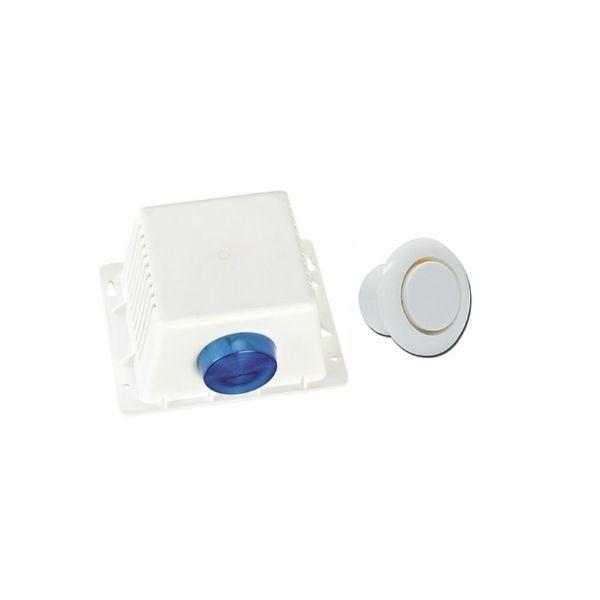

    • Bosch Standard Siren Kit Ideal for houses
    • Both kits come with these accessories
    • Plug pack for control panel
    • Installation manual and User Guide
    • Resistors
    • Dialler plug for land line fixed.
    • Top hat piezo, internal screamer
    • 12 Volt back up battery
    • 3 x CTC High resolution alarm Warning stickers

    Shop CTC Security for best deals on Bosch 6000 Security Alarm Systems


    Introducing the Bosch Solution 6000 Alarm System

    • 16 wired or wireless zones for security devices such as motion sensors, door and window contacts, smoke detectors etc.
    • Easy to read code pad
    • Easy text menu control
    • ON & PART arming modes
    • Partitioning to multiple areas eg. upstairs, downstairs, garage, granny flat, garden shed etc.
    • System indicators - AC fail & system troubles
    • Chime feature on user selectable zones
    • Code pad panic and duress

    Installation Guides

    Bosch Quick Installation Guide
    Bosch Installation Guide
    Bosch Installation Cheat Sheet
    Bosch I-Fob Flyer Sheet

    Optional bells and whistles.

    IP Module for communications via your home internet

    This will enable the use of your smart phone to arm/disarm your alarm or report back to base for control room for monitoring.


    I-Fob Plans

    Use of the I-Fob Plans will now enable push notifications and email for SMS reporting via the IP or GSM on an I-Fob plan.

    Optional Extra's

    GSM Module SIM Card Connection

    Communications via a module on the Bosch control board with a sim card for communications via your home internet, this will enable the use of your smart phone to arm/disarm your alarm or report back to base for control room for monitoring.

    • Remote Controls, arm/disarm your alarm system without the need to input a code.


    GSM Module

    Other Bells & Whistles

    • Finger scanner
    • Proximity reader
    • Night arm station
    • External keypads
    • Voice Module

    and much more, increased zones using expander modules and Wi-fi keypad for IP reporting.
