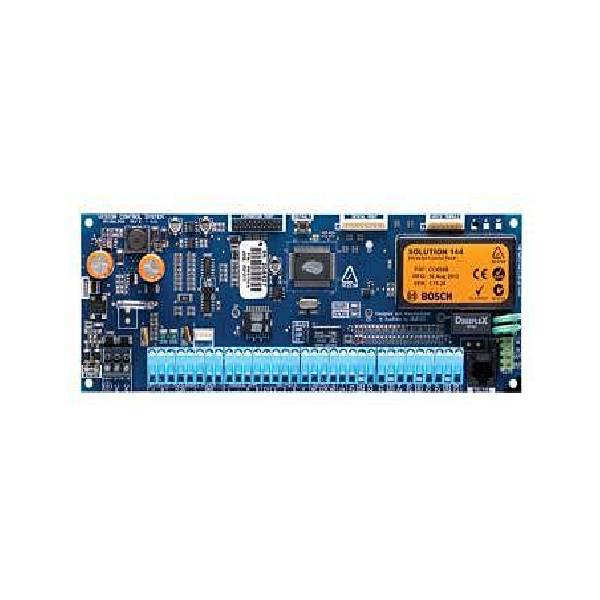

Bosch Solution 6000 PCB Board, CC610P

Save $50.39
BoschSKU: F.01U.294.849

Sale price$407.06 Regular price$457.45


Bosch 16 Zone replacement PCB board for Bosch Solution 6000 alarm system, expandable to 144 wired or wireless zones.

Model: CC610P

  • 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
  • Integrated access control for up to 16 doors
  • Proximity key pads, Weather-proof external metal keypads, Internal

Shop CTC Security for best deals on Bosch Security products & accessories.


Voltage Input 16-18V A.C 50-60Hz  24VA External Power Adaptor or 220-240V A.C. to 18V A.C 50-60Hz  24VA Internal Transformer (Primary Power Source)
Continuous Power 1 Amp MAX (Combined power drawn from Accessory Power (+12V) LAN Power (Module LAN+) and Output Power (C+) terminals must not exceed 1 Amp.
Alarm Power 4 Amp (Total with primary and secondary power sources fitted)
Stand-by Battery 12 VDC, 7.2AH sealed rechargeable battery  Panasonic LC-P127R2P or equivalent. (Secondary Power Source). Dispose of used batteries according to instructions.
Min Operating Voltage 10.2 VDC
Battery Charger Pulse by pulse charger. (Note: Charge voltage cannot be measured unless battery is fitted.)
Module Connection (RS485 LAN) Max. total LAN length using multi strand security cable = 300mMax. total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m.See the product installation manual for complete wiring instructions.
Telephone Connections RJ-12 Socket or 4-way terminal
Communications CID, SIA, SMS, Email, Voice, Domestic Dialling, GSM-CID, GSM-SMS, Connetix IP, CSV-IP
Environmental Considerations
Temperature 0o to 55oC
Relative Humidity 5 to 85% non-condensing
Enclosure Fixing Method CM720B  Small EnclosureUsing appropriate fasteners capable of handling a minimum of 6kgs to fix the cabinet against a sturdy surface using the mounting holes provided.CM730B  Large EnclosureUsing appropriate fasteners capable of handling a minimum of 12kgs to fix the cabinet against a sturdy surface using the mounting holes provided.
Enclosure Dimensions MW720B: 385(W), 260(H), 90(D)mmMW730B: 385(W), 520(H), 90(D)mm
PWA Dimensions 235(W), 85(H), 40(D)mm
Warranty 3 years



    Bosch 6000 Residential Brochure
    Bosch 6000 Commercial Brochure
    Bosch Quick Installation Guide
    Bosch Installation Guide e
    Bosch Installation Cheat Sheet
    Bosch I-Fob Flyer Sheet
    Solution 6000 PCB Alarm Board, CC610PB Datasheet
