Description

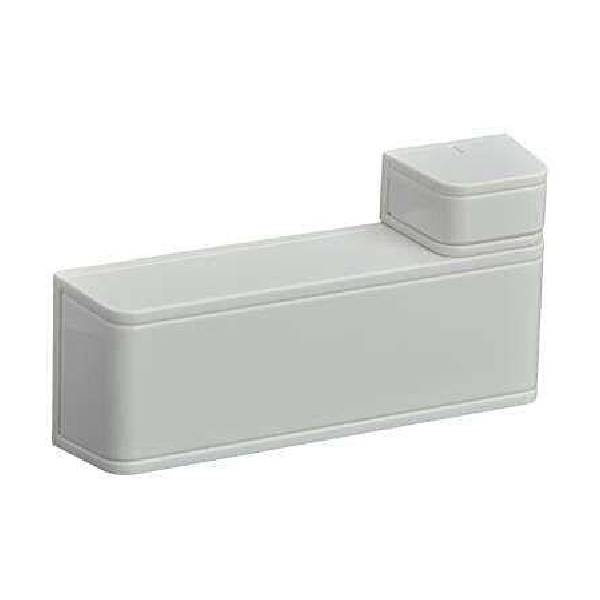

Bosch wireless universal transmitter RFUN, is a single arm loop input with integrated magnetic reed switch contact, comes with lithium battery.
Model: RFUN
Features
- Single alarm loop input can be configured for use with virtually any Normally Open or Normally Closed external detector
- Integrated magnetic reed switch contact
- Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions
- Operational up to 5 years using a single user replaceable CR123A lithium battery
Specifications
| Dimensions:Transmitter | 33.02 x 82.55 x 19.5 mm (1.30 in x 3.25 in x 0.76) |
| Dimensions:Magnetic | 18.5 mm x 24.5 mm x 12.5 mm (0.72 in x 0.97 in x 0.49 in) |
| Weight: | 0,094 kg (0.207 lb) |
| Power/Voltage: | One CR123A Lithium battery, 3 VDC |
| Battery life: | Up to 5 years Upon power-up, factory test mode lasts for approximately 10 sec. |
| Temperature: | Functional range: -10?C to +55?(+14?F to +131?F) UL only: 0?C to +49?C (+32?F to+120?F) EN 50130-5 Class II only: -10?C to 55?C (+14?F to +131?F IP30/IK04 |
| Environment | Complies with EN50130-5 Class II |
| Relative Humidity: | Up to 93% non-condensing |
| Cover and Wall Tamper Switch1: | Transmits a tamper switch signal when the detector is removed from its base, or the unit is pulled away from the wall. |
| Maximum distance between sensor and magnet: | <12.7 mm (1/2 in) Place the magnet on either side. The base has marks to indicate the positioning of the magnet. |
| Wire gauge: | 0.65 mm (22 AWG) to 1.5 mm (16 AWG) |
| Frequency: | 433.42 MHz |
Downloads
Bosch Wireless Universal Transmitter, RFUN Datasheet
