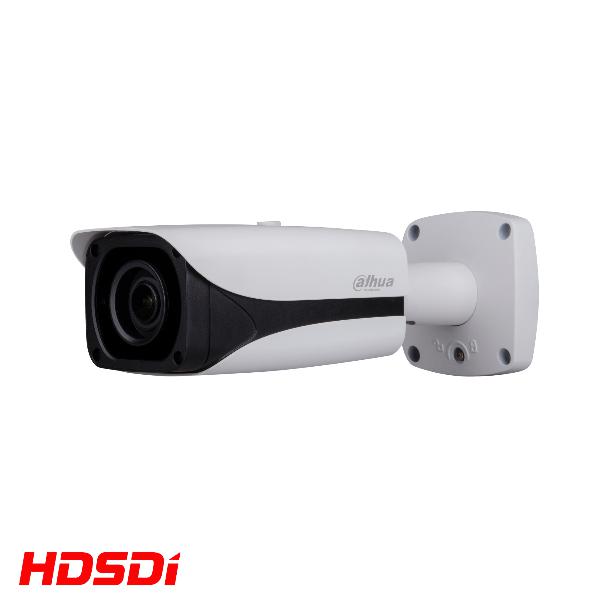

Dahua 2MP Starlight HDCVI IR Bullet Camera, experience 1080P full HD video, a complete set of features, and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Starlight HDCVI camera with 120dB true WDR presents a high quality image with rich details even in extreme low-light conditions.
Ultra Series | HDCVI | Starlight | Motorized
Shop CTC Security for Best Deals on CCTV Security Surveillance.
✓ Flat Rate Shipping ✓ ✓ Fast Delivery
Model : DH-HAC-HFW3231E-ZT-2712
Dahua 2MP Starlight Ultra HDSDI/CVI/CVBS IR Bullet,WDR,ICR,Motoriszed 2.7~12mm,IR 100m,AC24V/DC12V,IP67
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 800m for 1080P Full HD video via coaxial cable, and up to 300m via UTP cable.*
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.
Starlight
With the adoption of high performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Multi-interfaces
The camera is designed with multi-interfaces for transmitting/receiving various signals. It supports HDCVI and CVBS video outputs simultaneously with two BNC connectors, and tester out interface for debugging. It also supports audio input interface as well as alarm input/output for connecting external devices. Multi-interfaces covers different requirements of monitoring scenes and facilitates deployment and construction.
Smart IR
The camera is designed with array LED IR illumination for best lowlight performance at maximum distance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67, making it suitable for indoor or outdoor environments. The camera complies with an IK10 vandal resistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in). Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
Elegant Design
As projected-oriented product, the camera adopts elegant appearance design to express feeling of high reliability for industrial grade application.
Specifications
> Starlight, 120dB true WDR, 3DNR
> Max 30fps@1080P
> HD, SD & SDI tri-output
> 2.7-12mm motorized lens
> Max. IR length 50m, Smart IR
> IP67, IK10, AC24V/DC12V
| HD-CAMERA |
| MEGAPIXELS |
2MP |
| CAMERA STYLE |
Bullet |
| COLOUR |
White |
| LENS TYPE |
Motorised |
| TECHNOLOGY |
HDSDI |
| POWER |
AC 24V / DC 12V |
Downloads
DH-HAC-HFW3231E-ZT Data Sheet
DH-HAC-HFW3231E-ZT User Manual
