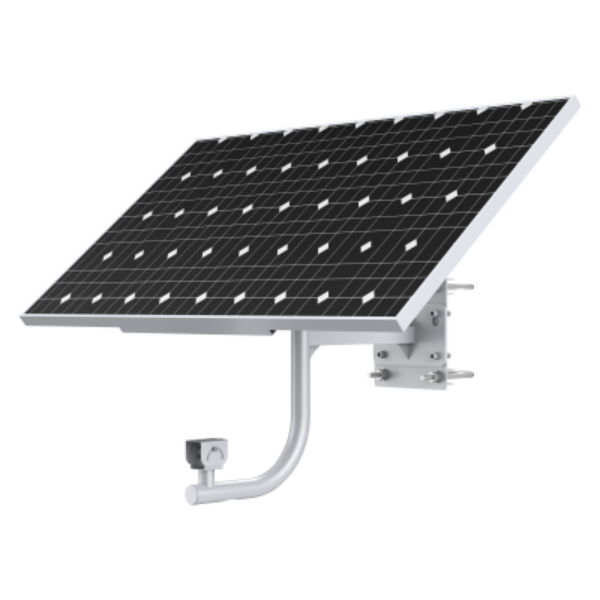

Dahua Integrated Solar Monitoring System DH-PFM378-B100-WB

Dahua Integrated solar monitoring system (without lithium battery), all in one decision, using 4G to transfer monitoring data and solar to power, which is easy/quick to install and can save wiring to the greatest extent.

Full Install requires three parts:

4G network camera, integrated solar power system and camera's mounting bracket, which is more convenient for sale, order and transportation.
It provides 4*10/100Mbps PoE ports and 1*100 Mbps uplink ports. In order to acquire smooth monitoring, it’s recommended to connect max 4 IP cameras at a bit rate of less than 4Mbps respectively It is compact, portable, and easy to install, disassemble and maintain compared with a conventional system. The camera supports multi-angle flexible adjustment.

Model: DH-PFM378-B100-WB

Integrated sheet metal bracket

The bracket is built of a Q235 steel that makes it both strong and durable. It is ideal for installing solar panels, lithium batteries and cameras, and is designed to make installation and maintenance of the solar system more convenient.

Monocrystalline silicon solar panel

Adopt efficient monocrystalline silicon solar panel to greatly improve light absorbance efficiency and power generation performance with dusky light.

Remote monitoring with APP

With Dahua cameras, it supports real-time remote monitoring of the system operation status and alarm prompts of battery with APP.

Maximum Power Point Tracking (MPPT) charging controller

MPPT controller helps significantly improve the energy utilization efficiency of the system, and raise the charging efficiency by 10%–30% compared with conventional PWM controller.

RS–485 communication

RS-485 port and standard Modbus protocol can satisfy communication requirements in various scenarios.

Electronic protection

Comprehensive electronic protection: Current limiting, short circuit, and reverse current protection of the solar panel; reverse connection, overvoltage, over-discharge, and over-temperature protection of the lithium battery; overload and short circuit protection.

Specifications

• Integrated design, easy to installSupports PoE power management

• · Pole mount.
• Flexible angle adjustment of the solar panel and the camera.
• 100W Monocrystalline solar panel.
• Built sturdy to resist storms with sustained winds up to 117 km/h.
• Remote monitoring available through the mobile app.
• Maximum Power Point Tracking (MPPT) charging controller.
• RS-485 communication function.
• Electric protection.

Downloads

DH-PFM378-B100-WB Data Sheet
