Description

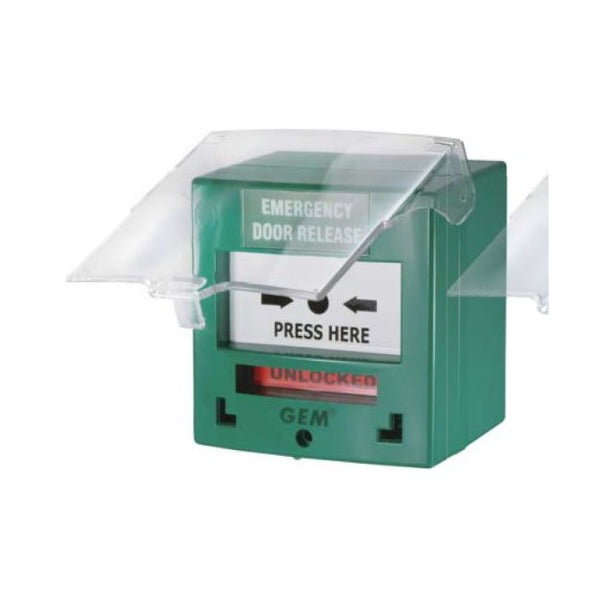

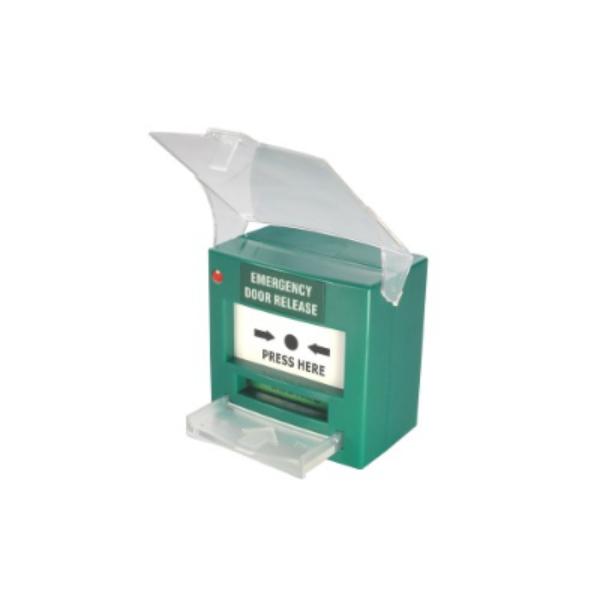

Green Emergency Door Release Resettable
Model : CP32G
Resettable Call Point features a resettable operating element that produces no dangerous glass shards, making it suitable for use in high traffic areas, such as schools, shopping malls, or commercial buildings. It is supplied with double pole changeover contacts and available with backlit models for easy nighttime operation, or with buzzer models that include a built-in buzzer for emergency alert.
Features
- Glassless and resettable design
- Detachable terminal for easy wiring
- Plastic protection cover available
- Available in white, green or blue
- Type: Glassless Resettable Unit
- Voltage (max): 30V DC
- Current (max): 2A
- Contact Resistance: 50 milliohm
- Contacts: 2x NO and 2x NC (all isolated)
- Dimensions: 86mm x 86mm x 56mm
- Australia-2019100322 (CP-32GBZ-LB-ALM)
- Uses Breakglass Reset Key to suit CP32 series, CQR1030
This re-settable emergency door release can be triggered again and again without the need to replace cracked glass. The resetting process is quick and easy, simply insert the reset key into the reset hole on the under-side of the call point, and slide the bottom face down, releasing the push panel back into its original state, then simply clip the bottom face back up into place and it's ready for further use.
- Glassless and resettable design
- Detachable terminal for easy wiring
- Plastic protection cover available
- Available in white, green or blue
Downloads
CP32 Series Operational Manual
