Description
The FSHFEM6600DM is a standard double monitored door lock designed for fail safe use. It operates on 12/24VDC and is part of the FEM6600 series.
This product is designed with a fail-safe feature, to ensure maximum security of your premises. It's compatible with both 12VDC and 24VDC power sources, providing a versatile solution for various applications.
Installing the FSH Magnetic Door Lock is a simple and secure solution for enhancing security and providing peace of mind in your home or office. These reliable and efficient monitored locks effectively protect your space.

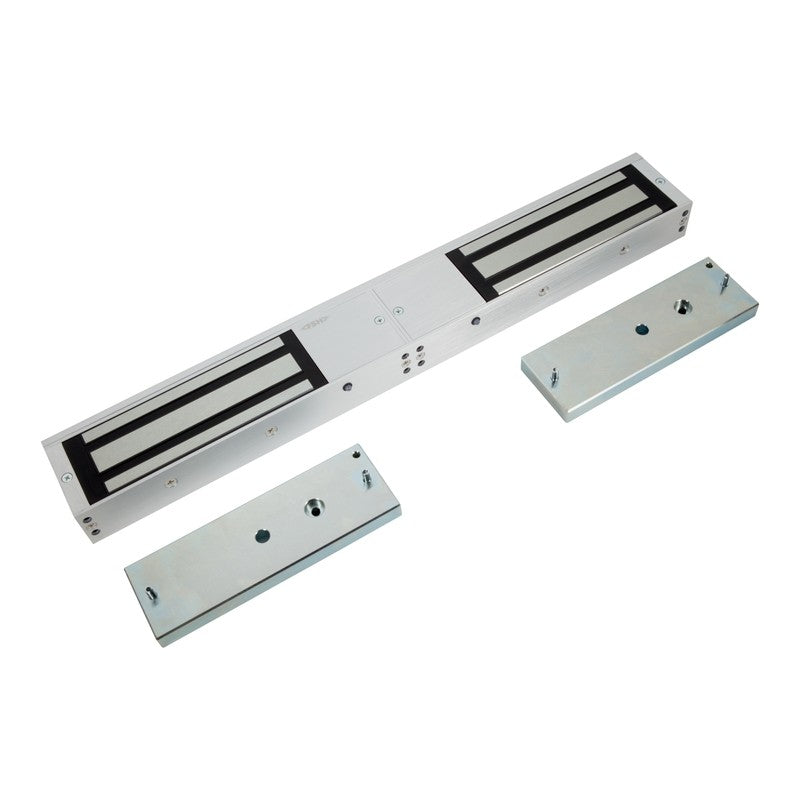

Model: FSHFEM6600DM
The FSH FEM6600 Series of electromagnetic locks come with a 5 year mechanical and electronic warranty and a hold strength of up to 580kg, so you have the peace-of-mind that entrances are secured to protect people and property.
Tested to Australian and New Zealand standards, including a 2-hour fire rating, these maglocks are Dual Voltage, 12/24VDC, and come in single or double (D) versions, either monitored (M) or non-monitored. Once powered off, the maglocks have no residual magnetism, which extends the life of the lock and door and gives a better user experience.
The monitored versions (M), include a red-green coloured LED indicator to quickly identify the door and lock status. Activated by a number of credential readers such as PIN pads, fob readers or other access control platforms, this range is ideal for most commercial applications.
Features
- Dual Voltage: 12 /24 VDC field selectable
- Door and Lock Status Monitoring Sensor
(DSS and LSS S with “M” Models) - Built-in varistor (MOV) surge protection
- Red-Green bi colour LED on monitored version
- No residual magnetism
- 5 year warranty
- Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015)
Specifications
| BRAND | |
|---|---|
| SERIES |
FEM6600 SERIES |
| ELECTRIC/MECHANICAL |
ELECTRIC |
| DEVICE TYPE |
DOUBLE MAG LOCK |
| MONITORED |
MONITORED |
| FAIL SAFE/FAIL SECURE |
FAIL SAFE (PTL) |
| MOUNTING |
SURFACE MOUNT |
| FIRE RATING |
2 HOUR FIRE RATING |
| POWER |
MULTI VOLTAGE, 12VDC, 24VDC |
| WARRANTY |
60 Months |
Technical Specifications
|
PART No. |
FEM6600 (Single) FEM6600D (Double) |
FEM6600M (Single) FEM6600DM (Double)This part |
|
HOLDING STRENGTH |
Up to 580kg |
Up to 580kg |
|
VOLTAGE/CURRENT |
Dual Voltage 12/24VDC,
|
Dual Voltage 12/24VDC,
|
|
APPROVALS |
2-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details) |
2-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details) |
|
MONITORING |
N/A |
Red-Green Bi-colour LED LSS DSS |
|
SIZE |
Single door series magnet: 268mm (L) x 73mm (W) x 40mm (D) Single door series armature plate: |
Double door series magnet: Double door series armature plate: |
