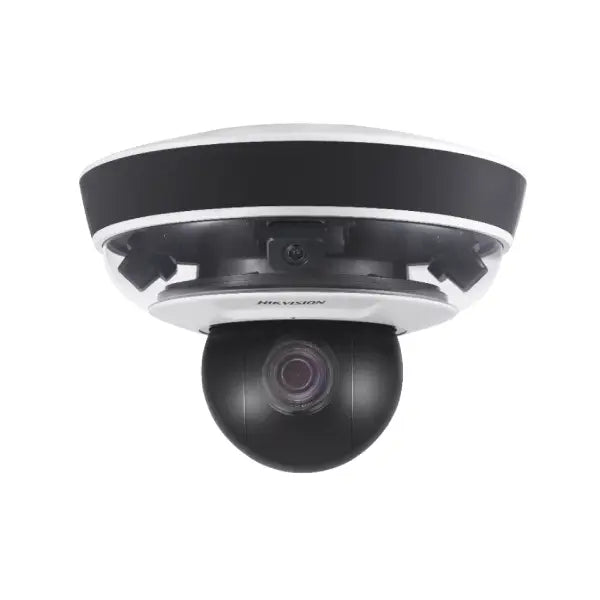

Hikvision Triple-Directional Panoramic Network Dome Camera – DS-2PT5326IZ-DE (5–50 mm) (4 mm)
Wide-Angle 240° Coverage with Integrated PTZ Zoom & IR Night Vision
The Hikvision DS-2PT5326IZ-DE is a state-of-the-art triple-directional panoramic dome camera that delivers exceptional wide-area surveillance and detailed close-up imaging — all from a single unit. Combining three panoramic lenses with a PTZ camera, it captures 240° panoramic views while simultaneously zooming in on critical areas for precise detail and intelligent monitoring.
This multi-lens camera is designed for complex indoor and outdoor environments such as warehouses, corridors, retail spaces, car parks, and intersections, where complete situational awareness is essential. Built with AI-powered smart detection, H.265+ video compression, and infrared illumination up to 15 metres, it ensures reliable, efficient, and crystal-clear surveillance around the clock.
🔍 Key Features of the Hikvision DS-2PT5326IZ-DE
🌀 Triple-Directional Design with PTZ Linkage
Three panoramic lenses capture a seamless 240° field of view, while the integrated PTZ camera automatically zooms in for detailed close-up images — ideal for identifying faces or number plates.
🔭 10× Optical Zoom & 8× Digital Zoom (PTZ Channel)
Provides high flexibility in surveillance, allowing you to focus on distant or critical areas without losing image clarity.
🌙 Built-in IR Illumination (Up to 15m)
Ensures high-quality imaging even in low-light or complete darkness, maintaining visibility in 24/7 monitoring environments.
💡 Smart Imaging & Processing
Features include 3D DNR, digital WDR, BLC, HLC, defog, and regional focus/exposure for optimised clarity and balanced images in all lighting conditions.
⚙️ Efficient Compression Technology
Supports H.265+/H.265/H.264+/H.264 encoding, significantly reducing bandwidth and storage use while maintaining superior image quality.
💪 Durable & Weatherproof Design
Rated IP66 for water resistance and built for robust performance in outdoor environments.
🏭 Ideal Use Cases
-
Warehouses & Industrial Sites: Cover wide areas with detailed focus zones using PTZ control.
-
Retail Stores & Corridors: Monitor aisles, entrances, and cash registers from a single camera.
-
Road Intersections & Car Parks: Capture multiple directions while zooming in on vehicle details.
-
Public Spaces & Commercial Buildings: Perfect for multi-angle coverage and reduced blind spots.
⚙️ Technical Highlights
-
Image Sensor: 1/2.8" Progressive Scan CMOS
-
Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON) | B/W: 0.001 Lux @ (F1.6, AGC ON) | 0 Lux with IR
-
Shutter Speed: 1/25 s to 1/30,000 s
-
Zoom: 10× optical / 8× digital (PTZ channel)
-
Wide Dynamic Range: Digital WDR
-
IR Range: Up to 15 metres
-
Weather Rating: IP66
-
Focus Modes: Auto / Manual / Semi-auto
✅ Why Choose the Hikvision DS-2PT5326IZ-DE
-
Combines panoramic + PTZ surveillance in one camera
-
Reduces installation costs by covering multiple directions
-
Delivers high-resolution clarity in all lighting conditions
-
Supports AI detection and advanced image optimisation
-
Designed for professional surveillance systems in commercial and industrial environments
📍 Professional Installation Sydney-Wide
CTC Communications provides expert Sydney-wide installation for Hikvision surveillance systems. Our licensed technicians ensure your cameras are installed, configured, and optimised for maximum coverage and performance.
