Description
Hikvision Intercom Kit, 4 Wire
Model: DS-KB2421-IM
Hands-free intercom kit with 7" LCD screen and external door station,
with intercom communication to door station, remote unlocking.
In the Kit

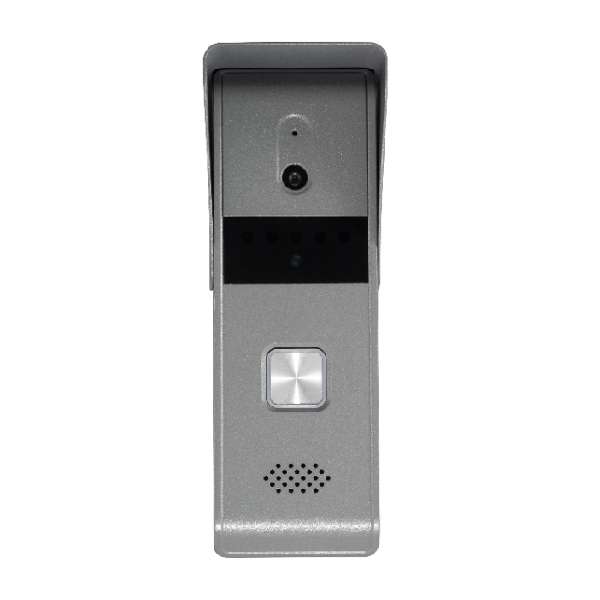

- 1 x External Door Station, Model: DS-KB2421
Door Station Features
- Four wire (analog) door station
- Pinhole Camera with IR Supplement
- Supports Two Door Stations Cascading
- Metal frame with one physical button
- Anti-oxidant zinc alloy, IK7, IP65
Specifications
- Door Station/Video Parameters
- Camera1/4" CMOS
- Resolution720 × 576
- Video Frame Rate PAL: 25 fps
- Indoor Station/Display Parameters
- Display Screen7-Inch Colorful TFT LCD
- Display Resolution800 × 480
- Operation Method Physical Button
- Indoor Station/Audio Parameters
- Audio Input Built-in Omnidirectional Microphone
- Audio Output Built-in Loudspeaker
- Audio Quality Noise Suppression and Echo Cancellation
Downloads
Hikvision Door Station, DS-KB2421-IM-Datasheet

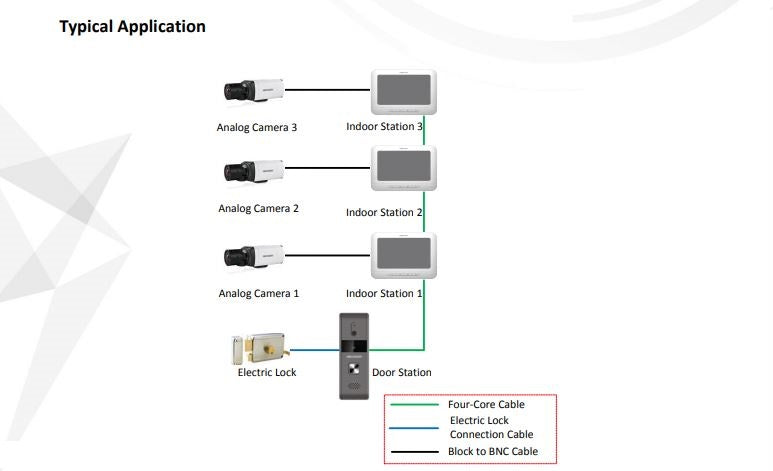

Typical Application
Warranty
Hikvision Intercom products are covered by a 2 years Manufacturer Warranty from the date of purchase.
CTC Security will cover postage for all replacement parts, but will not cover labour for installation cost.
CTC Security offers a 1 year warranty on labour when the system is installed by us.
