Hikvision DS-2CD2186G2-IMS 8MP 4K Dome Camera with HDMI 2.8mm

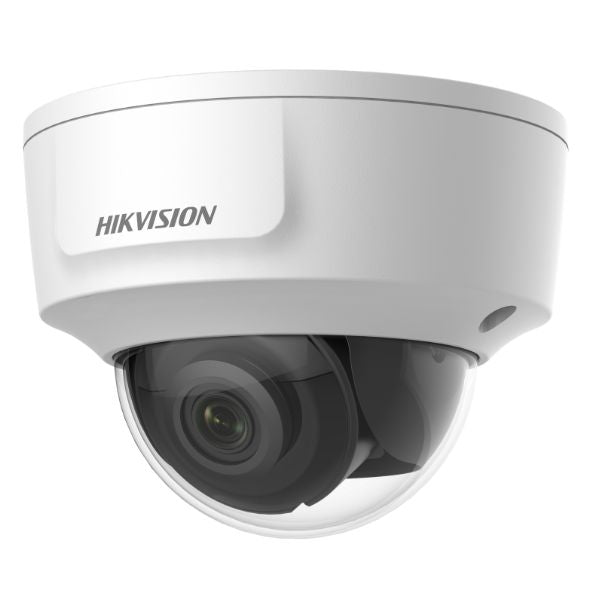

Hikvision 8MP 4K HDMI Fixed Dome Network Camera – DS-2CD2186G2-IMS (2.8mm)

The Hikvision DS-2CD2186G2-IMS is a powerful 8MP 4K fixed dome IP camera featuring direct HDMI output for real-time spot monitoring. Designed for applications where live viewing on a local screen is required, this professional surveillance solution combines ultra-high-definition imaging with durable vandal-resistant protection.

With crystal-clear 3840 × 2160 resolution and advanced 120 dB true WDR, this camera delivers balanced exposure in challenging lighting conditions, including strong backlighting or high-contrast environments.

The integrated HDMI output allows direct connection to a monitor for live display without requiring an NVR, making it ideal for reception desks, retail counters, control rooms, and security checkpoints.

Additional Features

The DS-2CD2186G2-IMS dome camera includes H.265+ smart compression to reduce bandwidth and storage requirements while maintaining high image quality. Its full metal housing ensures long-term durability, and IK10 vandal resistance protects against impact or tampering in exposed locations.

With its 2.8mm fixed wide-angle lens, this model provides excellent coverage for entrances, hallways, retail floors, and public-facing areas.

Key Features

8MP 4K Ultra HD Resolution

✔ 3840 × 2160 high-definition imaging
✔ Sharp detail for facial and object identification

Direct HDMI Output for Spot Monitoring

✔ Live view directly to a monitor
✔ Ideal for retail counters, reception areas & control desks

120 dB True Wide Dynamic Range (WDR)

✔ Balanced exposure in high-contrast lighting
✔ Clear detail in both bright and shaded areas

H.265+ Smart Compression

✔ Significantly reduces bandwidth usage
✔ Lowers storage requirements

2.8mm Fixed Wide-Angle Lens

✔ Broad coverage for internal or external monitoring
✔ Ideal for entrances and open areas

Full Metal Housing

✔ Durable professional-grade construction
✔ Designed for long-term reliability

IK10 Vandal-Resistant Protection

✔ Impact-resistant dome housing
✔ Suitable for high-traffic or exposed areas

Technical Specifications:

Camera Performance

Image Sensor: 1/2.8″ Progressive Scan CMOS
Maximum Resolution: 3840 × 2160 (8MP 4K Ultra HD)
Video Compression: H.265+ / H.265 / H.264+ / H.264
WDR: 120 dB True WDR
Minimum Illumination: Colour & low-light performance supported
Shutter Speed: 1/3 s to 1/100,000 s

Lens & Viewing

Lens: Fixed 2.8mm
Field of View: Wide-angle coverage
Lens Mount: M12

Interface

HDMI Output: Yes (Direct Live View)
Network Interface: RJ45 10/100 Mbps Ethernet

Housing

Material: Full Metal Construction
Vandal Rating: IK10

🔗 View Full Specifications on the Official Hikvision Website

Smart Remote Access with Hik-Connect App

Control and monitor your security system from anywhere using the Hik-Connect app.
📲 Watch live video remotely
📲 Receive instant security alerts
📲 Control strobe and audio alarms
📲 Manage settings anytime, anywhere

Why Choose the Hikvision Dome Camera DS-2CD2186G2-IMS?

The Hikvision dome camera DS-2CD2186G2-IMS is ideal for environments requiring both network recording and direct HDMI spot monitoring. With 8MP 4K clarity, WDR performance, and heavy-duty metal construction, it offers a professional-grade solution for retail, commercial, and security control applications.

Its ability to output live footage directly via HDMI makes it particularly useful for front-of-house monitoring, loss prevention desks, and high-visibility security points.

Ideal Applications

✔ Retail Stores & POS Counters
✔ Reception & Lobby Monitoring
✔ Control Rooms & Security Stations
✔ Office & Commercial Entrances
✔ Schools & Public Buildings

What Is HDMI Spot Monitoring?

HDMI spot monitoring allows the Hikvision dome camera to output a live HD video feed directly to a monitor without requiring a network video recorder. This is ideal for situations where staff need instant visual confirmation of activity at entrances or service areas.
