Description

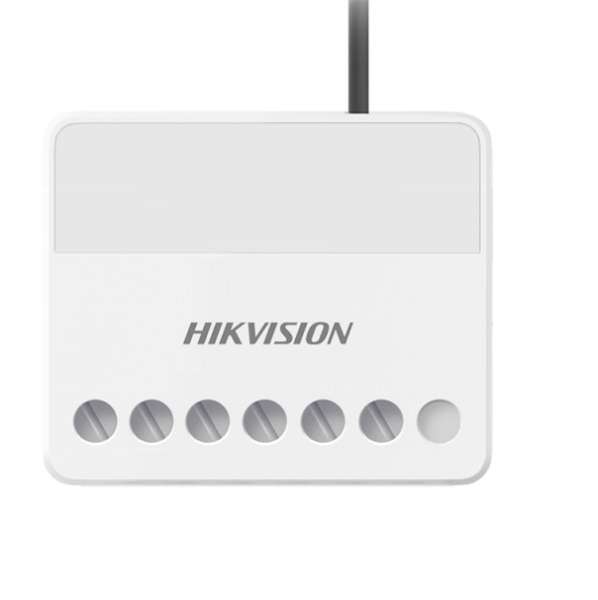

The DS-PM1-O1H-WB wall switch, with two-way wireless communication, LED display, show status of device and replay on/off display, small case design.
Model: DS-PM1-O1H-WB
Features
- 433MHz two-way wireless communication
- AES-128 encryption
- LED display, show status of device and replay on/off display
- Small case design, which can be put into hiding places easily
- Automation operating, one button turn on/off from APP/Keyfob/Keypad
- Setting scenarios by different events
Specifications
- Software Features
- Learning Button1, For register
- Scenario SettingBy Alarm, By Operation, By Fault, By Schedule, By Manual
- Hardware Features
- Relay Output1, NO/NC (AC 100~240v, Max 13A）
- Serial Port1, for debug
- RF Transmission
- RF MethodTwo way communication
- RF Modulation2GFSK
- RF Frequency433MHz
- RF Distance800m
- Wireless SecurityAES-128
- Electrical Characteristics
- Power SupplyAC 100v – 240v, 50/60 HZ
- Display
- LEDs Status3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
- General
- Operation Temperature﹣10℃~+55℃
- Operation Humidity10％~90％
- Shell MaterialPlastic
- Dimension(WxHxD)38x25x18mm
- 31.5g
- ColorWhite
- Installation MethodWall Mounting or Inside 86 box
Downloads
Hikvision Wall Switch, DS-PM1-O1H-WB Datasheet
Hikvision Wireless Alarm Brochure
