Description

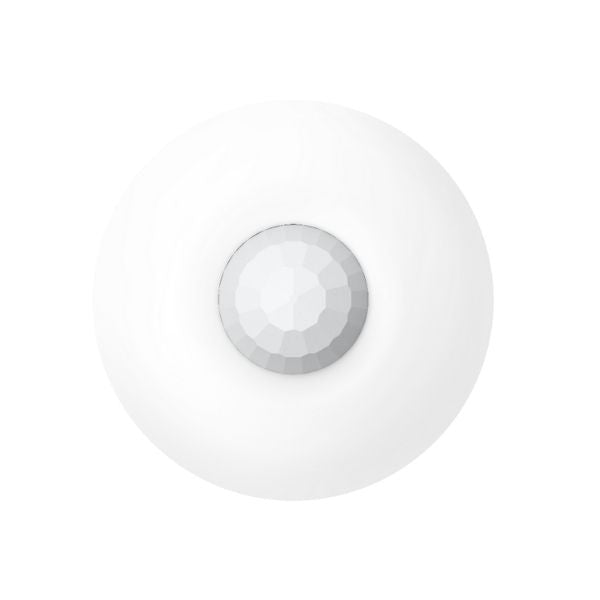

Wireless ceiling mounted detector, fully supervised wireless detector, passive infrared 360° detection angle.
Model: DS-PDCL12-EG2- WB
Features
- Detection Method Passive Infrared; Acoustic Sensor
- Detection Range12m
- Detection Angle360°
- Detection Zones172
- Detectable Speed0.3～2m/s
- Sensitivity Auto; Low
- White Light Filter6500lux
- Digital Temperature Compensation Support
- Creep Zone Protection Support
Specifications
- Digital Processing Support
- Sealed Optics Support
- Tamper Protection Front; Rear
- Environment Temperature Indicator Support
- Signal Strength Indicator Support
- Interface
- Power Switch Power Up Enrolling
- LED Indicator Blue(Alarm)
- Transmission
- Transmission Technology Tri-X Wireless
- Transmission Method Two-Way RF Wireless
- Transmission Frequency433MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1Km
- Frequency Hopping Support
- Enrolling Method Power up; Remote ID;QR Code
- Electrical Characteristics
- Standard Battery Life5 years in work status (being triggered 20 times per day)
- Power Supply Battery Powered
- Battery TypeCR123A × 1
- Typical Voltage3V
- General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)φ101.2 mm x 32.9 mm
- 109.5g
- Mounting Height2.4 to 4m
- Mounting Method Ceiling
- Application Scenario Indoor
Downloads
Hikvision Wireless PIR Ceiling Detector, DS-PDCL12-EG2- WB Datasheet
Hikvision Wireless Alarm Brochure
Warranty
Hikvision Alarm Systems products are covered by a 2 years Manufacturer Warranty from the date of purchase.
CTC Security offers a 1 year warranty on labour when the system is installed by us.
Customer to cover warranty postage for any replacement parts.
