Description

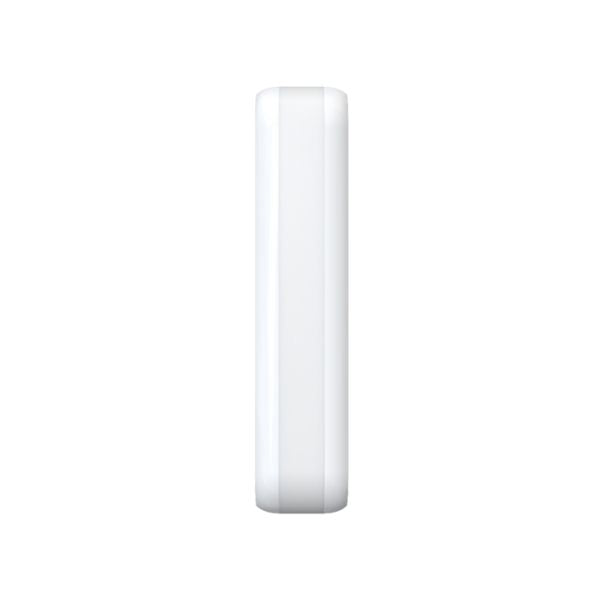

Wireless curtain detector with direction detection, fully supervised slim design, weather resistant for outdoor applications.
Model: DS-PDC10AM-EG2- WB
Features
- Slim design for window frame installation
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Directional detection support
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
Specifications
- Detection Method Passive Infrared
-
Detection Range
Wall Mount：10m
Ceiling Mount：5m
- Detection Angle5°
- Detection Zones32
- Detectable Speed0.3～2m/s
- Sensitivity Auto; Pet
- White Light Filter6500lux
-
Pet Immunity
Wall Mount：12Kg
Ceiling Mount None
- Digital Temperature Compensation Support
- Creep Zone Protection Support
- Anti-Masking Support
- Feature
- Digital Processing Support
- Sealed Optics Support
- Tamper Protection Front; Rear
- Environment Temperature Indicator Support
- Signal Strength Indicator Support
- Directional Detection Support
- Interface
- Power Switch Power Up Enrolling
- LED Indicator Blue(Alarm), Green+ Orange(Mask)
- Transmission
- Transmission Technology Tri-X Wireless
- Transmission Method Two-Way RF Wireless
- Transmission Frequency433MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1Km
- Frequency Hopping Support
- Enrolling Method Power up; Remote ID;QR Code
- Electrical Characteristics
- Standard Battery Life5 years in work status (being triggered 20 times per day)
- Power Supply Battery Powered
- Battery TypeCR123A × 2
- Typical Voltage3V
- General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- IP RateIP65
- Dimension(WxHxD)29.2mm × 134.4mm × 39.5mm
- 118.5g
- Mounting Height2 to 3.5m
- Mounting Method Wall; Ceiling
- Application Scenario Indoor, Outdoor
- Bracket L-shaped adapter included
Downloads
Hikvision Wireless Alarm Brochure
Warranty
Hikvision Alarm Systems products are covered by a 2 years Manufacturer Warranty from the date of purchase.
CTC Security offers a 1 year warranty on labour when the system is installed by us.
Customer to cover warranty postage for any replacement parts.
