Hills Security Alarm System Reliance XR, Touchnav Kit with Guardall Detectors

Save $291.94

Internal Siren Choice: Flush Mounted
Sale price$614.46 Regular price$906.40


The Hills Security Alarm System Reliance XR has been built with cutting-edge technology, comprising an 8 zone Touchnav codepad, 3 motion detectors, internal and external sirens, and battery backup, and a smartphone module for arming and disarming. Experience the ultimate in security with Hills.

Hill Security Alarm System Kit Includes:

  • Hills Reliance XR PCB Control Panel in a metal box, NXX-4-W-AU
  • 1 x Hills Touchnav Code Pad, 206140
  • 3 x Guardall Motion Detectors, GP15

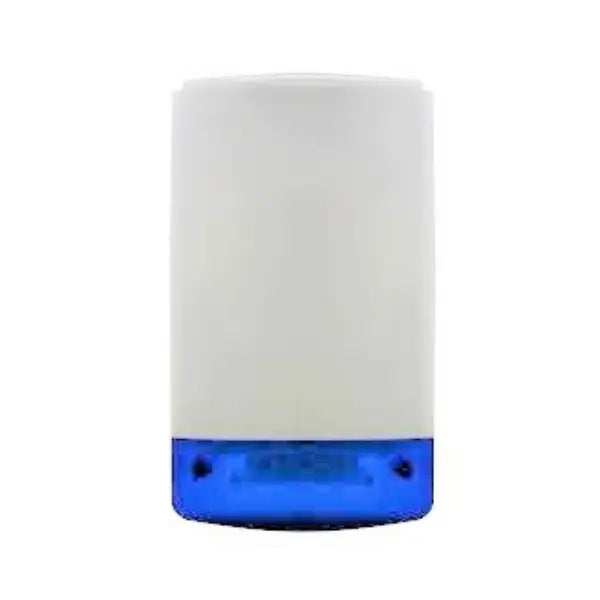

  • 1 x External Siren and Strobe Combo, S1799
  • 1 x Indoor Siren, Choice of WP08 or WP05,
  • 1 x Back up Battery, 12 Volts, 5 AMP, PS-1250

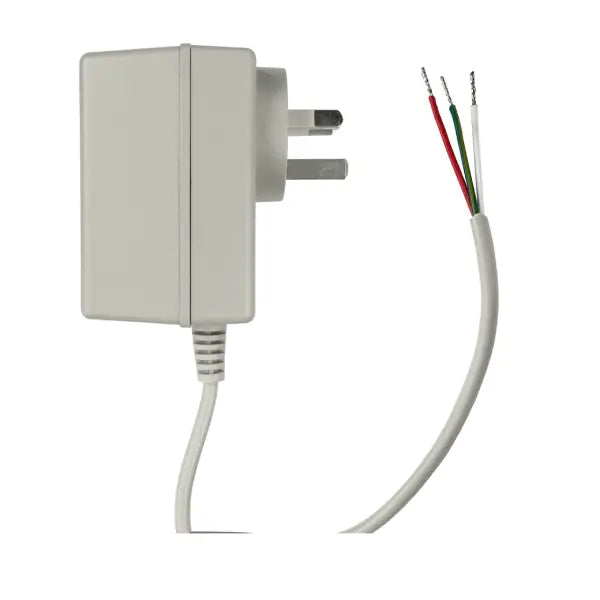

  • 1 x Power Pack 16 Volt 1.5 Amp, T1615DAS

       8 Zones | Detectors | Sirens  | Power Supplies | Touchnav | Smartphone App

      The XR series of panels from Reliance is an intelligent hybrid security solution perfect for installations from residential to massive commercial entities, with an on-board smartphone app module for arming, disarming, and notifications of alarm events.

      It safeguards your home and family. Hills Reliance offers extraordinary power coupled with simplicity of use. The Hills Security Alarm System is ideal for all residential applications, and is expandable to meet the demands of growing families.

      Hills Security Alarm Systems– Keeping your family safe and protected with innovative. Stylish.

      Easy to Operate alarm system the Hills Reliance uses advanced technology to make your life easier.

      Backward Compatible- this alarm system is backwards compatible, which allows for ease of upgrade for existing sites.

      Alarm System Features

      • 32 Modules
      • 4 Inputs
      • 8 Onboard inputs, zone doubling
      • 24 inputs expanders
      • UltraSync + Smart App Support
      • Supports- 4 Areas
      • Supports- 16 Codepads

      Panel Capabilities

      • Supports-24 Zones
      • Supports- 4 Areas
      • Pin Codes- 40
      • Real time event History-1024
      • IP Reporting/Lan- Onboard
      • ITI Wireless Receiver-Onboard
      • Web Programming-Onboard & Web Portal

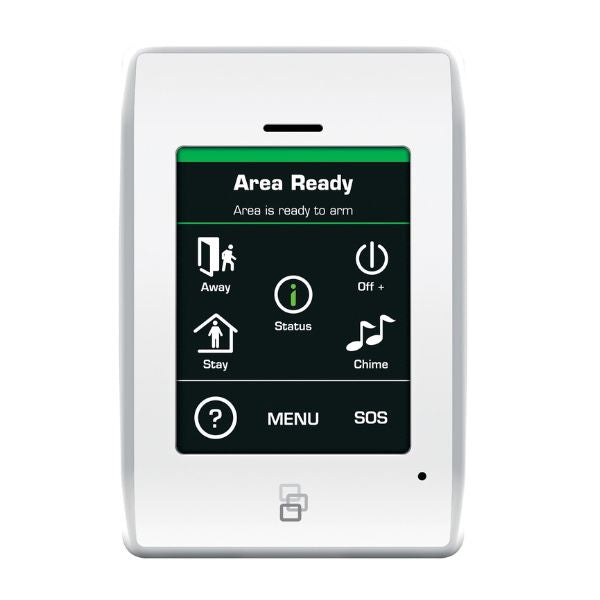

        Touchnav Code Pad

        Ideal for almost any size application, the Hills Reliance Touch Screen Keypad offers powerful yet simple control of any Reliance security system.

        • An intuitive interface, 3.5' touch screen
        • Quick Keys for rapid system arming
        • Status updates enable quick and easy system management

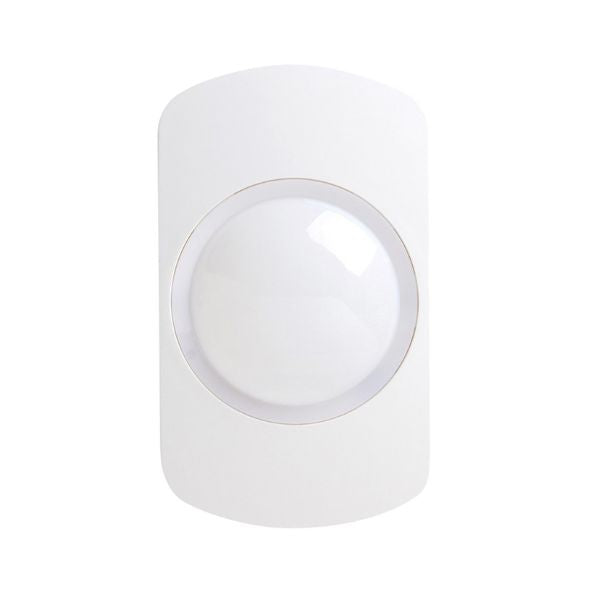

        Guardall Pet Friendly Detector

        Model: GP15

        Guardall’s motion detectors are high performing, most reliable, easiest to install range of detectors, ever. Grade 2 wired wall mount detector with 15m / 90˚ volumetric coverage

        • 15m / 90˚ volumetric coverage
        • Dual element pyro
        • Optional PetWise mode
        • EN50131-2-2 Grade 2

        Slimline Siren Kit

        All in one LED plastic cover with a built-in speaker

        • Plug pack for control panel
        • Installation Manual and User Guide
        • Resistors
        • Internal piezo screamer
        • 12 Volt back up battery
        • 3 x CTC Security High resolution alarm Warning stickers

        Onboard IP Module

        IP via ethernet allowing communications over the internet, for notification of alarm events or connection to a monitoring service.

        • Receive push notifications to your smartphone
        • Arm or disarm your alarm system remotely
        • Check if doors & windows are open
        • Monitor certain areas or zones on your smartphone device
        • Monitor history of users
        • View all events

        Ultra Sync Technology- Encrypted communication via cloud service- can also be connected to a control room for monitoring.

          Ultra Sync+ Mobile App for Reliance XR Series Alarm System

            Customise your Reliance XR security alarm system and add functionality as its needed with a range of detection devices.

            Hybrid Panel

            This alarm system supports a mix of wired and wireless detectors and peripherals out of the box.

            Reliance XR Series Alarm System


            Control- Codepads, fobs, readers

            Detection- PIR sensors, reed switches, glass, seismic

            Indication- Internal piezo, External Siren, External Satellite siren

            Expansion- WiFi+4G Module, Zone Expander, Wireless Repeater

            Software - for window for remote programming, mobile app.

            Remote configuration

            • Configure/manage your Reliance XR system
            • Connect locally or over the internet
            • Backup site programming
            • Transfer backed up site programming to new panel

            Alarm Benefits

            The Hills Reliance Security Alarm system offers a range of benefits for homeowners and business owners alike. Some of the key benefits include:

            1. Enhanced Security: One of the most significant benefits of a Hills Reliance Security Alarm system is the enhanced security it provides. The system is designed to detect any unauthorized entry or attempted intrusion into your home or business, and it can alert you or the authorities immediately.
            2. Deterrent: The presence of a security alarm system can serve as a deterrent to potential intruders. Knowing that the property is protected by a security system, burglars may choose to target another property instead.
            3. Remote Monitoring: With the Hills Reliance Security Alarm system, you can monitor your property remotely. You can arm or disarm the system, receive alerts, and view live video feeds from your smartphone or other mobile devices.
            4. Smartphone App- Stay connected to your alarm system with the UltraSync+ Mobile app, pre-installed with your Smartphone Module. Easily arm and disarm remotely, monitor door and window status, receive updates to your mobile device, and review alarm event history.
            5. Smoke Detection: The system can also detect smoke with a smoke detector connected to your security alarm. If any of these dangerous situations are detected, the system will alert you and/or the authorities, potentially saving lives and property.
            6. Insurance Benefits: Many insurance companies offer discounts for homes and businesses that have a security alarm system installed. The Hills Reliance Security Alarm system can help you save money on your insurance premiums.
            7. Peace of Mind: Ultimately, the Hills Reliance Security Alarm system provides peace of mind. Knowing that your property is protected and that you can monitor it remotely can help you feel more secure and less anxious about the safety of your home or business.
