Description

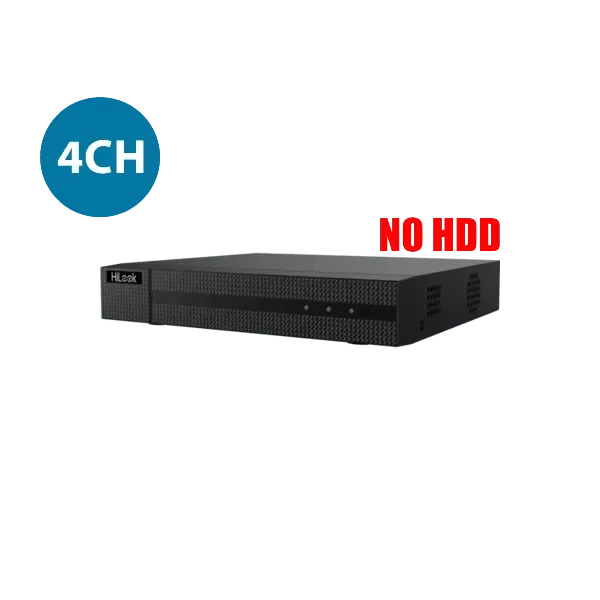

HiLook 4 Channel Network Video Recorder – NVR-104MH-C/4P(D)
Upgrade your CCTV system with the HiLook 4 Channel NVR, offering plug-and-play support for up to 4 IP cameras. Designed for performance, this PoE-enabled recorder supports H.265+ compression for efficient storage and smooth 4K HDMI output — ideal for small businesses or home surveillance systems.
Model: NVR-104MH-C/4P(D)
Note: Price excludes hard disk drive – sold separately.
🎥 Key Features
-
Supports up to 4 IP camera inputs
-
Compatible with H.265+/H.265/H.264+/H.264 video formats
-
Decoding capacity: 1-ch @ 8MP or 4-ch @ 1080p
-
PoE built-in: 4 channels
-
Plug & play for easy setup
-
One SATA interface: Supports up to 8TB HDD (not included)
-
Supports real-time 4K HDMI and VGA output
-
Up to 40 Mbps incoming bandwidth
-
Two-way audio support via RCA
-
1U compact chassis – space-saving design
📐 Specifications Snapshot
Video & Audio:
-
HDMI Output: 4K (3840×2160)/30Hz, 1080p/60Hz, and more
-
Audio Output: 1-ch RCA
-
Decoding Formats: H.265+, H.265, H.264+, H.264, MPEG4
-
Recording Resolutions: 8MP to QCIF
-
Synchronous Playback: Up to 4 channels
Network:
-
Protocols: TCP/IP, Hik-Connect, DHCP, DNS, DDNS, NTP, and more
-
PoE: 4-ch, IEEE 802.3af/at, ≤50W total power
-
Network Interface: 1 x RJ-45 Ethernet
Storage & Interface:
-
SATA: 1 Bay (up to 8TB HDD)
-
USB: 2 × USB 2.0 ports
General:
-
Power Supply: 48 VDC, 1.35 A
-
Operating Temp: -10°C to +55°C
-
Dimensions: 265 × 225 × 48 mm
-
Weight: ≤1 kg
🛠 Installation Services Available
CTC offers fixed-price professional installation by licensed technicians across the Sydney Metro area, with discounted rates in Seven Hills and surrounding suburbs.
📍 Available throughout Sydney Metro – discounted rates in the Seven Hills area.
📐 Send us your floor plans for a free quote and custom security coverage plan.
🛒 Shop with confidence at CTC Security— your trusted source for HiLook surveillance cameras and professional security solutions.
