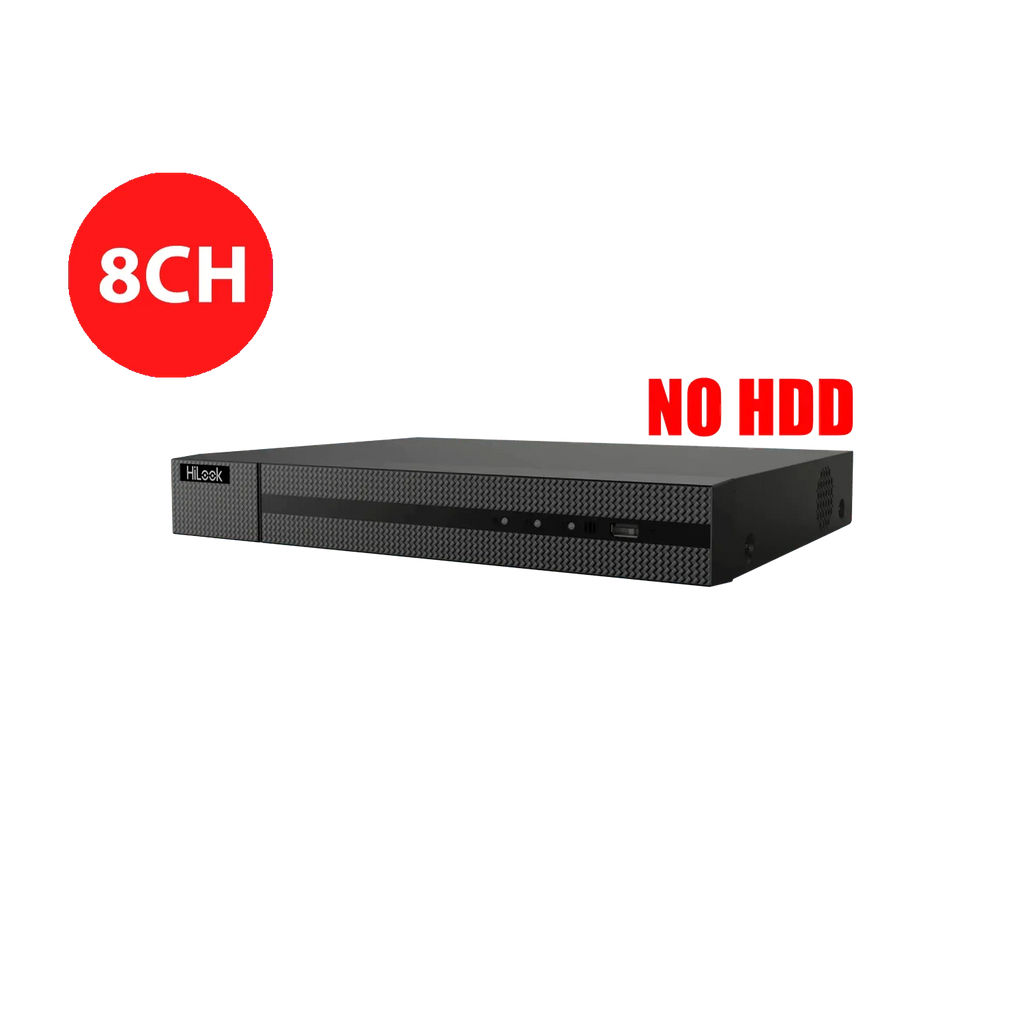

HiLook 8 Channel Network Video Recorder, NVR-108MH-C8P(D)

HiLook 8 Channel Network Video Recorder – NVR-108MH-C8P(D)

Upgrade your security system with the HiLook NVR-108MH-C/8P, a powerful 8-channel network video recorder that provides reliable performance and seamless plug-and-play support for up to 8 IP cameras. With Power over Ethernet (PoE), this unit simplifies installation and reduces cabling costs. Ideal for both home and business surveillance applications.

Model: NVR-108MH-C8P(D)
Note: Hard disk drive not included – sold separately.

🔧 Recorder Features

• Supports up to 8 IP camera inputs

• Built-in PoE (Power over Ethernet) for easy installation

• Supports H.265+, H.265, H.264+, and H.264 compression formats

• 1-ch @ 8 MP or 4-ch @ 1080p decoding capacity

• Up to 40 Mbps incoming bandwidth

• Up to 8TB HDD capacity supported (1x SATA interface)

• Dual video output: HDMI (4K) + VGA

• Two-way audio support via RCA

• Remote access via Hik-Connect

🖥 Specifications

📹 Video and Audio

• IP Video Input: 8-ch

• HDMI Output: Up to 4K (3840 × 2160 @ 30Hz)

• VGA Output: Up to 1920 × 1080 @ 60Hz

• Audio Output: 1-ch, RCA

• Two-Way Audio: 1-ch RCA input

🔄 Decoding & Playback

• Decoding Capability: 1-ch @ 8MP / 4-ch @ 1080p

• Synchronous Playback: 4-ch

• Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p and lower

🌐 Network & PoE

• Network Protocols: TCP/IP, DHCP, Hik-Connect, DDNS, NTP, SMTP, HTTPS, etc.

• Ethernet Interface: 1x RJ-45, 10/100/1000 Mbps

• PoE Ports: 4-ch, IEEE 802.3 af/at

• PoE Power Budget: ≤ 50W

💾 Storage & Interface

• HDD Bay: 1x SATA, supports up to 8TB

• USB: 2x USB 2.0

• RAID: Not supported

⚙️ General

• Power Supply: 48 VDC, 1.35 A

• Power Consumption: ≤ 10W (without PoE)

• Operating Temp: -10°C to +55°C

• Dimensions: 265 × 225 × 48 mm

• Weight: ≤ 1 kg
