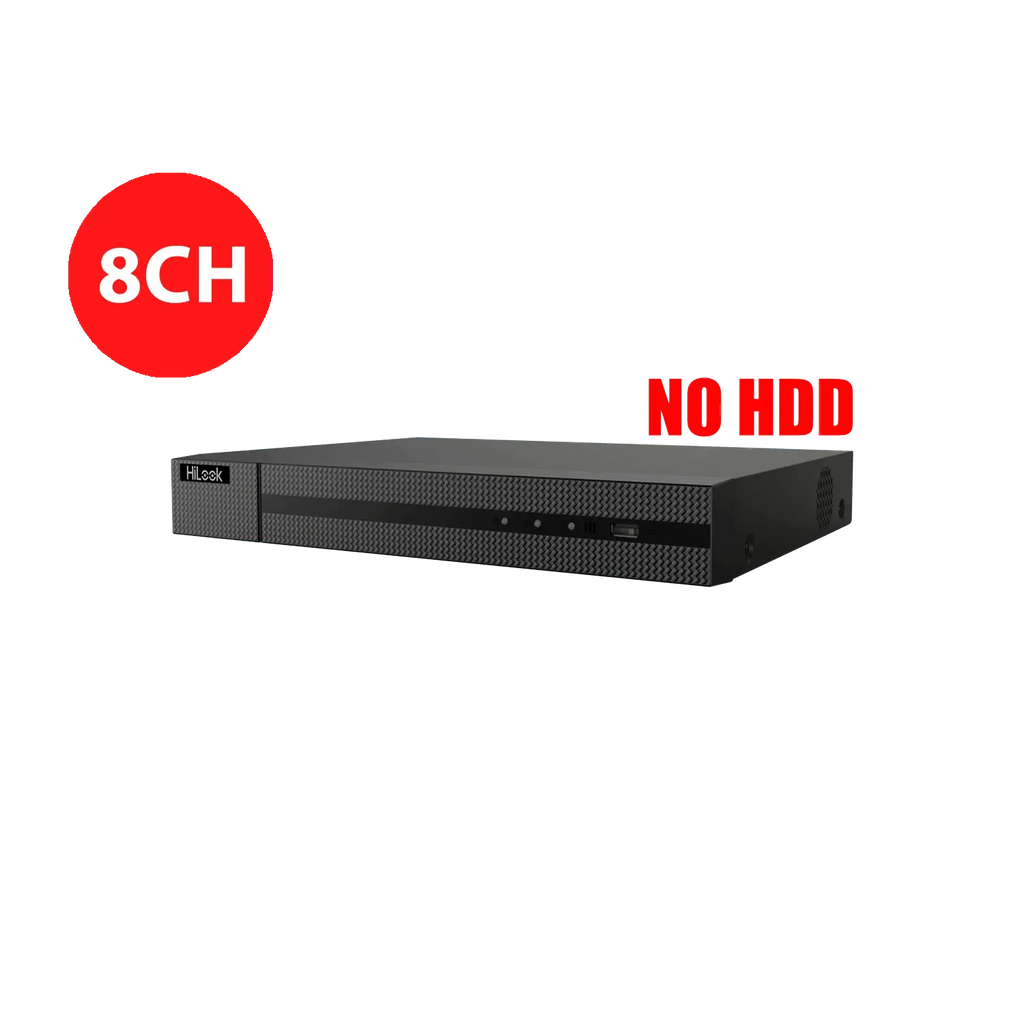

HiLook 8 Channel Network Video Recorder, NVR-108MH-K-8P

HiLook 8 Channel Network Video Recorder – NVR-108MH-K-8P

Upgrade your surveillance system with the HiLook NVR-108MH-K-8P, an advanced 8-channel network video recorder equipped with 8 PoE ports for plug-and-play simplicity. Supporting AI-powered smart detection, high-resolution decoding, and efficient H.265+ compression, this NVR is the ideal solution for residential, retail, and commercial security applications.

With support for up to 12MP input, this recorder handles high-definition camera feeds with ease, offering flexible display options and seamless remote access through Hik-Connect.

🛠 Model: NVR-108MH-K-8P
📦 Note: Hard drive not included – sold separately.

Recorder Features:

🎥 Supports 8 IP Cameras – Manage up to 8 IP channels simultaneously with real-time monitoring and recording.

🔌 8x PoE Ports – Power your cameras directly from the NVR to simplify cabling and reduce installation time.

🎞 Multi-Format Compression – Supports H.265+, H.265, H.264+, and H.264 formats for flexible and efficient recording.

🧠 HiLook AI Technology – Reduces manual intervention with smart event management and analytics.

🖥 High-Resolution Decoding – Handles 1-ch @ 12MP, 2-ch @ 8MP, 4-ch @ 4MP, or 8-ch @ 1080p for sharp video playback.

🌐 Up to 80 Mbps Incoming Bandwidth – Ideal for high-quality multi-camera setups.

🗄 Large Storage Support – 1x SATA interface, supports up to 8TB HDD (sold separately).

🖴 Dual Output – HDMI (4K) and VGA output for flexible display options.

🎧 Audio Support – Includes two-way audio via RCA interface.

📱 Remote Access – Monitor and manage your system on the go via the Hik-Connect app.

Specifications

📹 Video and Audio

• IP Camera Inputs: 8

• HDMI Output: Up to 4K (3840 × 2160 @ 30Hz)

• VGA Output: Up to 1920 × 1080 @ 60Hz

• Audio Out: 1-ch, RCA

• Two-Way Audio: 1-ch, RCA in

🔄 Decoding & Playback

• Decoding: Up to 1-ch @ 12MP / 2-ch @ 8MP / 4-ch @ 4MP / 8-ch @ 1080p

• Playback: 4-ch synchronous

• Supported Resolutions: 12MP / 8MP / 6MP / 5MP / 4MP / 1080p / lower

🌐 Network & PoE

• Protocols: TCP/IP, DHCP, Hik-Connect, DDNS, NTP, HTTPS, SMTP

• LAN Port: 1x RJ-45, 10/100/1000 Mbps

• PoE Ports: 8, IEEE 802.3af/at

• Total PoE Budget: ≤ 120W

💾 Storage & Interface

• HDD Bay: 1x SATA, supports up to 8TB

• USB: 2x USB 2.0

⚙️ General

• Power Supply: 48VDC, 1.35A

• Power Consumption: ≤ 10W (without PoE)

• Operating Temperature: -10°C to +55°C

• Dimensions: 265 × 225 × 48 mm

• Weight: ≤ 1 kg

🛒 Why Choose CTC ?

• Trusted Australian security experts since 1993

• ASIAL & ISO Certified

• Licensed security installers (Master Licence: 000102543)

• Nationwide shipping – fixed-price professional installation available across Sydney
