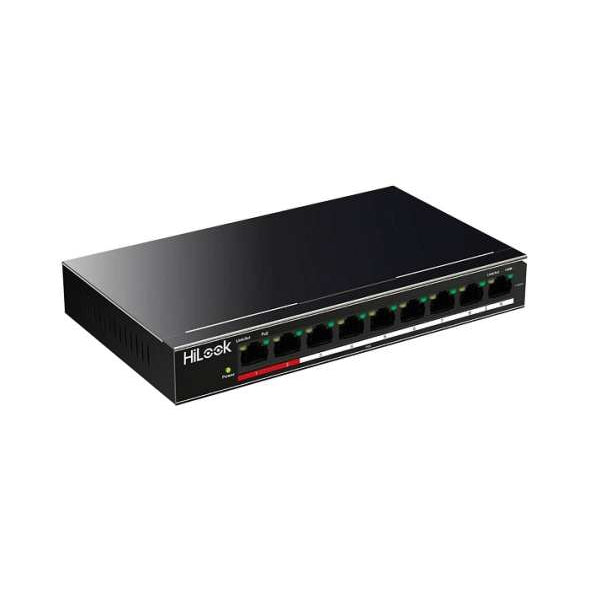

HiLook Network Switch 8 Port POE, NS-0109P-60

HiLook Network Switch 8 Port POE, NS-0109P-60 features advanced security technologies like Access Control Lists and IEEE 802.1X authentication for secure network access.

Model: NS-0109P-60

Unmanaged switch

Features

• Unmanaged switch with 8 x 100 Mbps PoE ports, 1 x 100 Mbps RJ45 port
• All ports support 6 kV lighting protection
• 60 W PoE power budget
• Maximum transmission distance is 250 meters for port 1 to 8 in "extend" mode
• MAC address auto learning and auto aging

Specifications

• General
• ShellMetal material, fan-free design
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Power Supply48 VDC, 1.35 A
• Storage Humidity5% to 95% (no condensation)
• Net Weight0.35 kg (0.77 lb)
• Gross Weight0.89 kg (1.96 lb)
• Dimension (L × H × D)170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
• Operating Humidity5% to 95% (no condensation)
• Power Consumption In Idle5 W

• Network Parameters
• Port Number 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding ModeS tore-and-forward switching
• Working Mode Standard mode (default); Extend mode
• MAC Address Table2 K
• Switching Capacity 1.8 Gbps
• Packet Forwarding Rate 1.339 Mpps
• Internal Cache1 Mbits
• High Priority PortsPorts 1 to 2
• Ports For Long-Distance Transmission Ports 1 to 8

• PoE Power Supply
• PoE Standard IEEE 802.3af, IEEE 802.3at
• PoE Power Pin Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
• PoE PortPorts 1 to 8
• Max. Port Power 30 W
• PoE Power Budget 60 W
• Max. Power Consumption 65 W
