Description

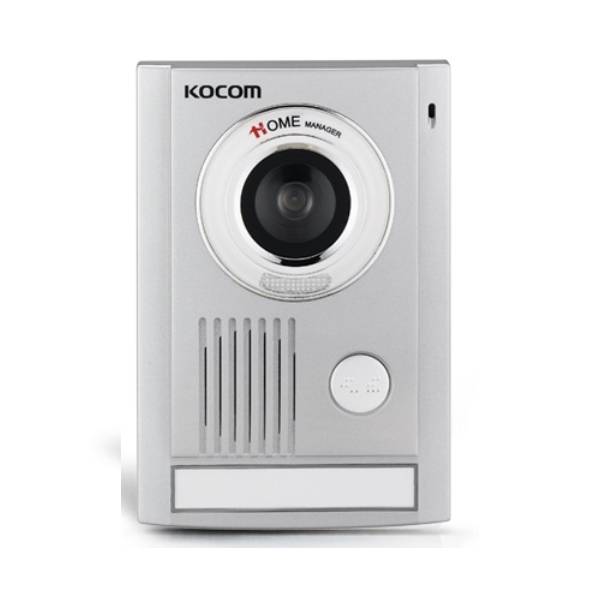

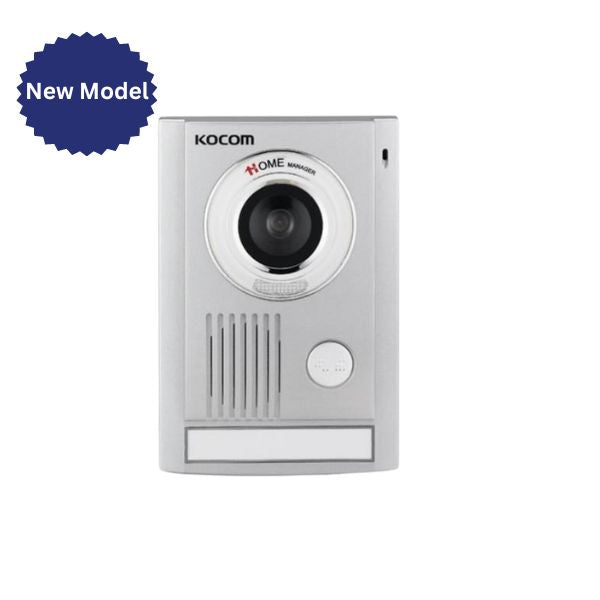

The Kocom door station KOCKCMC30(D1) is surface mounted to outside of premises, encased metal and is a simple 4 wire installation, it is surface mounted with night vision camera white LED's and a high resolution image.
Not compatible to old generation Monitor such as KCVD374, KCVD504, KCVD354
Model: KOCKCMC30(D1)
When it comes to ensuring the safety and security of your home and family, your options are not just limited to alarm systems and CCTV.
- Kocom intercoms give peace of mind to Australian homeowners
- Improve control and security in your home with just one touch though
- Kocom's latest range of communication solutions.
- Encased with refined designs and intelligent features,
- Kocom's award winning range of intercom and outdoor stations are assured to compete any home.
- Not compatible to old generation Monitor such as KCVD374, KCVD504, KCVD354
Features
- House call by household
- House & Lobby Call
- High-resolution image
- Power : DC 12V +- 1V ( Power from monitor)
- Power consumption :Max. 2.5 W Image format : 270,000 (EIA) / 320,000 (CCIR) pixels

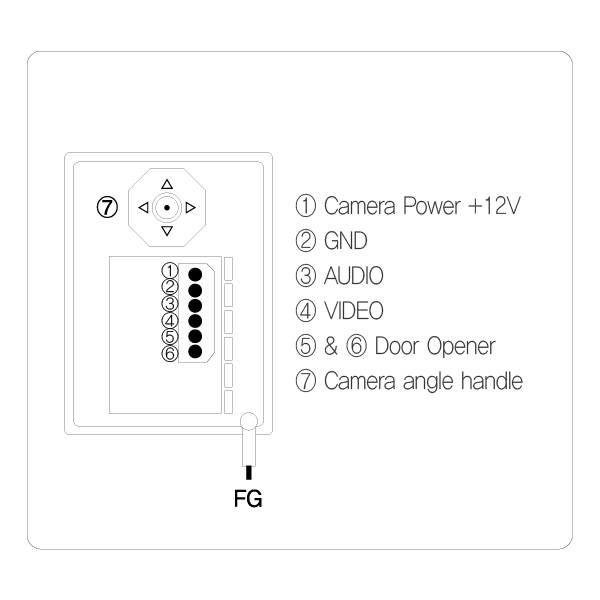

- Writing : 4 Wire Camera
- Colour TV system : NTSC/PAL Lens: F :2.0, f = 3.6mm
- Lighting :White LED ON Camera angle120°
- Body material :Metal aluminium illumination :0.1 lux on the object (IR LED ON)
- Mount type : Surface mount Door lock connection :
- Camera Dimension (mm) : 110(W)×158(H)×39(D)
- Not compatible to old generation Monitor such as KCVD374, KCVD504, KCVD354
Shop CTC Security for best deals on Kocom Door Stations
Downloads
Kocom Door Station 4 wire, KC-MC30D1 Brochure
Specifications
| Power | DC 12V±1V(power from monitor) |
|---|---|
| Power Consumption | Max. 3W |
| Wiring | 4 Wire |
| Body Material | Metal |
| Mount Type | Surface mount |
| Camera Angle | 100˚(Angle Adjustable) |
| Min, Illumination | 0.1 lux(LED ON) |
| Camera pixel | 2 million pixel |
| Dimension | 110(W) x 158(H) x 39(D)mm |
