Description

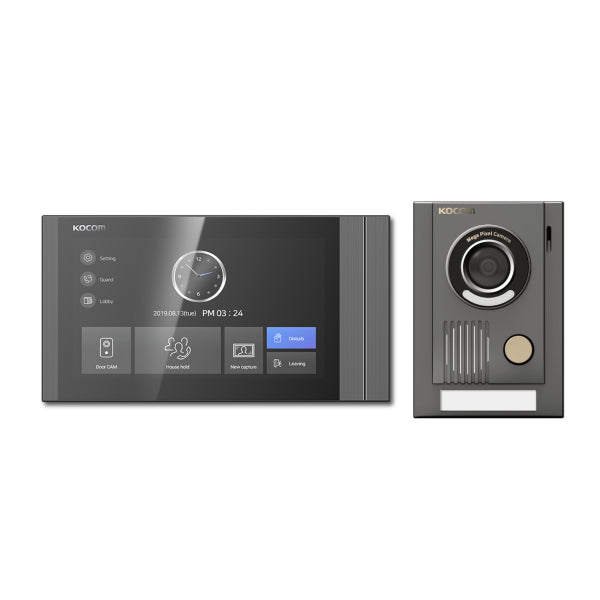

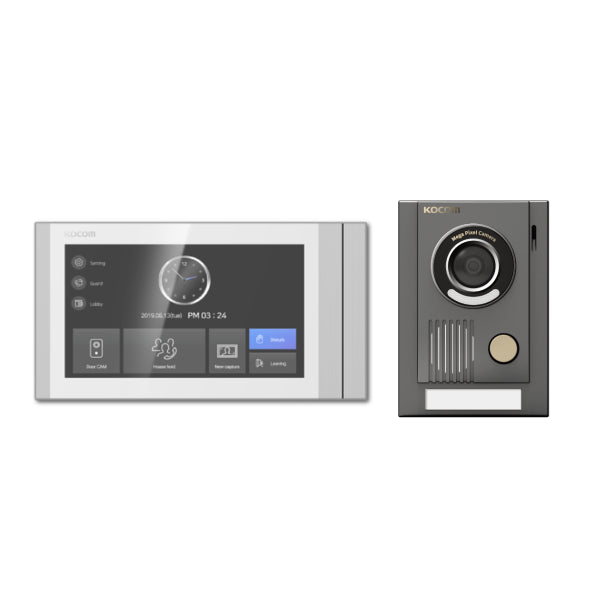

With high resolution full touch screen, auto video recording of door station and CCTV compatible, the Kocom IP Intercom Kit provides an additional layer of security for your home.
When it comes to ensuring the safety and security of your home and family, the Kocom IP intercom kit can connect to multiple CCTV cameras providing an extra layer of security for your home.
In the Kit
- 1 x Monitor Colour 7" Touch Screen in Black or White
- 1 x Door Station, MC30M
- 1 x Power supply for Monitor Station
- Uses manual

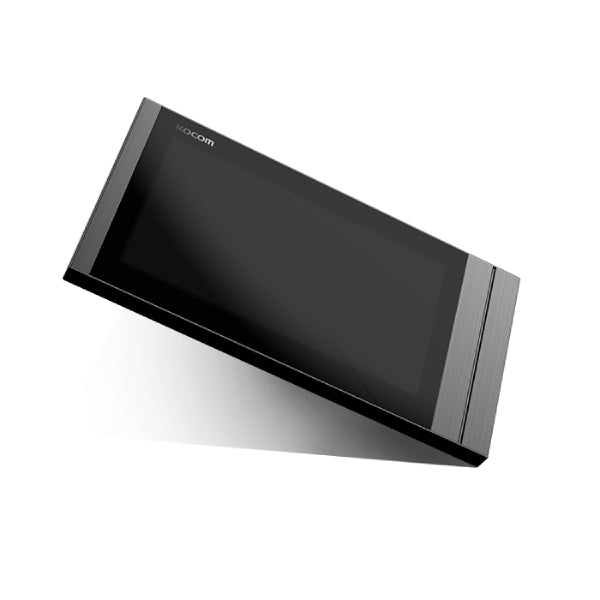

Metal hair bezel design, ennoble the living space by balanced beauty and subtly glossy metallic hairline design of the IP intercom monitor with tempered glass.
Major Advantages
Excellent quality of Video- 1024-x600 screen shows clear and bright image of visitors.

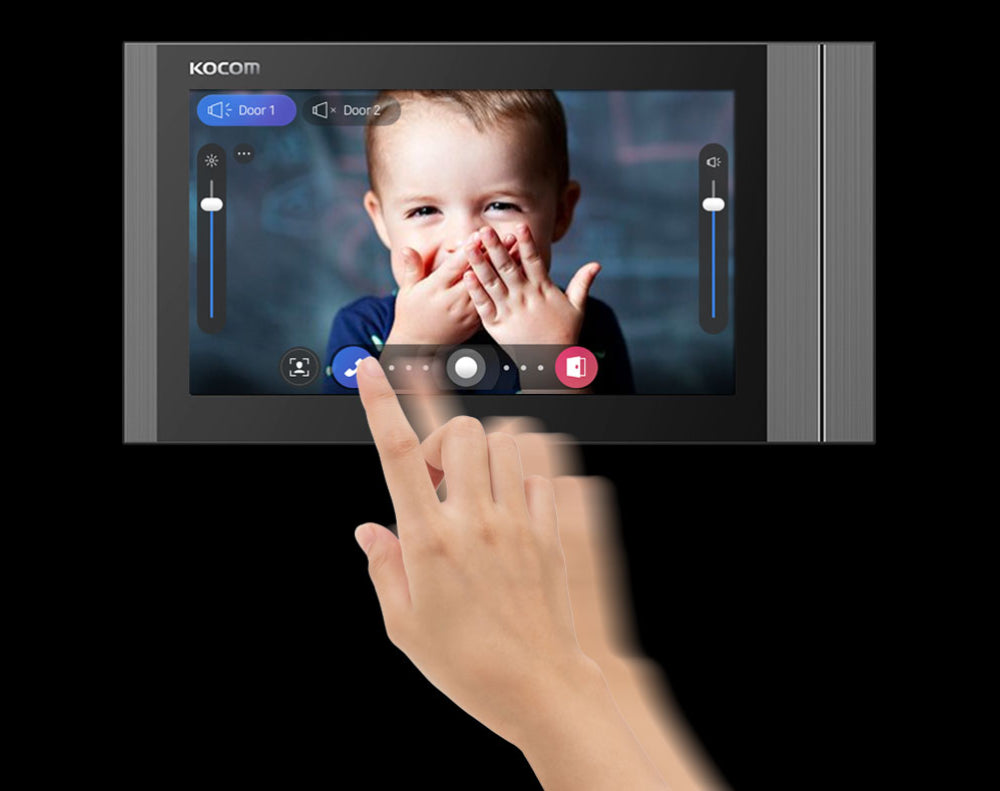

GUI & FULL Touch Capacitive Screen- Convenient and easy for operation by using full touch GUI
Auto Still Image Capture-Checking history of visitors by automatic image storage, max. 32cuts
Multi-Connection with Door Cameras and Monitors Connection of max. 2 door cameras and 4 monitors makes users give convenient access control any places at home.
Automatic & Simple Installation for Extra Video Devices Automatically being ready for the usage of extra video devices(door camera, CCTV, monitor) without complicated works after wiring them up.
High Definition 1080p-CCTV(Full HD) Connection AHD / TVI / CVI connection.

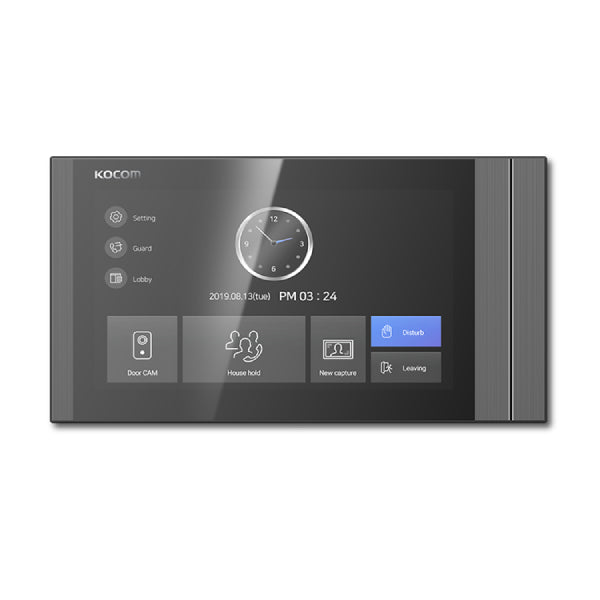

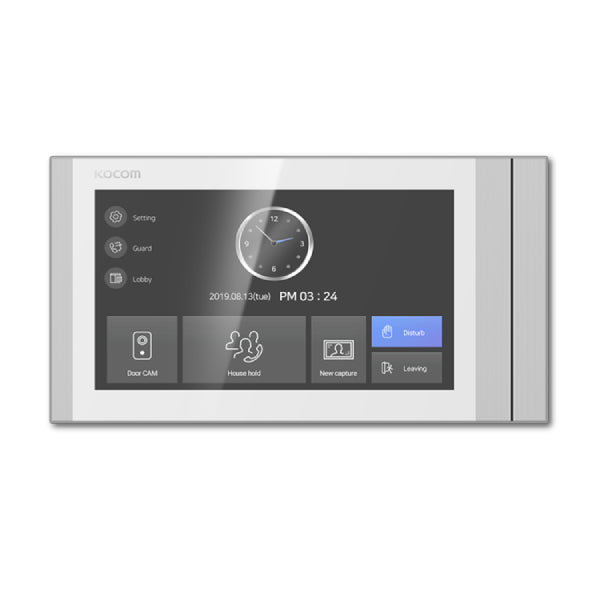

Kocom IP Monitor Features
- 7" Digital LCD Screen(NTSC/PAL)
- GUI, Full Touch Screen
- Compatible with 1080p(FHD) AHD CCTV (TVI , AHD , CVI)
- Auto still image capture(Max 32 cuts) Door Camera
- Connection up to 2 Door Cameras and 4 Monitors with Sub-interphone(KIP-32G)
- Automatic & Simple Installation for Extra Video Devices
- Selective Calling & Answering between Indoor Units
- Multifamily, Apartment Application (KLP-C420 SYSTEM)

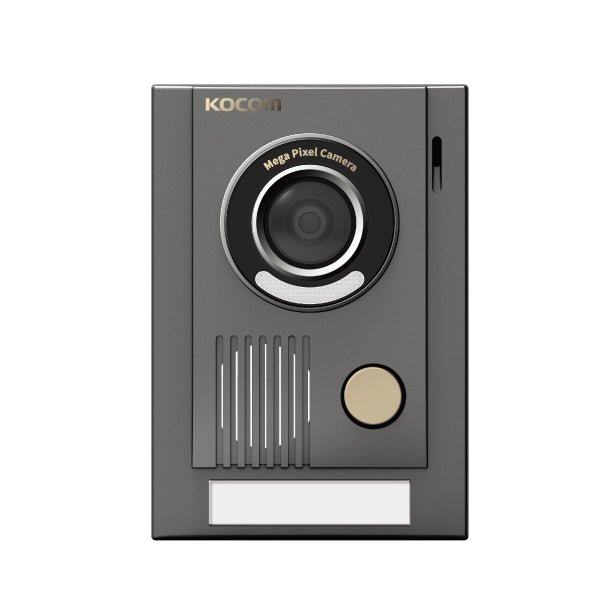

Kocom IP Door Station KOCKCMC30M
- House call function
- High resolution video transmission
- Night-time visitor identification function
- 2 million pixel
- Dimensions 218(W) X119(H) X22(D)mm
Expansion
Connection up to 2 x Outdoor Door Cameras and 4 x Indoor Monitors or 1 x Outdoor Door Camera and 1x Camera 1080P AHD CCTV
Specifications
| IP Door Station | |
| Power | DC 12V±1V(power from monitor) |
| Power Consumption | Max. 3W |
| Wiring | 4 Wire |
| Body Material | Metal |
| Mount Type | Surface mount |
| Camera Angle | 100˚(Angle Adjustable) |
| Min, Illumination | 0.1 lux(LED ON) |
| Camera pixel | 2 million pixel |
| Dimension | 110(W) x 158(H) x 39(D)mm |
| Model No. | KCV-T701SM AC TYPE / KCV-T701SM DC TYPE |
|---|---|
| Power Source | 100-240V~, 50/60Hz / DC 14V-2A or DC 15V-2A |
| Power Consumption | 2.65W(±20%)(Stand by), 9.1W(±20%)(In load) |
| LCD | 7 inch LCD |
| Maximum wiring distance | Door camera to last VDP : 100m ( The IN-OUT wiring must be done ) |
| CCTV type | Analog HD type ( TVI, CVI, AHD) , (720p , 1080p) |
| Mount Type | Surface mount |
| Operating Temperature | 0℃ ~ +40℃ |
| Dimension | 218(W) x 119(H) x 22(D) mm / 218(W) x 119(H) x 18(D) mm |
