Description
NX Remote Control Kit with 3 x Stainless steel remotes
Model: S1890A+S1896A

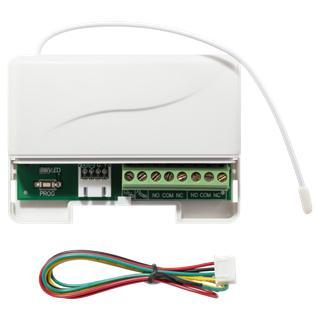

RSI02 remote kit comprises one receiver, two pre-learned remotes, a 4-wire harness and a quick mounting
plate. Through Jumper Setting, It can be set to work with NX/Reliance alarm panels to operate Arm (away/stay), Disarm and Panic
via the keypad data bus. The receiver is also equipped with two relays that can be used to operate other
devices such as garage door
Specifications
Remote
- Operating Range: A minimum of 50m (open air)
- 433.92 MHz Keeloq rolling code: 4.3 billion combination; SAW resonator (filter) locked (+/- 75KHz)
- Transmitting power: <10mW
- Operating Voltage: 6 V powered by 2 x 3 VDC lithium batteries
- Battery Life: 3 years under normal operating conditions
- Current: <1uA standby; 12mA max.
- Low battery indication: LED on the remote flashes when the button is pressed
- Auto shutoff: the remote stops transmitting if a button gets pressed for 25s.
- Operating voltage: 9-15VDC; Current: 10mA Standby; 100mA max.
Outputs:
- Data – Arm (away/stay), Disarm and Panic. 4-wire harness provided
- Two programmable relay outputs; SPDT; rating 1A 24VDC/120VAC
- Chirp & Flash “Switch to Ground” outputs for Arm and Disarm notification
- Standard capacity: 25 remotes
- Mounting plate provided for quick receiver installation
Hills Reliance Alarm remote Kit Compatible with:
- Hills Reliance 8
- Hills Reliance 12
- Hills Reliance 128
- DAS alarm systems
- Hills Reliance NX4 alarms
- Hills Reliance NX8 alarms
- Hills Reliance NX16 alarm systems
Shop CTC Security for best deals on Hills Security Alarm Systems
