Description

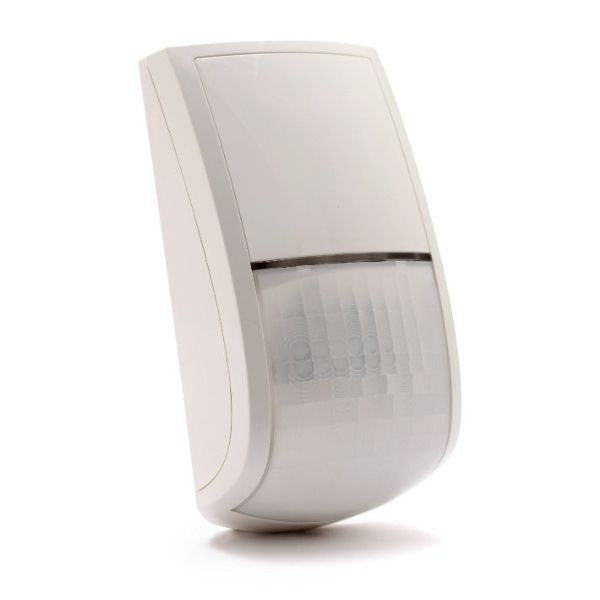

BWare™ is RISCO Group’s state-of-the-art commercial detector seriesn Line RK515DTGL00B
Model : RK515DTGL00B
Powered by RISCO’s detection technologies, these elegant and easy to install detectors are ideal for commercial, institutional and high-end residential installations. BWare™ is extremely reliable thanks to its usage of K-band microwave and other unique detection technologies. A convex lens provides enhanced catch performance and gold-plated wall and cover tampers for higher reliability. The BWare™ Bus models save installation time and cost, and can be remotely serviced using the RISCO Bus. The BWare™ series is ideal for a wide range of commercial and high security applications, with Grade 2 and Grade 3 versions of Dual Technology, QUAD and RISCO Bus models available.
Specifications
| Coverage | 15m 90° |
| Mounting Height | 2.1m - 2.7m |
| Detection Sensors | 2 Dual Element PIRs |
| Anti-Cloak™ Technology (ACT) | Yes |
| Lens type | Convex Fresnel Lens |
| Green Line™ Technology | Yes |
| Extra Zone Input for Bus models | Yes |
| Built-in EOL resistors for Relay models | Double EOL |
| Tampers | Gold plated cover tamper |
| LED & Set inputs | Yes |
| White Light Optical Filtering | Pigmented Fresnel lens |
| Temperature Compensation | Patented True Temperature compensation |
| Operating Voltage | 9 to 16VDC |
| Current Consumption at 12VDC | 16mA (typical) 39mA (max.) |
| Output Contacts: 100mA, 24V, N C | Alarm, Tamper |
| RF immunity: 10MHz to 3GHz | According to EN50130-4 |
| Operating Temperature | -20° C to 55° C |
| Storage Temperature | -20° C to 60° C |
| Dimensions (HxWxD) | 120x64x40mm |
