Description

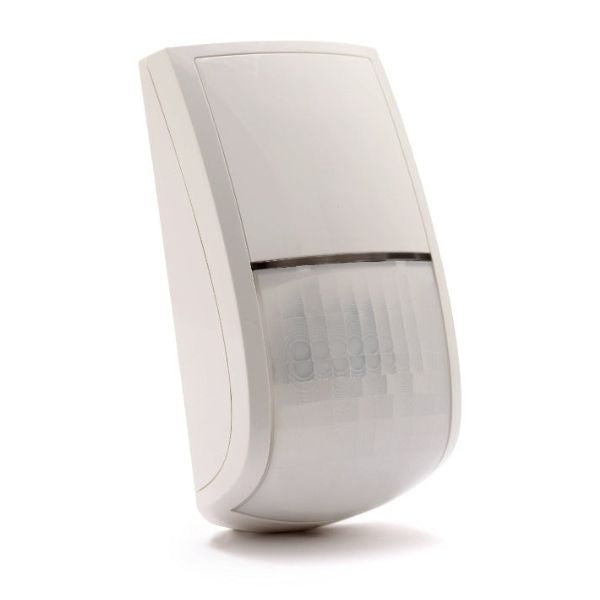

Risco BWare Dual Technology 15mtr G3 Detector This top-of-the-line detector helps you feel secure in your home, with its combination of reliable dual-technology and 15 meter range.
Model; RK515DTG300B
- 15m 90° Coverage
- K-Band Microwave + PIR
- Convex Fresnel Lens
- Anti-Mask Detection Active Infrared
- White Light Optical Filtering
- True Temperature Compensation
- Built-in Triple EOL resistors, jumper selectable
- Gold Plated Wall and Cover tampers
- True temperature compensation
- Output Contacts Alarm, Tamper & Fault/AM
- Installation height 2.1m - 3.3m
Description
BWare™, RISCO Group’s state-of-the-art wired and wireless detector series for professional installations, scores high points for its smart and modern design in addition to its advanced technology and reliability.
The BWare™ series offers a comprehensive array of wired, wireless and Bus detectors utilizing RISCO’s industry-leading detection technologies, such as Anti-Cloak™ and K-band microwave for improved catch performance, including a unique wireless DT detector with active IR anti mask.
The BWare™ series is ideal for a wide range of commercial and high security applications, with Grade 2 and Grade 3 versions. The BWare™ smart detector family provides you with the flexibility to utilize professional detectors in any installation - wired, wireless
FUNCTIONS
BWare™ smart detector line provides professional installers with the ultimate choice for high-security commercial and residential installations. The wide selection of models offer the flexibility to choose the best fit for all installation types, whether for a bank, jewellery shop, office, or any other commercial or residential site.
The BWare™ smart detector series also utilizes several advanced technologies unique to RISCO Group for superior performance:
Grade 3 for increased security
BWare™ Grade 3 detectors meet and exceed EN50131 Grade 3 standards and include additional features that increase reliability and false alarm immunity.
Anti-Cloak™ Technology (ACT) for increased catch performance
Radically increases catch performance in situations where the PIR signal becomes too weak to detect an intruder such as when intruders attempt to “cloak themselves” or in a heat wave when the room temperature approaches 37ºC.
Convex Lens for enhanced performance
BWare™’s convex lens is superior as its larger size and convex shape allow more infrared radiation to enter the detector, improving focus on the sensor and enhancing performance and sensitivity.
Green Line™ Technology for a safer environment
An environmentally friendly solution protecting occupants from surplus microwave radiation emissions by disabling the active microwave channel when the alarm system is disarmed.
Built-in EOL Resistors for ease of installation
BWare™ relay detectors include built-in end-of-line resistors eliminating the need for installers to attach resistors in the detector, simplifying the installation and saving time.
K-Band Microwave for minimizing false alarms
Dramatically reduces false alarms from the microwave channel with reduced wall penetration (“bleeding”) so that people walking in a corridor outside the protected room do not cause false alarms.
SPECIFICATIONS
EN50131 | Grade 3, Class II |
Coverage | 15m (50’) 90° |
Mounting Height | 1.8m - 2.5m |
Detection Sensors | K-Band Microwave + PIR |
Anti-Cloak™ Technology (ACT) | ? |
Lens type | Convex Fresnel Lens |
Green Line™ Technology | ? |
Anti-Mask detection method | Active Infrared |
Extra Zone Input for Bus models | ? |
Built-in EOL resistors for Relay models | Triple EOL |
Tampers | Gold plated wall & cover tampers |
LED & Set inputs for relay models | ? |
White Light Optical Filtering | Pigmented PIR cover |
Temperature Compensation | Patented True Temperature compensation |
Operating Voltage wired models: | 9 to 16VDC |
Wired models Current Consumption at 12VDC | 16mA (typical) 39mA (max.) |
Output Contacts on relay models: 100mA, 24V, N.C |
Alarm, Tamper |
RF immunity: 10MHz to 3GHz | According to EN50130-4 |
Dimensions (HxWxD) | 120x64x40mm |
