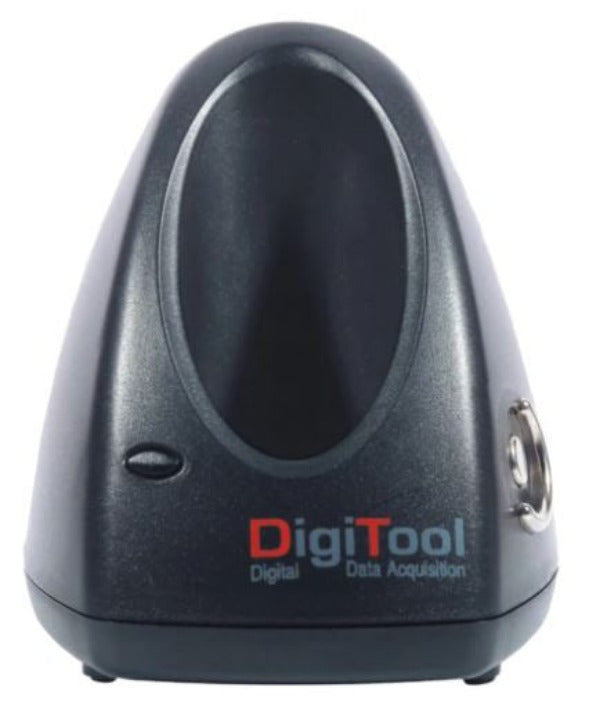

Rosslare GC-02 Data Acquisition Base

Data Acquisition Reader Base

ROSSLARE’S DIGITOOL® GC-02 BASE IS PART OF ROSSLARE’S DIGITOOL® GUARD PATROL SYSTEM ENCOMPASSING A COMPLETE RANGE OF PROFESSIONAL, LEADING-EDGE, HIGH-QUALITY, HIGH-PERFORMANCE PRODUCTS FOR PRIVATE AND PUBLIC SECTORS. SERVING AS A CHARGING STATION FOR ROSSLARE’S DIGITOOL® GC-01 READER, THE RUGGED GC-02 CAN BE WALL-MOUNTED OR USED ON A DESKTOP. IT PROVIDES AN RS-232 INTERFACE TO A SINGLE PC AND A LOCAL ID DALLAS IBUTTON™ CHIP READER FOR LOCATION AND EVENT TAGS
ENROLLMENT. THE DIGITOOL® GC-02 IS THE IDEAL COMPONENT FOR USE WITH LOCAL, SINGLE-PC-CONTROLLED APPLICATIONS.

Model: GC-02

• Spring-loaded contacts for easy docking of the GC-01
• Built-in AC-DC adapter and fast charger for the GC-01’s 1800 mAh lithium-ion battery
• AC-DC wall transformer included
• Built-in ID chip reader for enrollment and recording of locations, events, and user tag data
• Ultra-low power consumption
• 3-color LED battery status indicator:
• Orange – GC-01 Reader not docked
• Red – GC-01 is docked and charging
• Green – GC-01 battery is fully charged
• Contains no parts that require user servicing
• Attractive, efficient, and rugged dust and water-resistant design
• Attractive, efficient, and rugged design

Professional Grade Features:

• Flexibility with the option to select models with Dallas iButton ID chip (GA-01/AT-32B)
• Rotating RS-232 9-pin serial port with a 3 mm Barrel socket
• Full duplex RS-232 communication at 9600 baud
• Small desktop footprint with rubber feet
• Wall-mount option helps save desktop space
• Integrates with the GCK-01 Kit, the GC-50 PSTN remote station communicator, and the Guard Patrol product family
• Interface compatibility with the GC-50 modem communicator to facilitate upgrading
