Slimline Vertical Wall Mount Security Cabinet and Monitor Bundle, SECCAB+LCDFL24K+HDMIBMTF

Save $95.00

Sale price$670.00 Regular price$765.00


This compact bundle comprises of a Security Cabinet where a system NVR can be safely installed and offering ease of system access in tight spots whenever needed. Kit comes with 24" display monitor to offer 1080p Full HD resolution, and a right-angle HDMI adapter for ease of installation


The SECCAB offers secure storage of CCTV surveillance, alarm & access control systems in difficult areas with limited space, such as behind refrigerators, in cupboards or wardrobes.

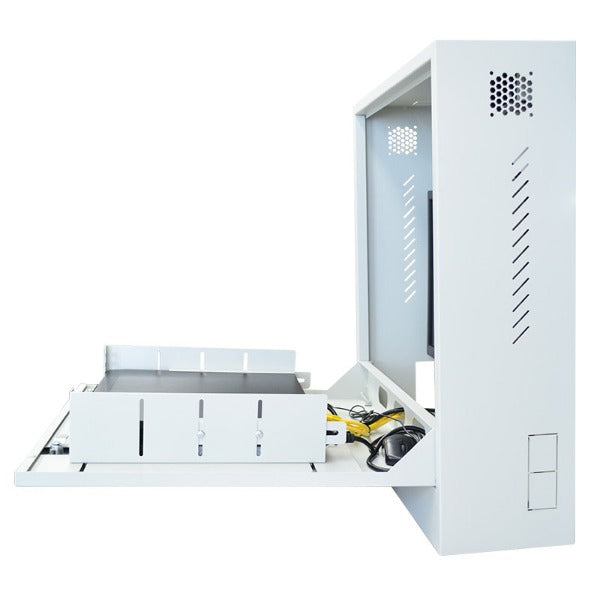

The SECCAB vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24'' LCD monitor. It can house 1 HDD, 2HDD and 4HDD bay NVRs and DVRs from VIP Vision, Watchguard, Securview. It can also accommodate a WGAP864 alarm system and professional VIP Vision access control system in a single cabinet.

Product features:

  • Full HD 1080p (1920 x 1080) video resolution
  • Horizontal facing input ports; 1 x HDMI input & 1 x VGA input
  • 178° (H) & 178°(V) extra-wide viewing angles
  • 8ms response time for smooth operation
  • 1000:1 contrast ratio
  • 1 x audio output
  • Low energy consumption (<0.3W standby)
  • External 19VDC power supply
  • VESA 100x100 mountable

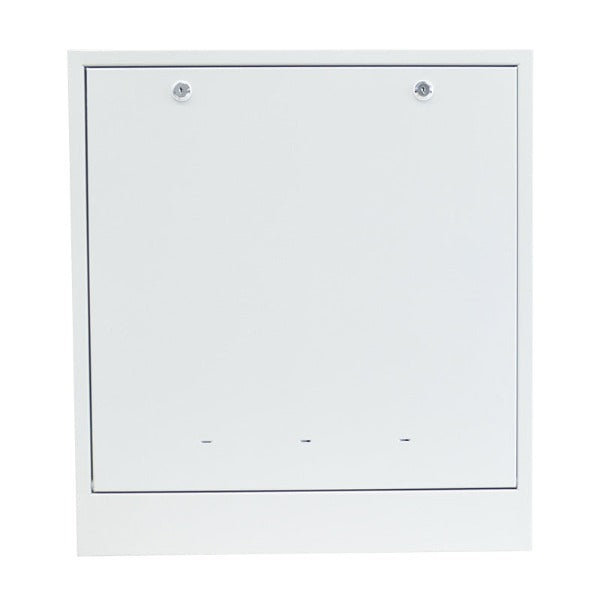

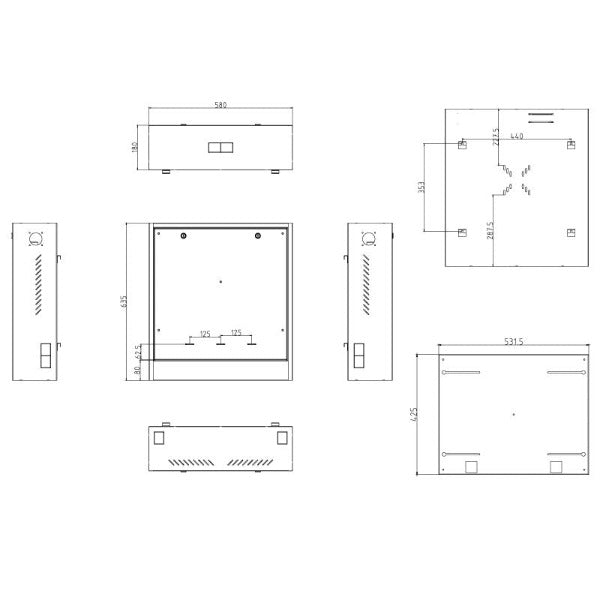

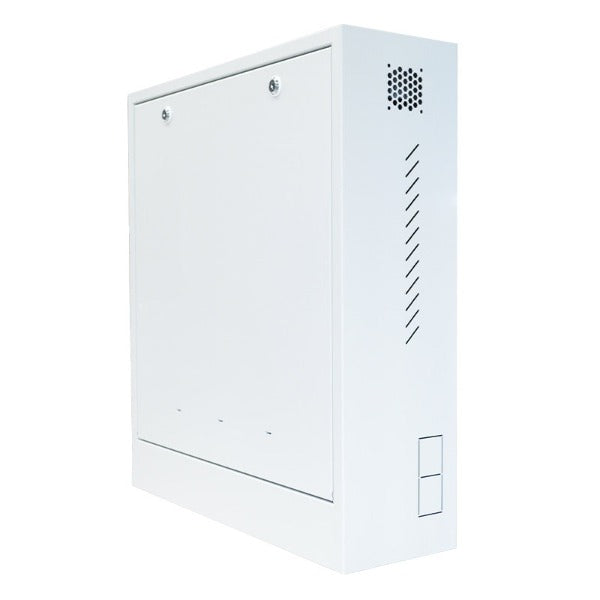

  • Compact; only 580(W) x 635(H)x 180(D)mm (closed)
  • Capacity: 2RU, 240~480mm width, 465mm depth
  • Cable management knockouts from all cabinet sides
  • Superior ventilation; optional 2 x 50mm cooling fans

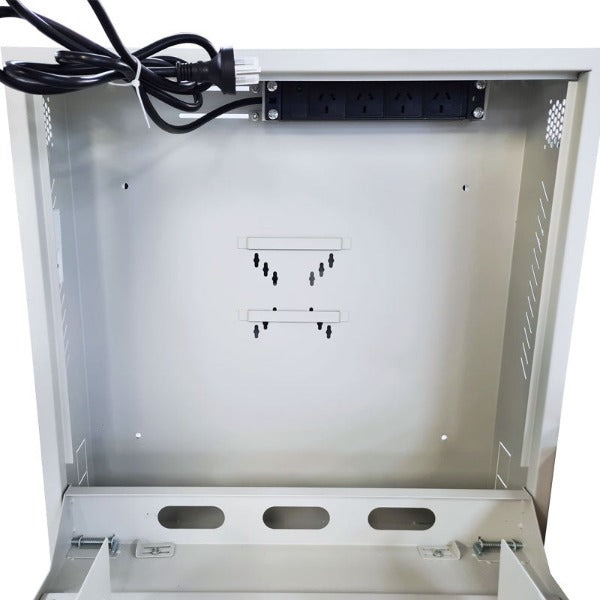

  • Integrated 4 x outlet powerboard & 2 x cabinet locks
  • 30kg cabinet load-bearing capacity (10kg vertical shelf)

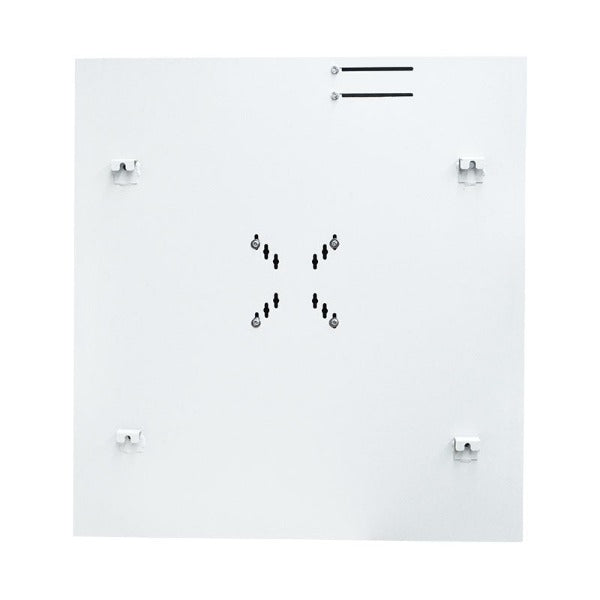

  • 440mm width between mount points to fit wall studs
  • SPCC steel construction and white powder coating

Kit Includes :

* Ensure monitor has vertical / downwards-facing input ports & power connectors
* 4 x nuts, washers & bolts included for monitor mounting

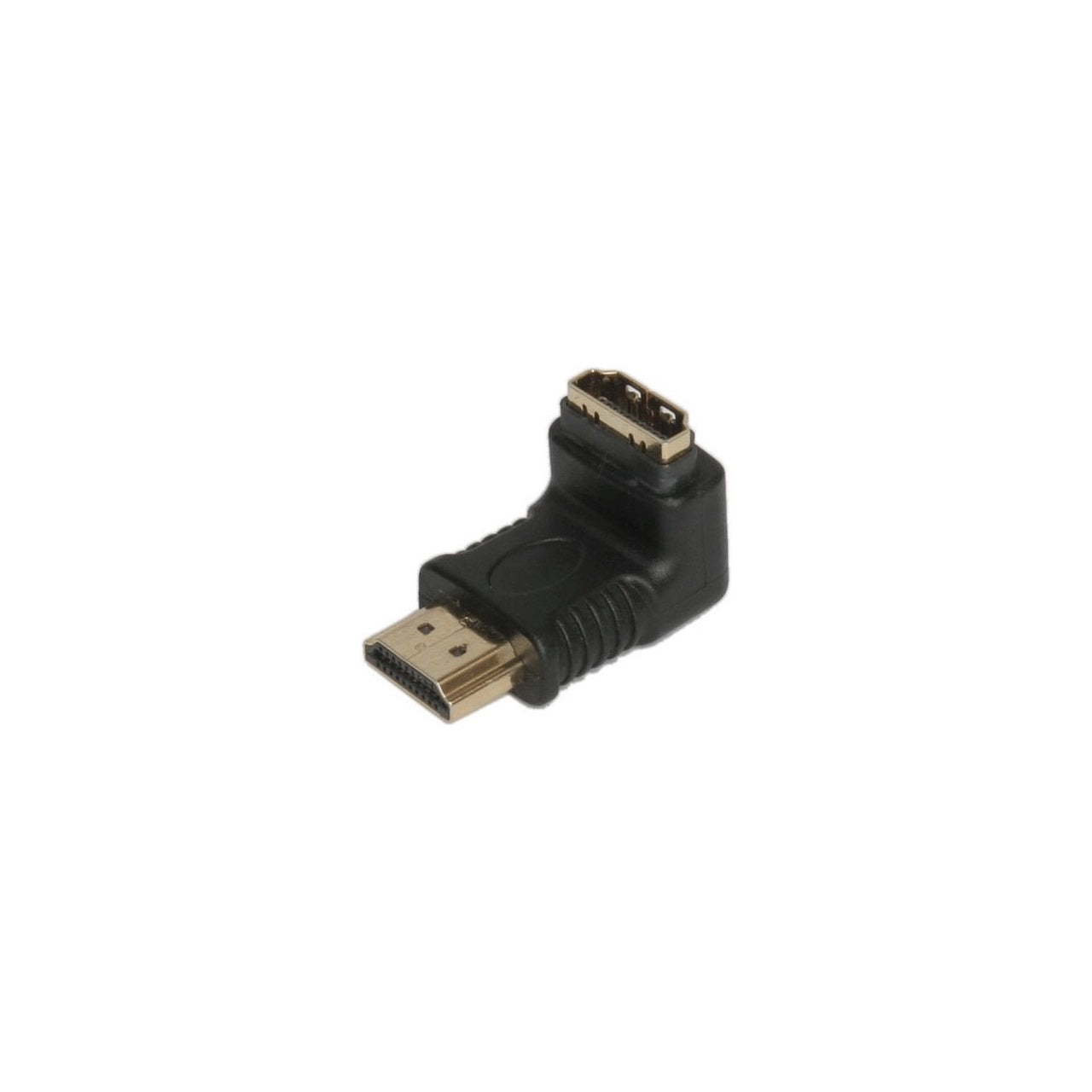

We recommending only using 23.8" Flashview 1080p LCD Surveillance Monitor (IPS) as other monitors may not fit, use Flashview HDMI Right-Angle Adapter (Male to Female) for ease of monitor setup inside cabinet.


SECCAB Product Datasheet

Flashview 22" & 24" Monitor Datasheet

CE/ RCM Certificate

RoHS Certificate
