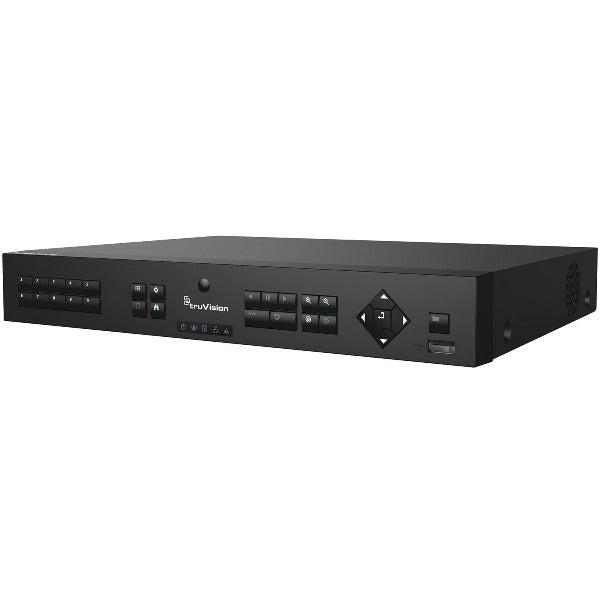

TruVision NVR 11, 16 channels, 2TB, TVN-1116S-2T

The TruVision NVR 11 (TVN 11) is a cost effective, network video recorder with up to 16 built-in PoE ports designed to support video streams from IP video cameras.

Model : TVN-1116S-2T

• Up to 4/8/16 built-in PoE ports, for 4/8/16 Ch NVR'S
• Plug-and-play camera installation
• Continuous, motion/alarm triggered or scheduled recording modes
• Event recording
• Fully compatible with TruVision Navigator software
• Audio recording with capable IP cameras
• Reverse playback
• Digital zoom on live and recorded video
• Watermarking for legal video authentication
• Free built-in DDNS service
• Mobile apps allow you to connect remotely via smartphone or tablet to keep an eye on facilities, people or valuables
• Start-up Wizards for quick and easy installation
• 40/80/160 Mbps for incoming streams respectively for 4/8/16 Ch NVR'S
• Up to 6TB of storage  Familiar, user-friendly interface
• Sub-stream for low bandwidth live viewing
• 2TB HDD included

• Up to 4/8/16 Full HD cameras in real-time (30fps), for 4/8/16 Ch NVR'S
• Supports 3rd-party cameras via ONVIF Profile S
• TruVision VGA through 4K (8MPx) (indoor and outdoor)
• TruVision 4/8/16 channel encoders
• PTZ and dome camera control via mouse, front panel and IR remote control

With a total of 40/80/160Mbps of incoming bandwidth available, the NVR 11 can support up to 16 cameras at HD resolution in real-time (30fps) and many other configurations. Flexible bandwidth allocation per channel allows users to maximize recording performance. In addition to browser, software and mobile device management tools, the familiar front panel controls allow for easy operation.
For ease of camera installation, on-board PoE ports support up to 200 watts for 16-channel models, 120 watts for 8-channel models and up to 50 watts for 4-channel models.

IP camera support includes resolutions ranging from standard VGA to 4k (8MPx), including Interlogix and third-party IP camera manufacturers using the ONVIF® protocol. The NVR 11 also supports TruVision encoders for integrating existing analog cameras. With up to 6TB internal HDD storage, the NVR 11 is ideal for smaller installations while still supporting megapixel camera applications.

Recording options include continuous, motion/alarm triggered, or combined scheduled recording modes. Motion recording utilizes an IP cameras built-in motion detection events, and alarms can be triggered from any of the four on-board alarm inputs or from alarm inputs that reside on the IP camera.

Software connectivity allows remote access to the recorders full capabilities via Web browser, TruVision Navigator or TruVision TVRMobile. TruVision TVRMobile also allows for remote device access. Configuration is quick and easy through startup wizards, IP device auto-discovery tools and ezDDNS service.

Downloads

Truvision Network Recorder Datasheet

Warranty

• Truvision cameras comes with a 3 year manufacturer warranty
• Exclusion are labour and freight cost, unless the product is dead on arrival
• All parts will need to be sent away for repair and testing under this warranty period at the buyer's postage expense.
