TruVision NVR 71, 400 Mbps, Max 128 channels, 3U, TVN-7101-000

TruvisionSKU: TVN-7101-000

Sale price$5,864.32

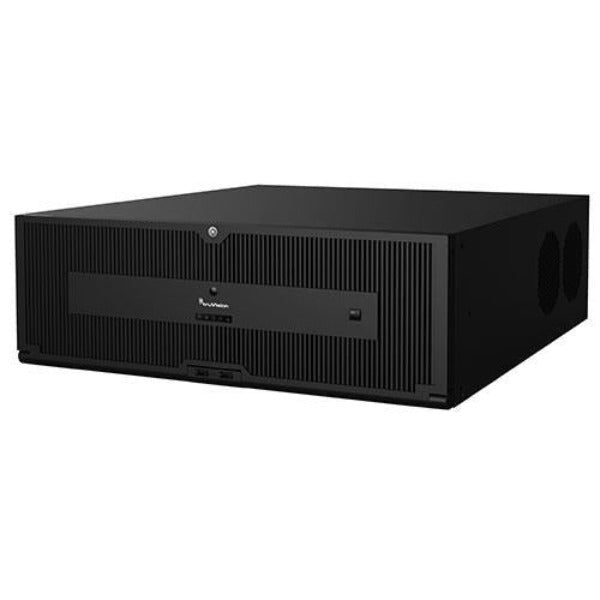

The Interlogix TruVision NVR 71 (TVN 71) is a high-performance Network Video Recorder that supports up to 576 Mbps of incoming camera bandwidth, or up to 128 IP camera channels.

Model : TVN-7101-000

Designed to accommodate large amounts of data, the NVR 71 is equipped with up to 64TB of embedded storage in a RAID configuration, or up to 96TB in a non-RAID configuration.


  • Up to 128 IP channels
  • Up to 576 Mbps camera recording bandwidth
  • IP camera configuration import/export
  • Native TruVision IP camera support
  • 3rd-party IP camera support via Onvif and RTSP Stream
  • Linux embedded operating system configuration
  • Real-time Full HD recording
  • Custom protocol configuration (RTSP streaming)
  • Motion detection, VCA, privacy masking and tamper detection
  • Motion search supported on select TruVision IP camera models
  • RAID 0/1/5/6/10 support
  • Flip-down front panel for easy HDD access, servicing and expansion
  • Network redundancy (NIC, port, network)
  • Dual built-in PSUs with redundancy support
  • Removable dual-fan module
  • Recorder failover functionality (one failover unit per 4 operational recorders)
  • Full browser-based access for live, recording and configuration
  • Free downloadable TruVision Navigator software
  • TVR mobile app for Apple iOS and Android mobile platforms

The NVR 71 delivers reliable performance and innovative features such as RAID, advanced camera settings, failover recording, hard drive grouping, network segregation and a large number of other network redundancy features.

Utilising TruVision Navigator Video Management Software, the NVR 71 can also be managed with a license-free standalone or client/host application. In addition, the browser interface offers full functionality for viewing, playback and configuration.

PLEASE NOTE: Hard-drive must be purchased separately


TVN-71 Datasheet

TVN-71 Quick Start Guide

TVN-71 User Manual
