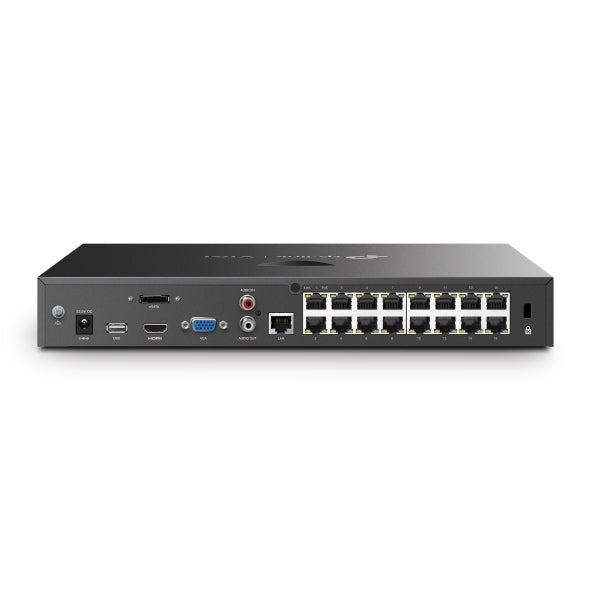

The Vigi 16 Channel Network Video Recorder TP-VIGI NVR2016H-16P, is a plug and play NVR. It offers 8K High Definition live view storage and playback as it is embedded with advanced technology.
High-Capacity NVR with 4K HDMI Output & 16 PoE+ Ports
The VIGI TP-VIGI NVR2016H-16P is a high-performance 16-channel network video recorder (NVR) designed for large-scale surveillance applications. With 4K HDMI video output, H.265+ compression, and dual SATA interfaces supporting up to 16TB storage, this enterprise-grade NVR ensures high-quality video recording, efficient storage management, and seamless remote monitoring.
Equipped with 16× PoE+ ports delivering a 90W total power budget, the VIGI NVR2016H-16P allows direct camera connections, simplifying installation while reducing cabling costs. Featuring real-time live view, 16-channel synchronous playback, and remote monitoring via the VIGI app, this NVR provides comprehensive video security for businesses, retail environments, warehouses, and large properties.
Key Features
16-Channel NVR with 4K Ultra HD HDMI Output
✔ Supports up to 16 IP cameras for real-time monitoring
✔ 4K HDMI & VGA simultaneous output for high-definition video playback
Integrated PoE+ for Seamless Installation
✔ 16× 10/100 Mbps PoE+ Ports with 90W Total PoE Budget
✔ Directly powers PoE cameras, reducing the need for separate power sources
Smart Video Processing & Storage Capacity
✔ Up to 8-ch @ 2MP (25fps) or 4-ch @ 4MP (25fps) Decoding Capability
✔ 2× SATA interfaces, supports up to 16TB HDD storage for long-term video retention
H.265+ Compression for Optimized Storage & Bandwidth
✔ Reduces bandwidth & storage usage while maintaining video quality
Advanced Playback & Bandwidth Management
✔ 16-Channel Synchronous Playback for Efficient Video Review
✔ 80 Mbps Incoming Bandwidth & 60 Mbps Outgoing Bandwidth
Remote Access & Monitoring
✔ Control your security system via the VIGI App & Web Interface
✔ Live view, playback, and system management from anywhere
Ideal Use Cases
✔ Retail Chains & Large Business Security – Monitor multiple locations and high-traffic areas
✔ Industrial & Manufacturing Sites – Secure perimeters, workspaces, and logistics hubs
✔ Warehouses & Storage Facilities – Track inventory and entry points
✔ Gated Communities & Parking Lots – Ensure enhanced security and vehicle monitoring
Remote Access with VIGI App & Security Manager
📲 Monitor live footage remotely
📲 Receive instant alerts on security events
📲 Easily configure recording schedules & playback footage
📲 Manage PoE-powered cameras with a single platform
Why Choose the VIGI 16-Channel PoE+ Network Video Recorder?
The VIGI TP-VIGI NVR2016H-16P provides a robust and scalable surveillance solution for businesses and large-scale security applications. With 4K video output, PoE+ support, advanced playback features, and remote monitoring, this NVR ensures high-quality video recording and real-time event detection.
🛒 Shop Now at CTC Security for the best deals on VIGI NVRs & Security Systems! 🚀
Technical Specifications
Recording & Storage
-
Maximum Camera Channels: 16
-
Decoding Capability: 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps)
-
Synchronous Playback: 16-channel
-
Incoming Bandwidth: 80 Mbps
-
Outgoing Bandwidth: 60 Mbps
-
Storage: 2× SATA Interface (Supports up to 16TB HDD)
Connectivity & PoE Power
-
PoE Ports: 16× 10/100 Mbps PoE+ (IEEE 802.3af/at)
-
PoE Power Budget: 90W
-
Ethernet Interface: RJ45 10/100 Mbps Network Port
Video & Display Output
-
HDMI Output: 4K Ultra HD
-
VGA Output: Simultaneous HDMI/VGA Output
Video Compression
- H.265+ / H.265 / H.264+ / H.264 Supported
Remote Access & Software Integration
- VIGI App & VIGI Security Manager for remote monitoring
- Web Interface & ONVIF Support for third-party camera compatibility
Downloads
