Description
Bosch Solution 3000 Wireless Detector Kit with New Icon Keypad and IP Module
This Bosch Solution 3000 alarm kit combines the updated IUI-SOL-ICON-2 LCD Icon Keypad with two RADION RFPR-12 wireless PIR detectors, a B812 RADION receiver, two RFKF-FBS remote controls and a B426M IP module.
Wireless detectors can help where running detector cable is difficult, including existing homes and multi-storey properties. The control panel, keypad and sirens still require appropriate power and wiring; this is not a completely wireless alarm system.
What's Included

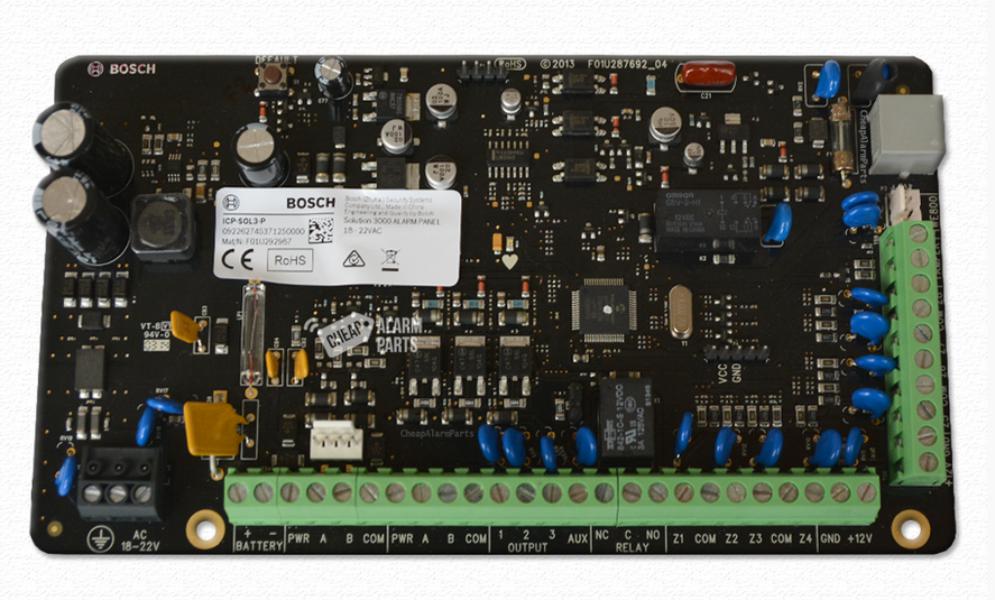

- 1 × Bosch Solution 3000 control panel in a metal cabinet
- 1 × Bosch IUI-SOL-ICON-2 LCD Icon Keypad
- 2 × Bosch RADION RFPR-12 wireless PIR motion detectors
- 1 × Bosch B812 RADION wireless receiver

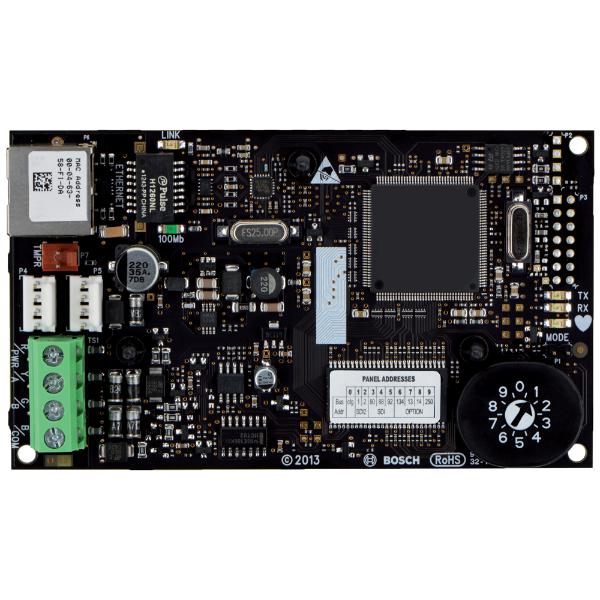

- 1 × Bosch B426M IP module
- 2 × Bosch RADION RFKF-FBS remote controls
- 1 × External siren assembly, standard or slimline according to selection
- 1 × Internal siren, Top Hat or flush-mounted according to selection
- 1 × 12V backup battery
- 1 × Plug pack
- 1 × Battery lead set
- 1 × Tamper switch and bracket
- 10 × 3k3 resistors and 10 × 6k8 resistors
- User manual
- 3 × Warning stickers
Installation cable and cellular communicator are not included.

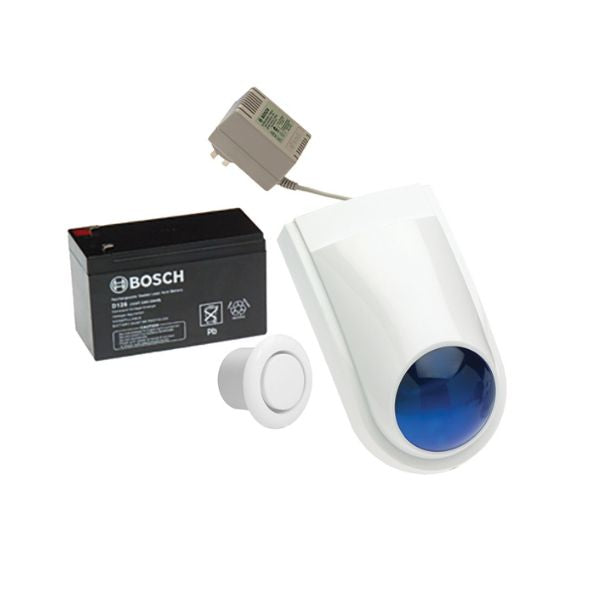

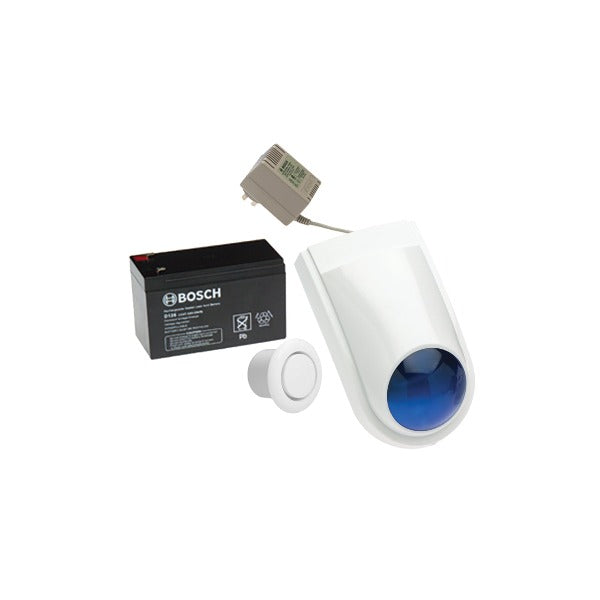

Choose Your Siren Configuration

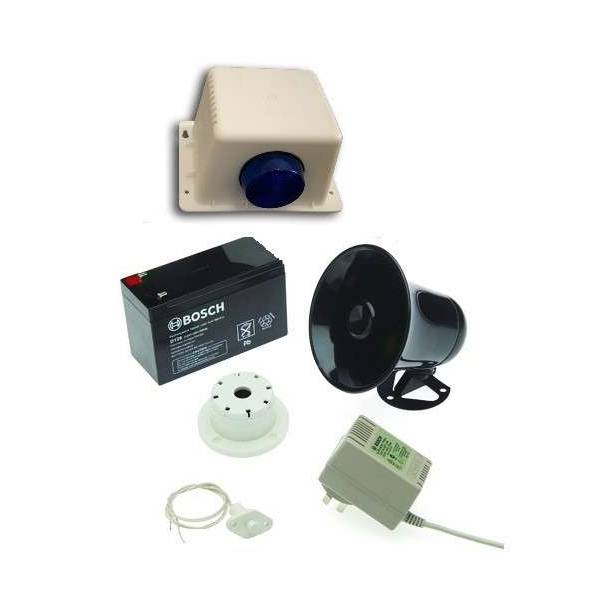

Select a slimline or standard external siren enclosure and a Top Hat or flush-mounted internal siren. F.01U.305.636+F.01U.332.307THST is the Standard box / Top Hat option. Supplied siren hardware follows the selected variant.
Updated IUI-SOL-ICON-2 Keypad
The new keypad replaces the earlier IUI-SOL-ICON in this kit. Its LCD interface uses icons, words and numerical zone indicators for clear everyday system information.
- Display supporting up to 16 zone indicators
- Backlit buttons
- Adjustable keypad volume
- Night-light dim mode
- Magnetic protective cover
- Fire, medical and panic functions when correctly programmed
Available functions depend on the control panel and programming.
RADION Wireless Detection and Remote Controls
The two RFPR-12 detectors communicate through the included B812 receiver and provide coverage of up to 12m × 12m per detector, subject to placement. Detectors support low-battery and tamper supervision.
Pet immunity is rated up to 13kg under the specified installation conditions. Your installer should assess pet movement, mounting position and access to furniture before selecting detector locations.
The two RFKF-FBS remotes provide convenient access to supported alarm functions when enrolled and programmed.
Kit Specifications
| Control panel | Bosch Solution 3000 |
|---|---|
| Keypad | IUI-SOL-ICON-2 wired LCD Icon Keypad |
| Wireless detectors | 2 × RADION RFPR-12 |
| Detector coverage | Up to 12m × 12m per detector |
| Pet immunity | Up to 13kg, subject to correct installation |
| Wireless receiver | B812 RADION |
| Remote controls | 2 × RFKF-FBS |
| Siren options | Standard or slimline external; Top Hat or flush-mounted internal |
| Backup battery and plug pack | Included |
| IP / cellular communicator | Not included |
Installation and Included IP Connectivity
A suitably qualified security technician should install and program the system, check wireless signal strength and configure detectors, remotes and sirens. Wireless range depends on the building layout and construction.
The included B426M IP module connects the alarm to a compatible wired network. With a supported app, compatible panel firmware and correct configuration, it enables remote arming and disarming and notifications for supported alarm events, system troubles and arming activity. A working internet connection is required. Confirm app compatibility, account requirements and any applicable service charges with your installer. Professional monitoring requires a separate service arrangement. Cellular communication and mobile-network backup are not included.
Downloads
Datasheet IUI-SOL-ICON-2 LCD icon keypad
Installation Manual IUI-SOL-ICON-2 LCD icon keypad
Bosch B426 IP module datasheet
Bosch Solution 2000 / 3000 brochure
Bosch RFPR-12 wireless detector datasheet
Solution 3000 wireless keyfob enrolment guide
Solution 3000 wireless repeater enrolment guide
Solution 3000 wireless zone enrolment guide

Detector Brochures
Bosch Wireless Tritech Detector
Bosch Detector Comparison Guide
Smartphone IP Module Brochures and Install Guide
Bosch Alarm Remote Controls Datasheets and Compatibility
Shipping & Delivery Policy
CTC Security
31/1 Prime Drive, Seven Hills, NSW 2147
Australia-Wide Delivery
Shipping Rates
-
Standard Shipping: Flat rate of $18.49 on all orders
-
Express Shipping: Flat rate of $40.00
-
Free Shipping: Automatically applied to all orders over $750
All product prices displayed on our website exclude shipping fees.
Despatch & Handling Time
-
Orders are processed and dispatched Monday to Friday, 8:00 AM – 4:00 PM
-
Please allow 2–4 business days for order processing before dispatch
-
Once dispatched, standard shipping times are typically 3–7 business days depending on your location within Australia
Delivery Information
-
We do not deliver to P.O. Boxes
-
We use trusted courier services including Australia Post and Couriers Please
-
Transit times may vary based on your delivery address and regional courier delays
Order Confirmation & Tracking
-
After placing your order, you will receive an Order Confirmation Email
-
Once your order has shipped, a Tracking Number will be sent to your email
-
If your item is back-ordered or unavailable, we will notify you and void the pre-authorisation on your payment method
-
Orders with items in stock will be charged and shipped within the estimated despatch window
Need Assistance?
If you have any questions about your order, please don’t hesitate to contact our customer service team. Prompt responses to our emails or calls help avoid delays.
1300 552 282 or info@ctccommunications.com.au
Estimate shipping
Bosch Solution 3000 Security Alarms
You may also like
Bosch 3000 FAQ's
Control your alarm system with your Smartphone via the GSM module connection to your alarm system. with the Bosch Solution 2000 and Solution 3000 Alarm System, simple to use with plenty of flexibility. Here are a few comparison points when considering which add on module to choose from. Choosing between the IP Module and the GSM Module for the 2000 and 3000 security system.
The Bosch Solution 3000 IP Alarm systems are the most popular security alarm system kits we sell, for these reason, the advantages of the B426M IP module.
Significantly easier setup, after connecting the module to both the network with a network cable and the main board with the provided 4-wire connector. Setting up at the keypad only takes a minute (2 steps in programming) whereas the GSM has to have an APN code entered using Bosch Programming Software from a PC. No additional fees compared to the GSM which requires a client provided SIM card with a Data plan. Plug-and-Play setup requires no programming when internet providers are changed in the future. Generally speed of alarm connection to mobile is quicker. Features of the GSM moduleB450-M + B443 (GSM Module) Will still be active in the case of a power outage thanks to relying on a mobile network. This is especially useful in certain residences where the internet is unreliable. In situations where an internet connection is not available such as in sheds or garages the GSM module provides an effective way to keep the alarm reporting. We recommend the GSM module if the network on site is too unreliable or non-existent. As the initial setup is a bit more in depth and if being self installed, not as straightforward for a customer to program.
The GSM Module Kits are available in Multiple Keypad style.
When choosing a siren box for your home or business take the following into consideration.
The Larger the Siren box the more likely a thief will spot your siren box and think twice before robbing your home or business.
Slimline Small Siren box- may be covertly hidden by your home eaves or business sign.
Often Strata complexes prefer an installation of a slimline siren box or no siren box at all.
It is possible to choose, no siren box and have your alarm contact you in the event of an alarm, with Smartphone technology, this avoids disruption to your neighbours in the event of a false alarm trigger.
Power consumption, it is a known fact that the new LED siren light will draw less power than the conventional strobe. In short, if you power goes off and you have to rely on back up battery.
The LED siren will last the longest. If it is possible choose the large siren box with multiple indoor sirens to provide the loudest alarm siren and deter potential intruders. Siren boxes with red lights are not available in Australia, blue light is the preferred colour for a siren box.
Motion Sensors
Wireless motion detectors are often use in two storey homes where cabling is difficult or impossible to get to the bottom level, once the construction is completed.
For this reason customers choose wireless motion sensors.
Other difficult places to get to are garages or rooms where cabling would be difficult to get to.
Wireless motion detectors are dependent on battery power, you will need to check them fairly regularly to ensure they are still running to specification. Your alarm system will send notification for a low detector battery every 2-3 years.
Bosch Tritech sensors are a pet friendly alarm sensors specially designed to distinguish between humans and pets and will not go into alarm while your pet is at home and your alarm is active.
The Bosch Solution 3000 offers two types of pet friendly sensors.
Hard Wired Sensor offers Pet Immunity to 45Kg.
Wireless Sensors offer Pet Immunity to 13Kg.
Wireless Tritech Sensors offer Pet Immunity to 45Kg.
The Bosch Solution 3000 Alarm panel supports up to 16 wired zones.
This means you can connect up to 16 wired motion sensors to the panel.
