Description
Bosch Solution 3000 Alarm Kit with 3 Gen 2 TriTech Detectors, New Icon Keypad and IP Module
The Bosch Solution 3000 Alarm System with 3 × Gen 2 TriTech Detectors combines a Solution 3000 control panel with the updated IUI-SOL-ICON-2 LCD Icon Keypad, internal and external sirens, backup battery and plug pack.
Three wired Bosch Gen 2 TriTech detectors provide motion detection for selected rooms and access routes. Selectable pet immunity supports pets up to 45kg when enabled and installed according to the manufacturer’s requirements. Your installer should assess pet size, movement, detector position and access to furniture when planning the installation.
What's Included
- 1 × Bosch Solution 3000 control panel in a metal cabinet
- 1 × Bosch IUI-SOL-ICON-2 LCD Icon Keypad
- 3 × Bosch Gen 2 TriTech detectors (ISC-BDL2-WP12G)
- 1 × External siren assembly in the selected standard or slimline style
- 1 × Internal piezo siren in the selected Top Hat or flush-mounted style
- 1 × 12V 7Ah backup battery
- 1 × Plug pack
- 1 × Bosch B426M IP module
- Instruction manual and user guide
- 1 × Battery lead set
- Tampers for the siren and control panel
- 10 × 3k3 resistors and 10 × 6k8 resistors
- 3 × CTC Security warning stickers
Installation cable is not included. Installation and programming are required.
Choose Your Siren Configuration
Select a standard or slimline external siren enclosure and a Top Hat or flush-mounted internal siren using the product options. The supplied siren hardware follows your selected variant.
F.01U.305.342+F.01U.332.307THST: Standard external siren enclosure with Top Hat internal siren.

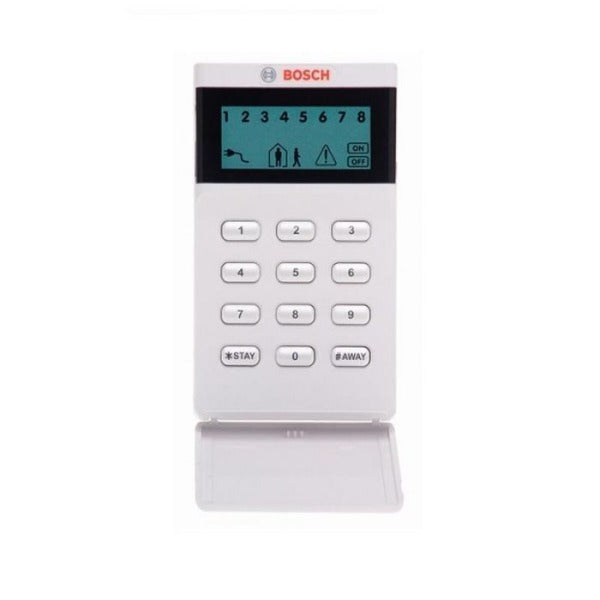

Updated IUI-SOL-ICON-2 Keypad
The new Icon keypad replaces the earlier IUI-SOL-ICON in this kit. Its LCD interface uses icons, words and numerical zone indicators to make everyday system status easy to check.
- Backlit buttons for low-light operation
- Adjustable keypad volume
- Night-light dim mode
- Magnetic protective cover
- Display supporting up to 16 zone indicators
- Fire, medical and panic functions when correctly programmed
The keypad's display capacity does not increase the Solution 3000 panel's zone capacity. Available functions depend on the panel and programming.

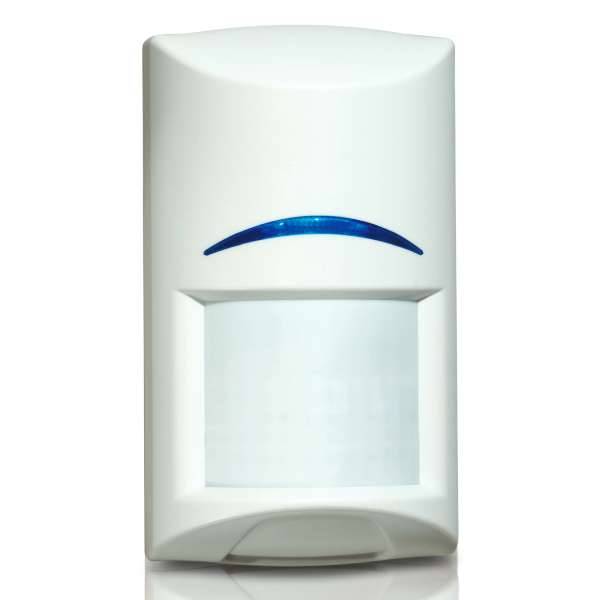

Bosch Gen 2 TriTech Detectors
The three included detectors sense movement within their installed coverage areas. Each offers coverage of up to 12m × 12m, subject to mounting position and room layout.
- Selectable pet immunity up to 45kg, subject to correct installation
- Dynamic temperature compensation
- Self-locking enclosure with integrated bubble level
- Wired connection to the alarm panel
- Pet immunity can be enabled or disabled by the installer
Kit Specifications
| Brand | Bosch |
|---|---|
| Control panel | Solution 3000 |
| Kit reference | S3K-LCD-PIR-3 |
| Keypad | IUI-SOL-ICON-2 wired LCD Icon Keypad |
| Detectors | 3 × Gen 2 TriTech, ISC-BDL2-WP12G |
| Detector coverage | Up to 12m × 12m per detector |
| Pet immunity | No |
| External siren | Standard or slimline, according to selection |
| Internal siren | Top Hat or flush-mounted, according to selection |
| Backup battery | 12V 7Ah |
| Plug pack | Included |
| Installation cable | Not included |
| IP / cellular communicator | Not included |
Installation and Connectivity
A suitably qualified security technician should install and program the system, position the detectors and configure STAY and AWAY operation to suit the property.
The included Bosch B426M IP module connects the alarm to a compatible wired network. With a supported app, compatible panel firmware and correct configuration, it enables remote arming and disarming and notifications for supported alarm events, system troubles and arming activity. A working internet connection is required. Confirm app compatibility, account requirements and any applicable service charges with your installer. Professional monitoring requires a separate service arrangement. A cellular communicator and mobile-network backup are not included.
Downloads
Datasheet IUI-SOL-ICON-2 LCD icon keypad
Installation Manual IUI-SOL-ICON-2 LCD icon keypad
Bosch B426 IP module datasheet
Bosch Solution 3000 installation manual
Bosch Solution 3000 / 3000 brochure
Bosch TriTech detector datasheet
Bosch Gen 2 detector comparison guide

Detector Brochures
Bosch Wireless Tritech Detector
Bosch Detector Comparison Guide
Smartphone IP Module Brochures and Install Guide
Bosch Alarm Remote Controls Datasheets and Compatibility
Shipping & Delivery Policy
CTC Security
31/1 Prime Drive, Seven Hills, NSW 2147
Australia-Wide Delivery
Shipping Rates
-
Standard Shipping: Flat rate of $18.49 on all orders
-
Express Shipping: Flat rate of $40.00
-
Free Shipping: Automatically applied to all orders over $750
All product prices displayed on our website exclude shipping fees.
Despatch & Handling Time
-
Orders are processed and dispatched Monday to Friday, 8:00 AM – 4:00 PM
-
Please allow 2–4 business days for order processing before dispatch
-
Once dispatched, standard shipping times are typically 3–7 business days depending on your location within Australia
Delivery Information
-
We do not deliver to P.O. Boxes
-
We use trusted courier services including Australia Post and Couriers Please
-
Transit times may vary based on your delivery address and regional courier delays
Order Confirmation & Tracking
-
After placing your order, you will receive an Order Confirmation Email
-
Once your order has shipped, a Tracking Number will be sent to your email
-
If your item is back-ordered or unavailable, we will notify you and void the pre-authorisation on your payment method
-
Orders with items in stock will be charged and shipped within the estimated despatch window
Need Assistance?
If you have any questions about your order, please don’t hesitate to contact our customer service team. Prompt responses to our emails or calls help avoid delays.
1300 552 282 or info@ctccommunications.com.au
Estimate shipping
Bosch Solution 3000 Security Alarms
You may also like
Bosch 3000 FAQ's
Control your alarm system with your Smartphone via the GSM module connection to your alarm system. with the Bosch Solution 2000 and Solution 3000 Alarm System, simple to use with plenty of flexibility. Here are a few comparison points when considering which add on module to choose from. Choosing between the IP Module and the GSM Module for the 2000 and 3000 security system.
The Bosch Solution 3000 IP Alarm systems are the most popular security alarm system kits we sell, for these reason, the advantages of the B426M IP module.
Significantly easier setup, after connecting the module to both the network with a network cable and the main board with the provided 4-wire connector. Setting up at the keypad only takes a minute (2 steps in programming) whereas the GSM has to have an APN code entered using Bosch Programming Software from a PC. No additional fees compared to the GSM which requires a client provided SIM card with a Data plan. Plug-and-Play setup requires no programming when internet providers are changed in the future. Generally speed of alarm connection to mobile is quicker. Features of the GSM moduleB450-M + B443 (GSM Module) Will still be active in the case of a power outage thanks to relying on a mobile network. This is especially useful in certain residences where the internet is unreliable. In situations where an internet connection is not available such as in sheds or garages the GSM module provides an effective way to keep the alarm reporting. We recommend the GSM module if the network on site is too unreliable or non-existent. As the initial setup is a bit more in depth and if being self installed, not as straightforward for a customer to program.
The GSM Module Kits are available in Multiple Keypad style.
When choosing a siren box for your home or business take the following into consideration.
The Larger the Siren box the more likely a thief will spot your siren box and think twice before robbing your home or business.
Slimline Small Siren box- may be covertly hidden by your home eaves or business sign.
Often Strata complexes prefer an installation of a slimline siren box or no siren box at all.
It is possible to choose, no siren box and have your alarm contact you in the event of an alarm, with Smartphone technology, this avoids disruption to your neighbours in the event of a false alarm trigger.
Power consumption, it is a known fact that the new LED siren light will draw less power than the conventional strobe. In short, if you power goes off and you have to rely on back up battery.
The LED siren will last the longest. If it is possible choose the large siren box with multiple indoor sirens to provide the loudest alarm siren and deter potential intruders. Siren boxes with red lights are not available in Australia, blue light is the preferred colour for a siren box.
Motion Sensors
Wireless motion detectors are often use in two storey homes where cabling is difficult or impossible to get to the bottom level, once the construction is completed.
For this reason customers choose wireless motion sensors.
Other difficult places to get to are garages or rooms where cabling would be difficult to get to.
Wireless motion detectors are dependent on battery power, you will need to check them fairly regularly to ensure they are still running to specification. Your alarm system will send notification for a low detector battery every 2-3 years.
Bosch Tritech sensors are a pet friendly alarm sensors specially designed to distinguish between humans and pets and will not go into alarm while your pet is at home and your alarm is active.
The Bosch Solution 3000 offers two types of pet friendly sensors.
Hard Wired Sensor offers Pet Immunity to 45Kg.
Wireless Sensors offer Pet Immunity to 13Kg.
Wireless Tritech Sensors offer Pet Immunity to 45Kg.
The Bosch Solution 3000 Alarm panel supports up to 16 wired zones.
This means you can connect up to 16 wired motion sensors to the panel.
