Hikvision 2MP, DS-2PT3326IZ-DE3(2.8-12mm)(2mm) 2MP PanoVu Triple-Directional PanoVu Mini Camera

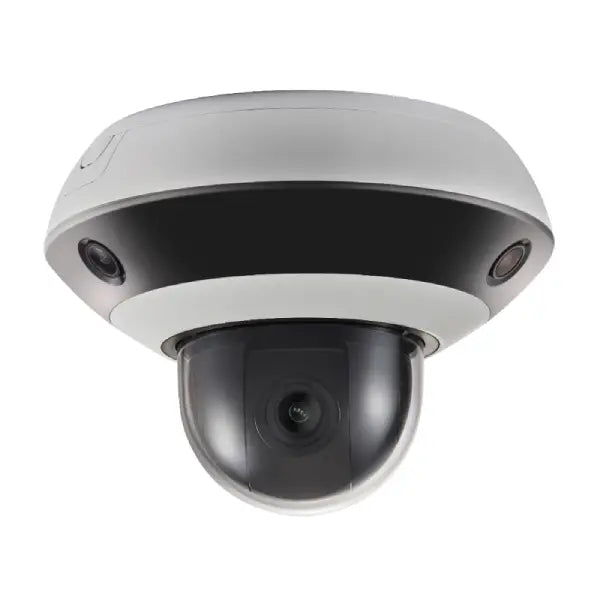

Hikvision 2MP Network Dome Camera PTZ Mini PanoVu – DS-2PT3326IZ-DE3 (2.8-12mm)(2mm)

360° Panoramic Surveillance with Integrated PTZ Functionality

The Hikvision DS-2PT3326IZ-DE3 (2.8-12mm) PTZ Mini PanoVu Dome Camera is a high-performance, triple-lens network camera that captures 360° panoramic images while providing close-up PTZ functionality. This innovative multi-lens system offers an extended 240° field of view, making it an ideal surveillance solution for wide-area monitoring in indoor environments such as corridors, warehouses, intersections, and retail spaces.

With built-in IR illumination for night vision up to 15 meters, H.265+ compression for efficient storage, and IP66-rated weather resistance, this camera ensures continuous surveillance with superior image quality and minimal bandwidth consumption.

Key Features

Advanced 360° & PTZ Monitoring for Maximum Coverage

✔ Triple-Lens Design – Captures 240° panoramic views with three lenses in one camera
✔ Integrated PTZ Functionality – Provides detailed close-up images alongside panoramic footage
✔ Manually Adjustable Lenses – Customizable field of view for tailored surveillance needs

Superior Imaging Performance in All Conditions

✔ 2MP High-Resolution Video – Clear and sharp imaging for real-time monitoring
✔ Excellent Low-Light Performance – Infrared night vision up to 15m for 24/7 surveillance
✔ H.265+/H.264 Compression – Efficient storage usage & reduced bandwidth consumption

Built for Versatile Indoor & Outdoor Surveillance

✔ IP66-Rated for Weather Resistance – Durable for outdoor environments
✔ IR Night Vision up to 15m – Captures clear footage even in zero-light conditions
✔ Ideal for Large Indoor Spaces – Perfect for shopping centers, warehouses, hallways, and intersections

Ideal Use Cases:

✔ Retail & Shopping Centers – Provides wide-area coverage for theft prevention
✔ Warehouses & Logistics Hubs – Monitors large storage areas with minimal blind spots
✔ Corridors & Hallways – Reduces the need for multiple cameras with wide panoramic coverage
✔ Traffic Intersections & Public Spaces – Enhances situational awareness in high-traffic zones

Technical Specifications:

Camera Performance

• Image Sensor:
  • [Panoramic Channel] Three 1/2.8" Progressive Scan CMOS
  • [PTZ Channel] 1/2.8" Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080 (2MP Full HD)
• Minimum Illumination:
  • Color: 0.05 Lux @ (F2.0, AGC ON)
  • B/W: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Day/Night Mode: IR Cut Filter

Lens & Field of View

• Focal Length:
  • [Panoramic Channel]: 2mm
  • [PTZ Channel]: 2.8-12mm Motorized Zoom
• Field of View (FOV):
  • [Panoramic Channel]:
    • Horizontal: 128.5° × 3
    • Vertical: 75.7°
    • Diagonal: 144°
  • [PTZ Channel]:
    • Horizontal: 120° to 56.6° (Wide-Tele)
    • Vertical: 61.8° to 31.7° (Wide-Tele)
    • Diagonal: 149° to 65° (Wide-Tele)

Illumination & Night Vision

• Infrared (IR) Night Vision: Up to 15m
• Smart IR Technology: Yes

Network & Storage

• Compression Technology: H.265+/H.264 for efficient bandwidth usage
• Network Interface: 10M/100M Ethernet (RJ45)
• MicroSD Card Storage: Up to 256GB (local backup)

Weather & Durability

• IP66-Rated for Outdoor Protection
• Impact Protection: IK10 vandal-resistant housing

🔗 View Full Specifications on the Official Hikvision Website

Remote Access with Hik-Connect App

Gain complete control over your security system with the Hik-Connect app. This user-friendly platform allows you to:
📲 Monitor live footage remotely
📲 Receive instant alerts on security events
📲 Control strobe light & audio alarm
📲 Manage settings anytime, anywhere

Why Choose the Hikvision 2MP Network Dome Camera PTZ Mini PanoVu?

The Hikvision DS-2PT3326IZ-DE3 (2.8-12mm) PanoVu PTZ Dome Camera is a powerful 2-in-1 surveillance solution, combining panoramic wide-area coverage with precision PTZ zoom. Its 360° monitoring, AI-driven analytics, and low-light performance make it an ideal choice for businesses, warehouses, and public spaces looking for comprehensive security.

Hikvision PTZ Camera Comparison Guide
