Description

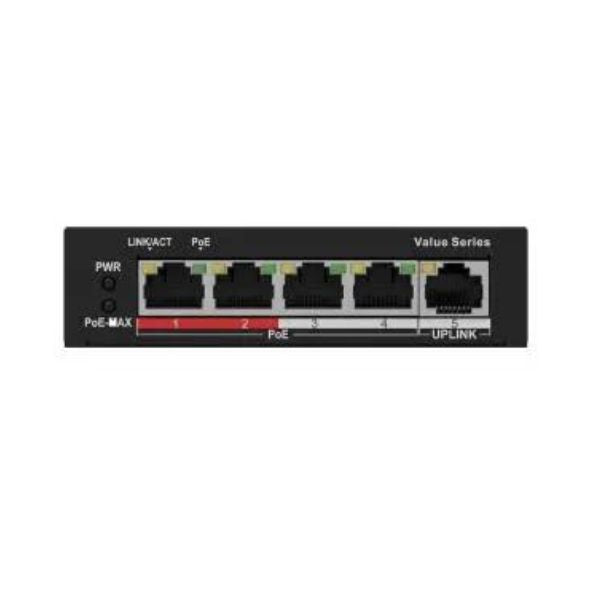

The HiLook Network Switch 4 Port POE (Model:NS-0105P-35) is an unmanaged switch equipped with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port.
Model: NS-0105P-35
Features
- Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port
- All ports support 6 kV lighting protection
- 35 W PoE power budget
- Maximum transmission distance is 250 meters
- MAC address auto learning and auto aging
Specifications
General
- ShellMetal material, fan-free design
- Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Power Supply48 VDC, 0.8 A
- Storage Humidity5% to 95% (no condensation)
- Net Weight0.2 kg (0.4 lb)
- Gross Weight0.48 kg (1.06 lb)
- Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
- Operating Humidity5% to 95% (no condensation)
- Power Consumption In Idle3 W
Network Parameters
- Port Number4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding ModeStore-and-forward switching
- Working ModeStandard mode (default); Extend mode
- MAC Address Table1 K
- Switching Capacity1 Gbps
- Packet Forwarding Rate0.744 Mpps
- Internal Cache448 Kbits
- High Priority PortsPorts 1 to 2
- Ports For Long-Distance TransmissionPorts 1 to 4
PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power PinSupports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
- PoE PortPorts 1 to 4
- Max. Port Power30 W
- PoE Power Budget35 W
- Max. Power Consumption38 W
