Hills Reliance NX Remote Control Kit with 2 x Stainless steel remotes, S1890A

Save $61.23
HillsSKU: RSI-02

Sale price$97.17 Regular price$158.40

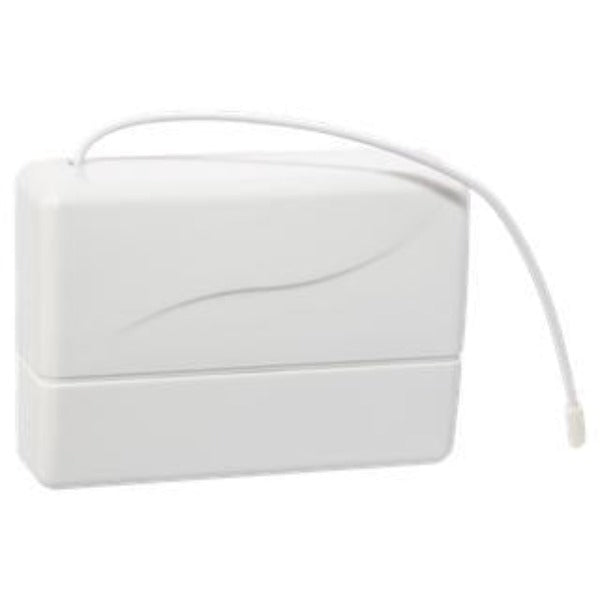

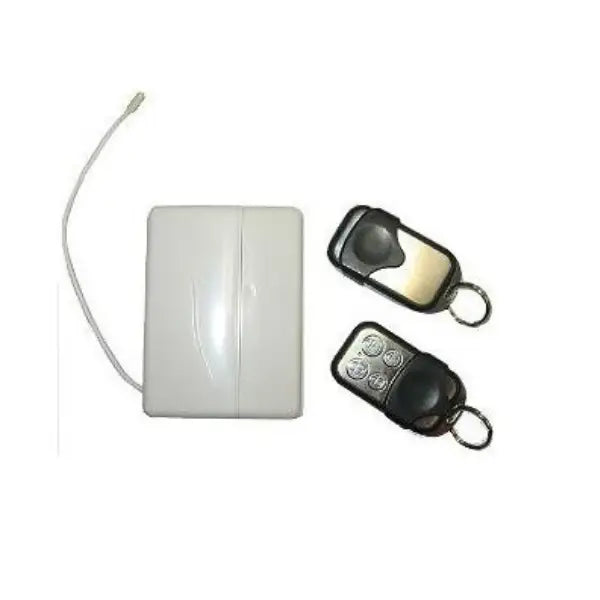

The Hills Reliance NX Remote Control Kit comes complete with wireless receiver and two x stainless steel remotes with slide cover. Compatible with the Hills alarm control panels.

Model: S1890A

NX Remote Control Kit with 2 x Stainless steel remotes

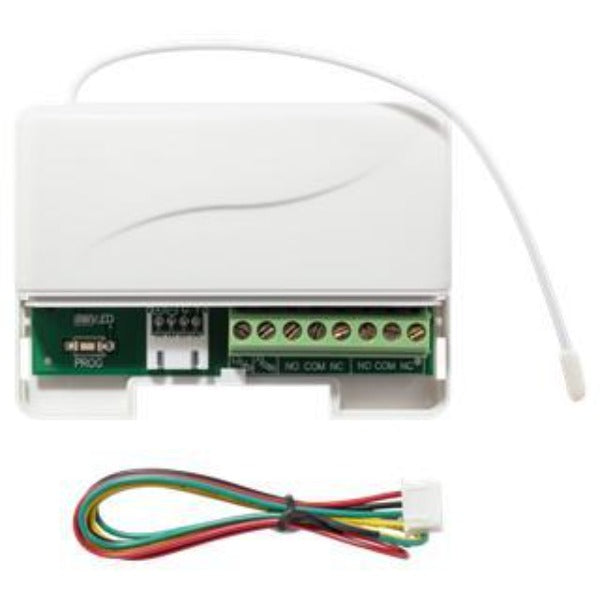

RSI02 remote kit comprises one receiver, two pre-learned remotes, a 4-wire harness and a quick mounting plate. Through Jumper Setting,

It can be set to work with NX/Reliance alarm panels to operate Arm (away/stay), Disarm and Panic via the keypad data bus. The receiver is also equipped with two relays that can be used to operate other devices such as garage door



  • Operating Range: A minimum of 50m (open air)
  • 433.92 MHz Keeloq rolling code: 4.3 billion combination; SAW resonator (filter) locked (+/- 75KHz)
  • Transmitting power: <10mW
  • Operating Voltage: 6 V powered by 2 x 3 VDC lithium batteries
  • Battery Life: 3 years under normal operating conditions
  • Current: <1uA standby; 12mA max.
  • Low battery indication: LED on the remote flashes when the button is pressed
  • Auto shutoff: the remote stops transmitting if a button gets pressed for 25s.
  • Operating voltage: 9-15VDC; Current: 10mA Standby; 100mA max.

  • Data – Arm (away/stay), Disarm and Panic. 4-wire harness provided
  • Two programmable relay outputs; SPDT; rating 1A 24VDC/120VAC
  • Chirp & Flash “Switch to Ground” outputs for Arm and Disarm notification
  • Standard capacity: 25 remotes
  • Mounting plate provided for quick receiver installation

Hills Reliance Alarm remote Kit Compatible with:

  • Hills Reliance 8
  • Hills Reliance 12
  • Hills Reliance 128
  • DAS alarm systems
  • Hills Reliance NX4 alarms
  • Hills Reliance NX8 alarms
  • Hills Reliance NX16 alarm systems

Shop CTC Security for best deals on Hills Security Alarm Systems


NX Remote Control Kit S1890A Date Sheet
